| Prod Model: |
GM-100K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: 2720*1882*1651mm: |
Cooling Type: Air Cooling |
| Structure: |
Integral Type |
| Application: |
Industrial |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
Without Filtering Device |
| Automatic Cleaning Device: |
Without Automatic Cleaning Device |
| Ice Shape: |
Flake Ice |
| Control: |
PLC |
| Power: |
38.2kw |
| Material: |
Carbon Steel |
Product Description

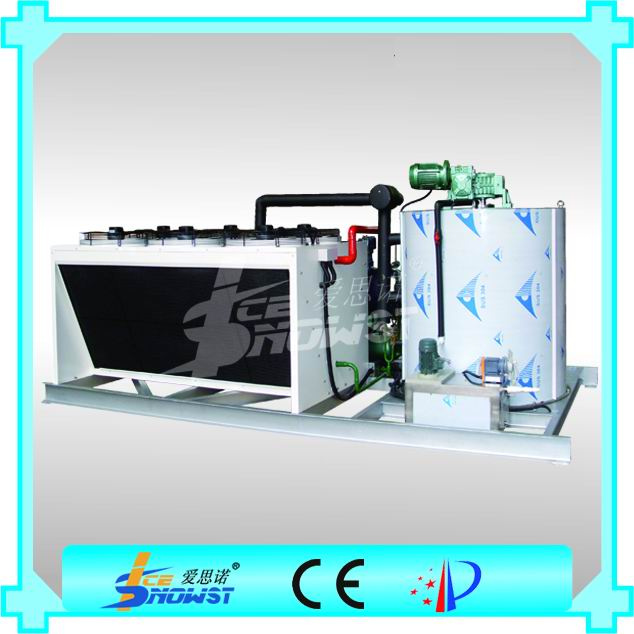

Icesnow ice flake makers / ice flake making machinesIce flake maker is a type of ice making machine, widely been applied in the industrial and commercial fields. Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food at the lowest rate and maintain the fresh of the vegetables and seafood products.
Flake Ice Machine AdvantageA. Low failure and long working life: The System always runs well more than 35000 hours
B. Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.
C. High efficiency & capacity
D. Superior safety and reliability: Dynamic micro-computer control system
E. Low energy consumption
Flake ice machine specificationsMaterial of the evaporator: Stainless steel / carbon steel
Flake ice machine daily output: 350kg/24h~50000kg/24h
Flake ice temperature: -5 Celsius~-8 Celsius
Flake ice thickness: 1.8-2.5mm
Refrigerant: R22 / R407c / R404A
Cooling type: Air cooling / water cooled / evaporative
Reliable & famous compressor: Bizter / Danfoss / Copeland / Hanbell
| Model | daily output
(kg/24h) | Bin capacity
(kg) | Ref. capacity (kcal/h) | Evaporating Temperature | Total power
(kw) | Power supply | Refrigeration | Cooling mode | Unit Dimension L*W*D(mm) | Bin size
L*W*D(mm) | weight (exclude bin)(kg) |
| GM-10k | 1000 | 400 | 4700 | - 20 degrees | 4.5 | 3p/380/50Hz | R404A | air cooling | 1290*970*912 | 1330*1250*1210 | 295 |
| GM-12k | 1200 | 400 | 5640 | - 20 degrees | 5 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 340 |
| GM-15k | 1500 | 400 | 7050 | - 20 degrees | 8.3 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 360 |
| GM-20k | 2000 | 500 | 9400 | - 20 degrees | 9.7 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 | 1520*1320*1300 | 420 |
| GM-25k | 2500 | 500 | 11750 | - 20 degrees | 10.2 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 | 1520*1320*1300 | 440 |

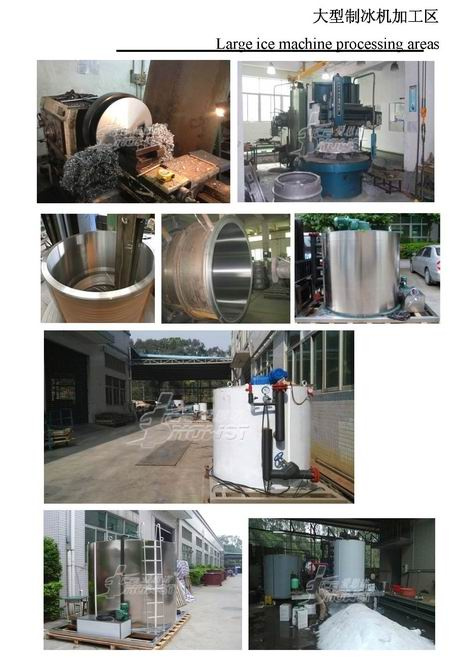

Icesnow factory tour
Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.
Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.
First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
