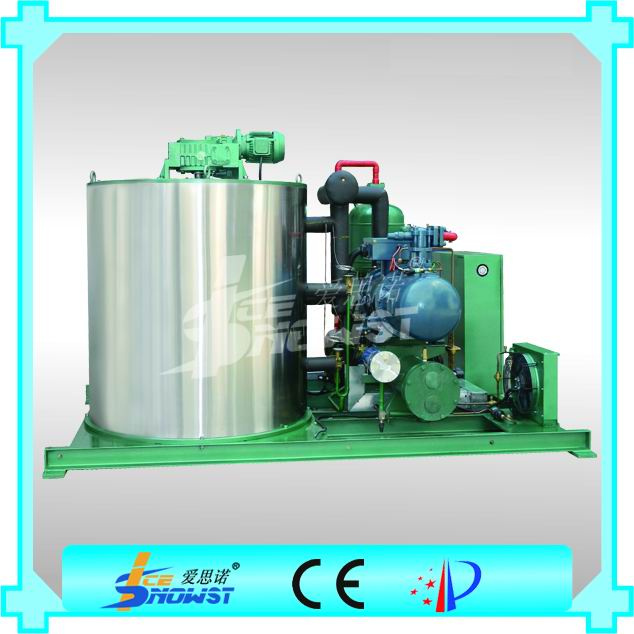

2015 Icesnow High Quality Flake Ice Maker (10t/24h)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GM-100K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of The Evaporator: |
Stainless Steel or Carbon Steel |
| Refrigerant: |
R507/R404A |
| Export Markets: |
Global |
| Quality: |
Top Quality and Superior Perfomance |
| Cooling Type: |
Air Cooling/Water Cold/Evaporative |
| Power Supply: |
3pH/380V/50Hz |
| Certification: |
CCC |
| Condition: |
New |
Product Description
Product Description
Features:1). Daily output (kg/24hrs): 600
2). Compressors: Famous brands compressor Bizter, Danfoss, Copeland, Hanbell
3). Refrigerant: R404A/R507

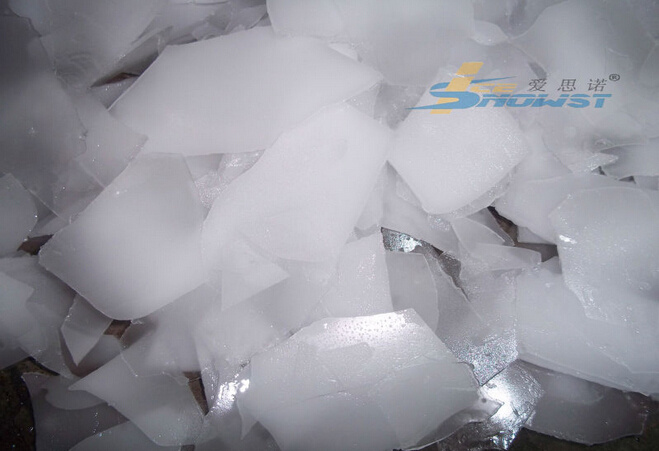

4). Flake ice thickness(mm): 1.5-2.2
5). Cooling type: Air cooling or water cooled or evaporativeBefore leaving our factory every unit is tested to meet specification parameters.1). Units from 0.35 - 2.5 tons come with danfoss compressors.
2). Units from 3 - 12 tons come with Bitzer screw compressors
3). Units from 15 - 50 tons come with Hanbell compressorsThree different condenser alternatives are offered:1). Air cooled condenser
2). Evaporative condenser
3). Water cooled condensorApplication:1). Supermark. Et preservation: Keep the food and vegetable fresh and beautiful.
2). Fishery industry: Keeping Fish fresh during sorting, shipping and retailing,
3). Slaughtering industry: Maintain temperature and keep the meat fresh.
4). Concrete construction: Reduce the temperature of concrete during mixing, making the concrete more easy to composite.Some key benefits of Recom Ice Systems Industrial Flake Ice Machines:1). High energy efficiency year around because the ice drum is made of a special high heat transfer alloy2). Excellent reliability. Most of the cooling system components are sourced from overseas top manufacturers.
3). Corrosion resistance: Drum cladding, the ice knife and the internal rotating mechanism are made of stainless steel, the steel unit frame is galvanized.
4). High thermal energy storage due to dry sub cooled flake ice, ambient temperature25 degree, water temperature 16 degree
5). Possibility to change ice characteristics with the standard salt injection system
6). Standard and tropical (high temperature) execution available
| Model | daily output | Bin capacity | Ref. capacity (kcal/h) | Evaporating Temperature | Total power | power supply | refrigeraion | Cooling model | Unit Dimension L*W*D(mm) |
| (kg/24h) | (kg) | kw |
| GM-035K | 350 | 200 | 1645 | -20 degrees | 2.5 | 3p/380V/50Hz | R404A | air cooling | 1050*740*780 |
| GM-04K | 400 | 300 | 1880 | -20 degrees | 2.68 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 |
| GM-05K | 500 | 300 | 2350 | -20 degrees | 2.7 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 |
| GM-06K | 600 | 300 | 2820 | -20 degrees | 3 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 |
| GM-08K | 800 | 300 | 3760 | -20 degrees | 3.5 | 3p/380/50Hz | R404A | air cooling | 1235*740*862 |
| GM-10K | 1000 | 400 | 4700 | -20 degrees | 4.5 | 3p/380/50Hz | R404A | air cooling | 1290*970*912 |
| GM-12K | 1200 | 400 | 5640 | -20 degrees | 5 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 |
| GM-15K | 1500 | 400 | 7050 | -20 degrees | 8.3 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 |
| GM-20K | 2000 | 500 | 9400 | -20 degrees | 9.7 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 |
| GM-25K | 2500 | 500 | 11750 | -20 degrees | 10.2 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 |
| GM-30K | 3000 | 1200 | 14100 | -20 degrees | 11.2 | 3p/380/50Hz | R404A | air cooling | 1800*1135*1308 |
| GM-40K | 4000 | 2500 | 18800 | -20 degrees | 15.1 | 3p/380/50Hz | R404A | Water cold | 1650*1555*1308 |
| GM-50K | 5000 | 3000 | 23500 | -20 degrees | 18 | 3p/380/50Hz | R404A | Water cold | 1650*1555*1580 |
| GM-80K | 8000 | 5000 | 37600 | -20 degrees | 30.5 | 3p/380/50Hz | R404A | Water cold | 2230*1890*1470 |
| GM-100K | 10000 | 6000 | 47000 | -20 degrees | 31 | 3p/380/50Hz | R404A | Water cold | 2230*1890*1640 |
| GM-120K | 12000 | 8000 | 56400 | -20 degrees | 42.1 | 3p/380/50Hz | R404A | Water cold | 2480*2000*1780 |
| GM-150K | 15000 | 8000 | 70500 | -20 degrees | 56 | 3p/380/50Hz | R22 | Water cold | 3400*2080*1880 |
| GM-200K | 20000 | 12000 | 93500 | -20 degrees | 63 | 3p/380/50Hz | R22 | Water cold | 3400*2080*2300 |
| GM-250K | 25000 | 15000 | 116875 | -20 degrees | 78.3 | 3p/380/50Hz | R22 | Water cold | 3400*2080/2600 |
| GM-300K | 30000 | 15000 | 141000 | -20 degrees | 102.5 | 3p/380/50Hz | R22 | Water cold | 4580*2770*2400 |
| GM-400K | 40000 | 20000 | 188000 | -20 degrees | 124.3 | 3p/380/50Hz | R22 | Water cold | 4580*2770*3000 |
| GM-500K | 50000 | 25000 | 235000 | -20 degrees | 147.4 | 3p/380/50Hz | R22 | Water cold | 4580*2770*3500 |
Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.
Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.
First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
