| Prod Model: |
GM-100K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of The Evaporator: |
Stainless Steel or Carbon Steel |
| Quality: |
Top Quality and Superior Perfomance |
| Voltage: |
3p/380V/50Hz |
| Refrigerant: |
R22/R407c/R404A |
| Cooling Type: |
Air Cooling or Water Cooled |
| Ice Shape: |
Shell |
| Control: |
Electric |
| Power: |
<200W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Industrial |
| Condensing Mode: |
Water-Cooled |
| Filtering Device: |
Without Filtering Device |
| Automatic Cleaning Device: |
Without Automatic Cleaning Device |
Product Description

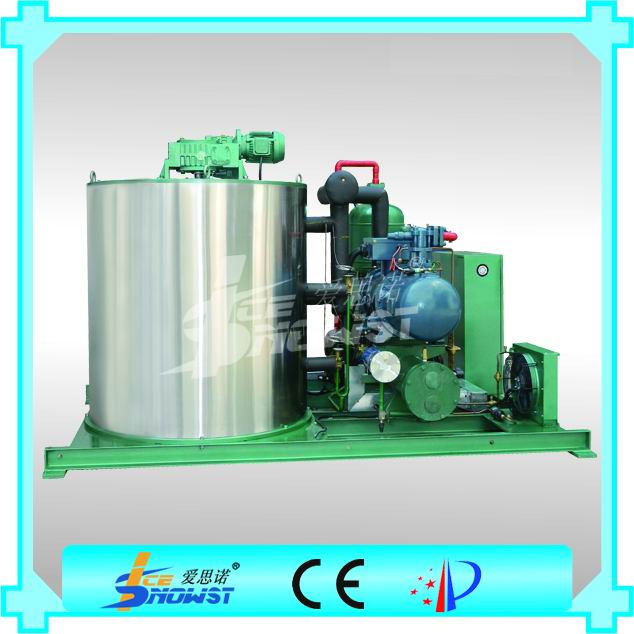

Icesnow ice flake machine / ice flake maker
Feather:
1. Flake ice is a type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food at the lowest rate and maintain the fresh of vegetables, fruits and seafood. (control and maintain temperature)
2. Flake ice has Large contact area with low cost of producing, flake ice can cool down the temperature at a fast speed and convenient for delivery, Which widely used in both commercial and industrial fields.
Specifications
1. Material of the evaporator: Stainless steel / carbon steel
2. Flake ice machine Daily output: 500kg/24h_50000kg/24h
3. Flake ice temperature: -5 Celsius~-8 Celsius
4. Flake ice thickness: 1.8-2.5mm
5. Refrigerant: R22 / R407c / R404A
6. Cooling type: Air cooling / water cooled / evaporative
7. Reliable & famous compressor: Bizter / Danfoss / Copeland / Hanbell
Advantages:
1. Perfect in cooling food;
Flake ice is dry and crispy, so it hardly has any shape edges, in food cooling process, which has made it the best cooling material. It reduces the damage to food to the lowest rate.
2. Thoroughly mixing;
Flake ice can become water quickly through the rapid heat exchanging with products, thus supplying the needed moisture to cool the products.
3. Small footprint, low noise, energy-saving, environmental friendly.
Application:
1. Fishing, Sea food process
Sea water flake ice machine can make ice directly from the sea water, and ice can be used in fast cooling of fish and other sea products.
2. Vegetables distribution and bakery, poultry fresh-keeping
Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.
3. Medicine
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveliness.
4. Concrete Cooling
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight.
| Model | daily output
(kg/24h) | Bin capacity
(kg) | Ref. capacity (kcal/h) | Evaporating Temperature | Total power
(kw) | Power supply | Refrigeration | Cooling mode | Unit Dimension L*W*D(mm) | Bin size
L*W*D(mm) | weight (exclude bin)(kg) |
| GM-05k | 500 | 300 | 2350 | -20 degrees | 2.7 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 | 1280*1050*1060 | 205 |
| GM-06k | 600 | 300 | 2820 | -20 degrees | 3 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 | 1280*1050*1060 | 215 |
| GM-08k | 800 | 300 | 3760 | -20 degrees | 3.5 | 3p/380/50Hz | R404A | air cooling | 1235*740*862 | 1280*1050*1060 | 240 |
| GM-10k | 1000 | 400 | 4700 | -20 degrees | 4.5 | 3p/380/50Hz | R404A | air cooling | 1290*970*912 | 1330*1250*1210 | 295 |
| GM-12k | 1200 | 400 | 5640 | -20 degrees | 5 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 340 |
| GM-15k | 1500 | 400 | 7050 | -20 degrees | 8.3 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 | 1330*1250*1210 | 360 |
| GM-20k | 2000 | 500 | 9400 | -20 degrees | 9.7 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 | 1520*1320*1300 | 420 |
Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.
Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.
First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
