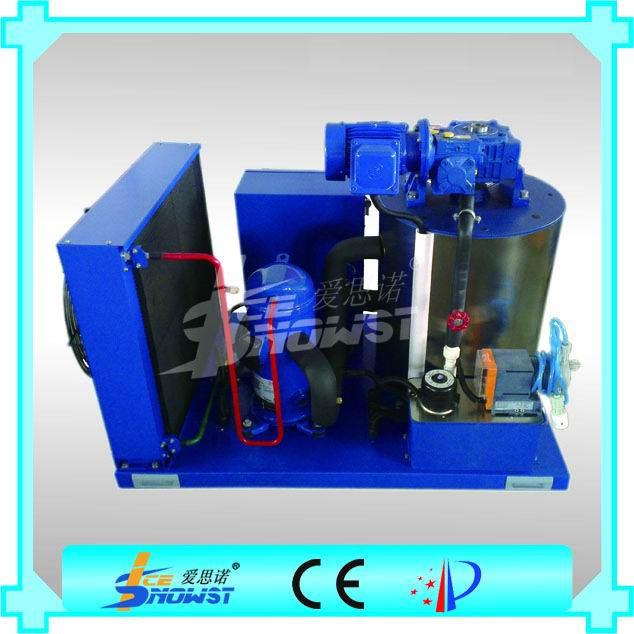

High Quality Icesnow Flake Ice Maker (1ton/day)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
GM-10K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of The Evaporator: |
Stainless Steel or Carbon Steel |
| Refrigerant: |
R22/R134A/R404A |
| Export Markets: |
Global |
| Quality: |
Top Quality and Superior Perfomance |
| Cooling Type: |
Air Cooling/Water Cold/Evaporative |
| Power Supply: |
3pH/380V/50Hz |
| Ice Shape: |
Flake Ice |
| Certification: |
CCC |
| Condition: |
New |
Product Description
Product Description
1. Icesnow ice system
Elaborately designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2. Varied types
The daily production ranging from 350KG to 50000KG, greatly satisfy the requirements of varied clients. The data based on 25° C ambient temp. And 16° C water inlet temperature
3. Three different condenser alternatives are offered:
1). Air cooled condenser
2). Evaporative condenser
3). Water cooled condensor
4. Before leaving our factory every unit is tested to meet specification parameters.
1). Units from 0.35 - 2.5 tons come with Famous brands danfoss compressors.
2). Units from 3 - 12 tons come with Bitzer screw compressors
3). Units from 15 - 50 tons come with Hanbell compressors
5. Application:
1). Supermark. Et preservation: Keep the food and vegetable fresh and beautiful.
2). Fishery industry: Keeping Fish fresh during sorting, shipping and retailing,
3). Slaughtering industry: Maintain temperature and keep the meat fresh.
4). Concrete construction: Reduce the temperature of concrete during mixing, making the concrete more easy to composite.
6. Flake Ice Machines Has Following Feature:
1). Safe operation and good reliability
All accessories and parts of Icesnow system are adopted of top-level products of western or local markets, greatly enhance the products quality.
2). Easy operation
The digital thermoswitch remotely indicate and control the ice temp., and the key-press operation requires no professional staff to run the machine.
3). Easy installation
Cooling system and cylinder are easy for installation.
4). The ice Skates is a screw scraper, features low resistance, low consumption, no noise.
5). The cooling system and cylinder is automatically controlled by micro-computer, and has protection for phase lack, reverse, H/low pressure and bin full which makes the operation more reliable and steady, reduced the possibility of damage, easy for maintenance.
6). The cylinder is made of high grade 304 stainless steel, repeatly processed by exactitude equipment, and welded in automatic argon-arc welding, maintaining good precision and intensity.
| Model | daily output | Bin capacity | Ref. capacity (kcal/h) | Evaporating Temperature | Total power | power supply | refrigeraion | Cooling model | Unit Dimension L*W*D(mm) |
| (kg/24h) | (kg) | kw |
| GM-035K | 350 | 200 | 1645 | -20 degrees | 2.5 | 3p/380V/50Hz | R404A | air cooling | 1050*740*780 |
| GM-04K | 400 | 300 | 1880 | -20 degrees | 2.68 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 |
| GM-05K | 500 | 300 | 2350 | -20 degrees | 2.7 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 |
| GM-06K | 600 | 300 | 2820 | -20 degrees | 3 | 3p/380/50Hz | R404A | air cooling | 1235*740*780 |
| GM-08K | 800 | 300 | 3760 | -20 degrees | 3.5 | 3p/380/50Hz | R404A | air cooling | 1235*740*862 |
| GM-10K | 1000 | 400 | 4700 | -20 degrees | 4.5 | 3p/380/50Hz | R404A | air cooling | 1290*970*912 |
| GM-12K | 1200 | 400 | 5640 | -20 degrees | 5 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 |
| GM-15K | 1500 | 400 | 7050 | -20 degrees | 8.3 | 3p/380/50Hz | R404A | air cooling | 1290*970*982 |
| GM-20K | 2000 | 500 | 9400 | -20 degrees | 9.7 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 |
| GM-25K | 2500 | 500 | 11750 | -20 degrees | 10.2 | 3p/380/50Hz | R404A | air cooling | 1500*1085*1208 |
| GM-30K | 3000 | 1200 | 14100 | -20 degrees | 11.2 | 3p/380/50Hz | R404A | air cooling | 1800*1135*1308 |
| GM-40K | 4000 | 2500 | 18800 | -20 degrees | 15.1 | 3p/380/50Hz | R404A | Water cold | 1650*1555*1308 |
| GM-50K | 5000 | 3000 | 23500 | -20 degrees | 18 | 3p/380/50Hz | R404A | Water cold | 1650*1555*1580 |
| GM-80K | 8000 | 5000 | 37600 | -20 degrees | 30.5 | 3p/380/50Hz | R404A | Water cold | 2230*1890*1470 |
| GM-100K | 10000 | 6000 | 47000 | -20 degrees | 31 | 3p/380/50Hz | R404A | Water cold | 2230*1890*1640 |
| GM-120K | 12000 | 8000 | 56400 | -20 degrees | 42.1 | 3p/380/50Hz | R404A | Water cold | 2480*2000*1780 |
| GM-150K | 15000 | 8000 | 70500 | -20 degrees | 56 | 3p/380/50Hz | R22 | Water cold | 3400*2080*1880 |
| GM-200K | 20000 | 12000 | 93500 | -20 degrees | 63 | 3p/380/50Hz | R22 | Water cold | 3400*2080*2300 |
| GM-250K | 25000 | 15000 | 116875 | -20 degrees | 78.3 | 3p/380/50Hz | R22 | Water cold | 3400*2080/2600 |
| GM-300K | 30000 | 15000 | 141000 | -20 degrees | 102.5 | 3p/380/50Hz | R22 | Water cold | 4580*2770*2400 |
| GM-400K | 40000 | 20000 | 188000 | -20 degrees | 124.3 | 3p/380/50Hz | R22 | Water cold | 4580*2770*3000 |
| GM-500K | 50000 | 25000 | 235000 | -20 degrees | 147.4 | 3p/380/50Hz | R22 | Water cold | 4580*2770*3500 |
