| Prod Model: |
GM-100K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Top Quality and Superior Perfomance |
| Material Of The Evaporator: |
Stainless Steel or Carbon Steel |
| Cooling Type: |
Air Cooling/Water Cold/Evaporative |
| Refrigerant: |
R22/R134a/R404a |
| Power Supply: |
3pH/380v/50Hz |
Product Description

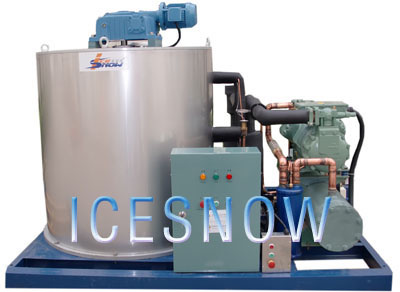

Icesnow flake ice making machine/flake ice makers
A. Flake ice making machine specification:
1) Daily output: 500kg/24h_50000kg/24h
2) Capability: Good
3) Flake ice temperature: -5 degrees~-8 degrees
4) Flake ice thickness: 1.8-2.5mm
5) Flake machine cooling type: Air cooling/water cold/evaporative(optional)
6) Flake machine refrigerant: R22, R407c, R404A
7) Compressors (famous brands compressor); Bizter, Danfoss, Copeland, Hanbell
B. Stability & reliability
Icesnow ice system, ( flake ice machines), with its main parts imported from America, Japan and Germany, is elaborately designed and has a superior performance, which make the machine more stable and reliable.
C. Efficient and excellent fast cooling
The flake ice machine will produce flake ice in 5 minutes, large contact area, low cost of production make the flake ice perfect for fast cooling.
D. Advantages of flake ice: The flake ice is dry and smooth without obvious edges, which will not damage the goods and can maintain the original flavor of the freezing food and keep the fresh of the food and fruits.
|
Model |
daily output
(kg/24h) |
Bin capacity
(kg) |
Ref. capacity (kcal/h) |
Evaporating Temperature |
Total power
(kw) |
Power supply |
Refrigeration |
Cooling mode |
Unit Dimension L*W*D(mm) |
Bin size
L*W*D(mm) |
weight (exclude bin)(kg) |
|
GM-05k |
500 |
300 |
2350 |
–20 degrees |
2.7 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*780 |
1280*1050*1060 |
205 |
|
GM-06k |
600 |
300 |
2820 |
–20 degrees |
3 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*780 |
1280*1050*1060 |
215 |
|
GM-08k |
800 |
300 |
3760 |
–20 degrees |
3.5 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*862 |
1280*1050*1060 |
240 |
|
GM-10k |
1000 |
400 |
4700 |
–20 degrees |
4.5 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*912 |
1330*1250*1210 |
295 |
|
GM-12k |
1200 |
400 |
5640 |
–20 degrees |
5 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*982 |
1330*1250*1210 |
340 |
|
GM-15k |
1500 |
400 |
7050 |
–20 degrees |
8.3 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*982 |
1330*1250*1210 |
360 |
|
GM-20k |
2000 |
500 |
9400 |
–20 degrees |
9.7 |
3p/380/50Hz |
R404A |
air cooling |
1500*1085*1208 |
1520*1320*1300 |
420 |
Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.
Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.
First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
