| Prod Model: |
GM-10K, GM-20K, GM-30K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of The Evaporator: |
Carbon Steel or Stainless Steel |
| Voltage: |
3p/380v/50Hz |
| Condenser Cooling Type: |
Air Cooling or Water Cooled |
| Refrigerant: |
R22 / R404a |
| Compressor: |
Danfoss / Copeland |
| Usage: |
for Refrigerate |
| Certification: |
CE |
| Cooling Method: |
Direct Cooling |
Product Description

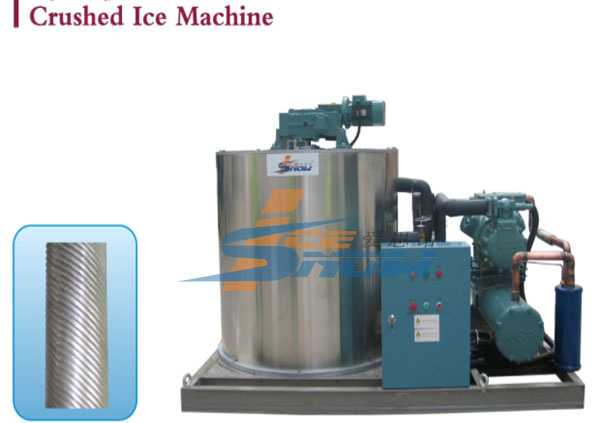

Icesnow crushed ice machines
Crushed ice machine's Daily output is from 0.5Ton/day up to 100Ton/day, our well designed system can handle most of the worse working conditions on the earth, use reliable components imported from well-known overseas suppliers and cheap cost to run, easy operation and maintenance.
Product features:
1. High degree of Customization and optional
All Icesnow crushed ice machines are produced and designed according to client's requirements. We can design machines to suit any working conditions and meet customers' requirements.
Below are the options available for you: -
Power supply: 3p/380v/50Hz (optional)
Refrigerant type: R404A/ R22
Condenser cooling mode: Air Cooling / Water Cooled
Material of Evaporator: Carbon Steel/ Stainless Steel
Compressor: Bitzer/ Copeland/ Danfoss
Water usage: Freshwater or seawater
2. Reliable components
Bitzer, Copeland, Danfoss, Alco, ...etc we only choose the world renowned brand for our components supplier, which makes the flake ice machine stable and reliable.
3. Compact design and easy operate
We design the layout of the whole system elaborately, which made the machine stable and space saving. The whole system is automatically controlled and easy to use; Operation starts by merely switching on one button, and terminates automatically when ice is full.
4. Efficient
By using the Most Efficient compressors and with the most reasonable design of the whole system, our crushed ice machine are rated the lowest power and water consumption ice machines.
|
Model |
daily output
(kg/24h) |
Bin capacity
(kg) |
Ref. capacity (kcal/h) |
Evaporating Temperature |
Total power
(kw) |
Power supply |
Refrigeration |
Cooling mode |
Unit Dimension L*W*D(mm) |
Bin size
L*W*D(mm) |
weight (exclude bin)(kg) |
|
GM-05k |
500 |
300 |
2350 |
–20 degrees |
2.7 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*780 |
1280*1050*1060 |
205 |
|
GM-06k |
600 |
300 |
2820 |
–20 degrees |
3 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*780 |
1280*1050*1060 |
215 |
|
GM-08k |
800 |
300 |
3760 |
–20 degrees |
3.5 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*862 |
1280*1050*1060 |
240 |
|
GM-10k |
1000 |
400 |
4700 |
–20 degrees |
4.5 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*912 |
1330*1250*1210 |
295 |
|
GM-12k |
1200 |
400 |
5640 |
–20 degrees |
5 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*982 |
1330*1250*1210 |
340 |
|
GM-15k |
1500 |
400 |
7050 |
–20 degrees |
8.3 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*982 |
1330*1250*1210 |
360 |
|
GM-20k |
2000 |
500 |
9400 |
–20 degrees |
9.7 |
3p/380/50Hz |
R404A |
air cooling |
1500*1085*1208 |
1520*1320*1300 |
420 |
Shenzhen Icesnow Refrigeration Equipment Co., Ltd. is a high-tech enterprise and professional manufacturer of refrigeration equipment and system which specialized in researching, designing, producing and trading of industrial and commercial refrigeration technology and facilities of ice flake machine. The company owns the first-class equipment, advanced manufacturing workmanship and complete testing method as well as modern management mode. Now we have launched 3 series ice flake machines covering 16 types, with its daily output ranging from 400kgs to 50ton, which greatly satisfied the increasing demands on the commercial ice and industrial ice. Our products are widely used in hyper market freshing, food processing, ocean fishery, Chemicals and dyeing, bio-pharmacy and laboratories.
Icesnow ice system, with its main parts imported abroad, is elaborately designed and has a superior performance. For the whole system is automatically controlled by microcomputer, so it's extremely easy and simple for operation. And the bin cylinder is our patented product, which ranks a leading level and gains widely reputation in and abroad.
First-class products, continuous innovation, durative improvement and clients satisfaction is our tenet. Excellent quality product, complete service and reasonable price is our persistent principle to hold market. We believe our sincerity and seeking-better altitude deserves your trust.
