| Prod Model: |
AS 308 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Low Frequency Drive Unit: |
High Frequency Compression Drive Unit. |
| Birch Plywood: |
Sponge Speaker |
| Panel Handle: |
Aluminum Package |
| Noise: |
≥105dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CE |
| Monitor: |
LCD Screen |
| THD: |
<0.005% |
Product Description

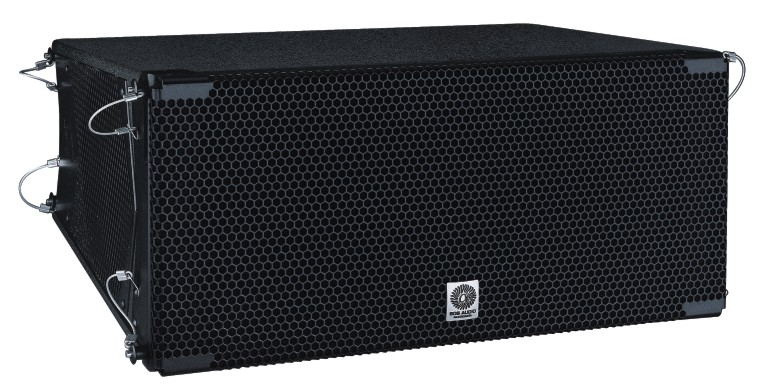

AS308
Is a high performance 3-way line array and symmetrical design. Built-in 2 x10 "low frequency drive unit, 2 x5.25" sealed mid- frequency drive unit, and 2 x1.73 "high frequency compression drive unit. This system uses differences innuendo technology, it makes the high frequency synchronization output equalization of the sound pressure, the distance of voice transmission is farther.In more than one sound box close arrangement composition line array, speakers mutual interference of sound wave is minimized. Mid and high frequency is put into internal passive crossover network, low frequency needs to divide by external processor, three-amp and bi-amp option. The intergrated aluminum hoisting package, speakers vertical coupling angle 0 ° to 9° , could be adjustable in every 1.5 °, 110 ° horizontal projection cover.AS308 could be composed of independent line array system,and only ultra low frequency speaker component systems. It is multi-layer birch plywood manufacturing housing, strong elastic coating protection shell, hex mesh metal mesh enclosure stick acoustic soft sponge as speaker protection, rear panel incorporates several handle.
Characteristic:
3 way line array system
High efficiency output
long throw
professional suspension device, safe and reliable
fast installation, water and heatproof
Applications:
Stadium, concert halls and theaters
medium-large sized performances
Mobile performance PA
Theater
| Specifications: |
| System |
|
| Frequency Response | 100 Hz - 18 kHz (±3 dB) |
| Sensitivity | MF/HF 108dB , LF 92dB SPL (1W @ 1m) |
| Nominal Impedance | MF/HF 8 ohms , LF 8 ohms |
| Power Handing | MF/HF 200 watts(rms),500 watts(program),1000 watts(peak) |
| LF 350 watts (rms), 700 watts (program), 1400 watts(peak) |
|
|
| Maximum SPL | MF/HF 130 dB , LF 118 dB |
| Nominal Coverage Angle(-6 dB) | horizontal()110° |
| Maximum vertical splay | vertical splay0° ~ 9° ,1.5° step |
| Crossover Frequency | MF/HF 2 kHz , MF/LF 350 Hz |
| Recommended High Pass Filter | high pass => 80 Hz , 24 dB/octave |
| Drivers |
|
| Low Frequency(neodymium magnet) | 2 x 8(in) 220 mm dia, 75 mm(3in)voice coil dia |
| Mid Frequency(neodymium magnet) | 2 x 5.25(in) 134 mm dia, 25 mm(1in)voice coil dia |
| Hight Frequency(neodymium magnet) | 2 x 1.73(in) 44mm voice coil dia, 26 mm(1in)throat dia |
| Physical |
|
| Enclosure Construction | 5 mm birch plywood with structured |
| Finish | Wear-resistant textured black paint |
| Grille | Powder coated perforated steel,foam backed |
| Suspension Hardware | Proprietary BOB rigging system |
| Input Connectors | Speakon NL8 x 2 |
| Dimensions H x W x D | 265 mm x 570 mm x 460 mm |
| Net Weight | 24 kg |
