| Prod Model: |
ES2071 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Multi-Channel HDMI Inputs: |
Multiple HDMI Input Connector Support |
| USB Connector Helps PC To Set The System: |
Powerful Decode Mode Including Dolby 5.1, |
| Type: |
Professional Amplifier |
| Usage: |
Theater,Film Room |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
5.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
A |
Product Description

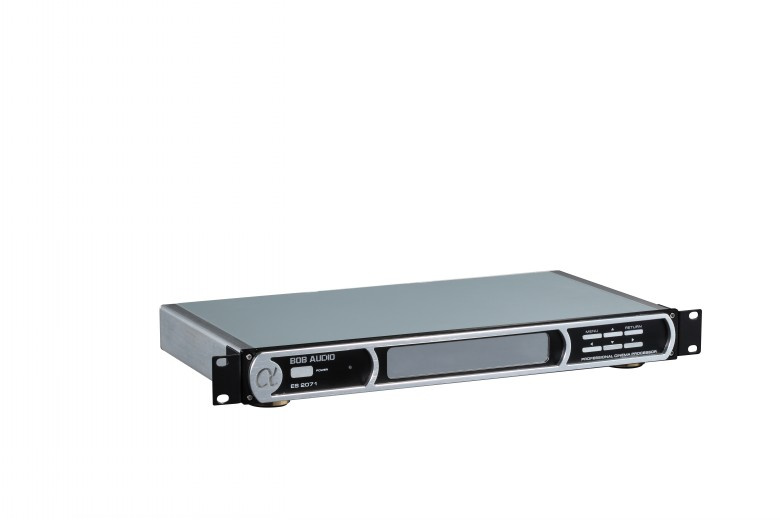

ES2071 is a professional theatre audio and video processor, it can help controlling AV signal of various players. Multiple HDMI input connector support kinds of HD player and satellite TV digital receiver,8 channel audio output. Its powerful decode mode including Dolby 5.1, Dolby digital surrounding EX, Dolby directional logic, DTS and DTS-ES etc.,so it can provide the best surrounding effect to all contents before playing or playing. USB connector helps PC to set the system easily.
Characteristic:
Multi-channel HDMI inputs
8-channel output
perfect support for all HD playback
Powerful multi-format decoding function
USB interface to help PC easily set up and manage the system
program to save and recall function, easy operation
Applications:
midium and small cinemas, film room
post-production equipment
private custom theater
Specifications:
Function
Simulate 2CH Audio 2 X Analog
Digital Video 2 X HDMI
2 X Optical
1 X Coaxial
Digital Video 2 X HDMI
Output
Simulate Audio 1 X 7.1CH
Digital Video 1 X HDMI
Specification
Luput sensitivity/Nominal Impedance 300mV/47K ohms
Max input level 300mV
to noise ratio
Front L/R channel ≥80dB
Front mid channel ≥80dB
Surriunding L/R channel ≥80dB
Rear L/R channel ≥80dB
Frequency response
Front L/R channel 20-20KHz
Front mid channel 20-20KHz
Surriunding L/R channel 20-20KHz
Rear L/R channel 20-20KHz
THD
300mV input, max volumn 300mV ≤0.5%
Tone control
Bass ±10dB/2dB
Treble ±10dB/2dB
Input video
video resolution ratio 480P,576P,720P,1080i,1080P
video color depth 24,30,36Bit
Dimensions H x W x D 48 mm x430 mm x250 mm
Net Weigh 3.5 kg
Audio is not only a kind of profound science, but a kind of art. It is not a result of some component combining together, the design of loudspeaker needs innovative technological ideas and passionate art creativity that ombining together comes out excellent products. Founded in 1995, with its exquisite workmanship, advanced technology products, BOB successfully demonstrates the design concept of the combination of technology and art. Be based on this design concept, passion to music and pursuit of perfect product, BOB presents ranges of products with excellent design, technology and long service life. All goods use most update technology; We placed each range of product a specific purpose that concerning about the whole system but not only one product. By this way, we can design products more agility, so that you could save the cost and time when making engineering design and installation. And the remarkable design leads outstanding performance that ensuring projects' final effect.
After more than 10 years development, BOB's products had widely used in largescale performance and stadium, all kinds of clubs, disco, conference room, church and school. Till today, our product portfolio is fast growing to offer higher quality product to customers with reasonable price, and to achieve all requirements of each client. We BOB Audio are always ready to be your reliable partner.
BOB AUDIO is a manufactory specialized in professional speaker system with own researching, developing and innovative technology that comparing with the same size company in China. From designing and raw material making to final finishing, all high quality products are made in BOB AUDIO's own factory. Computer controlled high-tech CNC manufacturing mode and humanized management is widely applied usually. Keep focusing on technique's optimization and concerting about details, improving researching and developing technology leads BOB AUDIO becomes one of high quality PRO-audio system manufacturer in China's PRO-audio industry.
