| Prod Model: |
LS 8650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Full Range Multi Using Sound Column Spea: |
Wide Coverage |
| Resistent Switch: |
Clear Sound |
| Noise: |
≥105dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Religion Place,Auditorium,Meeting Room,Entertaimen |
| Certification: |
CE |
| Monitor: |
LCD Screen |
| THD: |
<0.005% |
Product Description

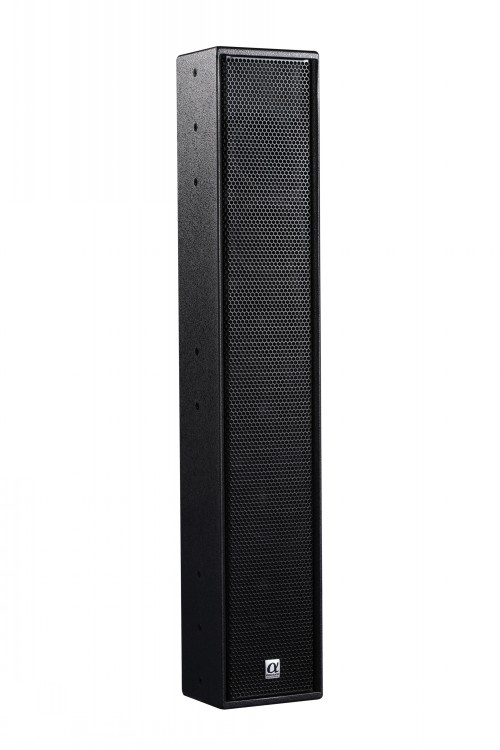

LS8650 is a full range multi using sound column speaker,designed according to line array.4*6.5" full range units,perfect cabinet design,thin and elegant,sound clear,natrural and true.Suitable for all indoor permanent installation conditions or temporary use,provide effetive solution and applycation to commercial building environment sound distribution.Can use individually or connect with LS8652. Use with other subwoofer to extend LF.LS8650 is made of 15mm multi layer birch plywood cabinet,strong environmental paint,multi color for choose.Covered by round hole metal grille(sticked acoustic sound through foam inside),there are connecting parts on top and bottom,also NL4 parallel wire pole.
Feature:
.Full range multi-function linear sound column system
.wide coverage
.effetively control sound direction and coverage
.clear sound
.different speaker can connect
.resistent switch
.special installation parts
.multi color,easy for building matching.
Applications:
.religion place,auditorium
.meeting room,multi-function place
.entertaiment places,canteen,bar
.trafic place,stadium
.library,museum
.shopping center,school
.small show,speech
Specifications:
System
Frequency Response 70 Hz - 5 kHz @(±3 dB)
Sensitivity 97 dB SPL (1W @ 1m)
Nominal Impedance 16 ohms
Power Handing 160 watts (rms) , 320 watts (program) , 640 watts (peak)
Maximum SPL 121 dB
Crossover Frequency 80 Hz
Drivers
Low Frequency 4 x 6.5(in) 460 mm dia(dia), 35 mm(4in)voice coil dia(voice coil dia)
Physical
Enclosure Construction 15 mm (birch plywood with structured)
Finish Wear-resistant textured black paint
Input Connectors NL 4x2
Dimensions H x W x D 1200 mm x 210 mm x 240 mm
Net Weight 15 kg
