| Prod Model: |
CS 122 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quivalent Phase Correction For Crossover: |
Oval Broadband Constant Directivity Waveguide Horn |
| 1X12" Woofer: |
Inverter Type of Lf Radiation |
| Noise: |
≥105dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Conference Centers,Churches,Theater Sound ,Bars, |
| Certification: |
CE |
| Monitor: |
VFD Screen |
| THD: |
<0.005% |
Product Description

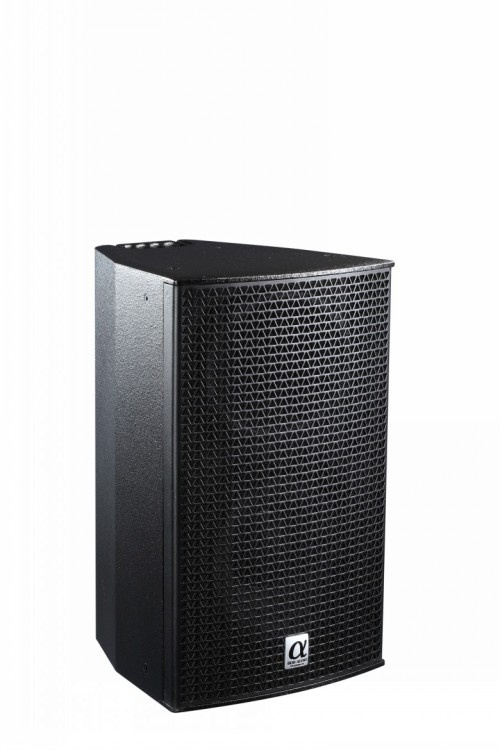

CS112 is a high performance two way full range multipurpose loudspeaker, it covers angle for 90 ° x60 ° oval broadband constant directivity waveguide horn, which loads 1.73 "titanium diaphragm HF compression driver, and with 12" woofer efficient radial magnetic circuit composed. The box body is inverter, solid, and LF output clear while in a large dynamic.CS108 can be used for voice or music amplification,such as an independent system or with the full-range of large-scale distributed systems.With the other series subwoofers can easily make a higher level of the music programs. Polygonal box could be vertical or horizontal mounting. It uses a multilayer birch plywood manufacturing cabinet, strengthen environmental coat protect the shell,speakers use triangle mesh metal mesh enclosure stick acoustic soft sponge as the speaker protection. Top, bottom and side behind were installed by 12units of M8 screws.rear panel also equipped with 2 integrated wooden handles, terminal is equipped with NL4 parallel interface. At the bottom of the speakers, there are with mounting bracket to support the base.
Characteristic:
.2-way full range system
.radian symmetric polygon body design
.oval broadband constant directivity waveguide horn
.efficient radial magnetic circuit design of LF drive
.inverter type of LF radiation
.extremely low distortion, to guarantee excellent fidelity tone
.equivalent phase correction for crossover network
.voptional single-amp or bi-amp drive
Applications:
.conference centers, churches, auditoriums
.bars, nightclubs, clubs
.theater sound reinforcement, theme parks
.stage side sound reinforcement
.mobile or fixed installation audio and video systems
.Performancing PA
Specifications:
System
Frequency Response 60 Hz - 20 kHz (±3 dB)
Sensitivity 99 dB SPL (1W @ 1m)
Nominal Impedance 8 ohms
Power Handing 700 watts (rms) , 1400 watts (program) , 2800 watts (peak)
Maximum SPL 126 dB
Nominal Dispersion 115°(horizontal), 85°(vertical)
Crossover Frequency 1.2 kHz
Drivers
Low Frequency(neodymium magnet) 1 x 12(in) 310 mm (dia), 2x75 mm(3in)(voice coil dia)
Low Frequency(ferrite) 1 x 1.73(in) 44 mm (voice coil dia), 26 mm(1in)(throat dia)
Physical
Enclosure Construction 15 mm (birch plywood with structured)
Finish Wear-resistant textured black paint
Grille Powder coated perforated steel,foam backed
Rigging 9 x M8
Other Bi-amp or passive drive
Integral pole mount socket
Input Connectors NL4 x 2
Dimensions H x W x D 605 mm x 380 mm x 390 mm
Net Weight 17.9 kg
