| Prod Model: |
AMP-D20BR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Usage: |
Hi-Fi |
| Voltage: |
AC 110V |
| Element Number: |
Monoamplifier |
| Output Number: |
1 |
| Used For: |
Civilian |
| Tube Type: |
IC Amplifier |
| Sound Channel: |
3.1 |
Product Description

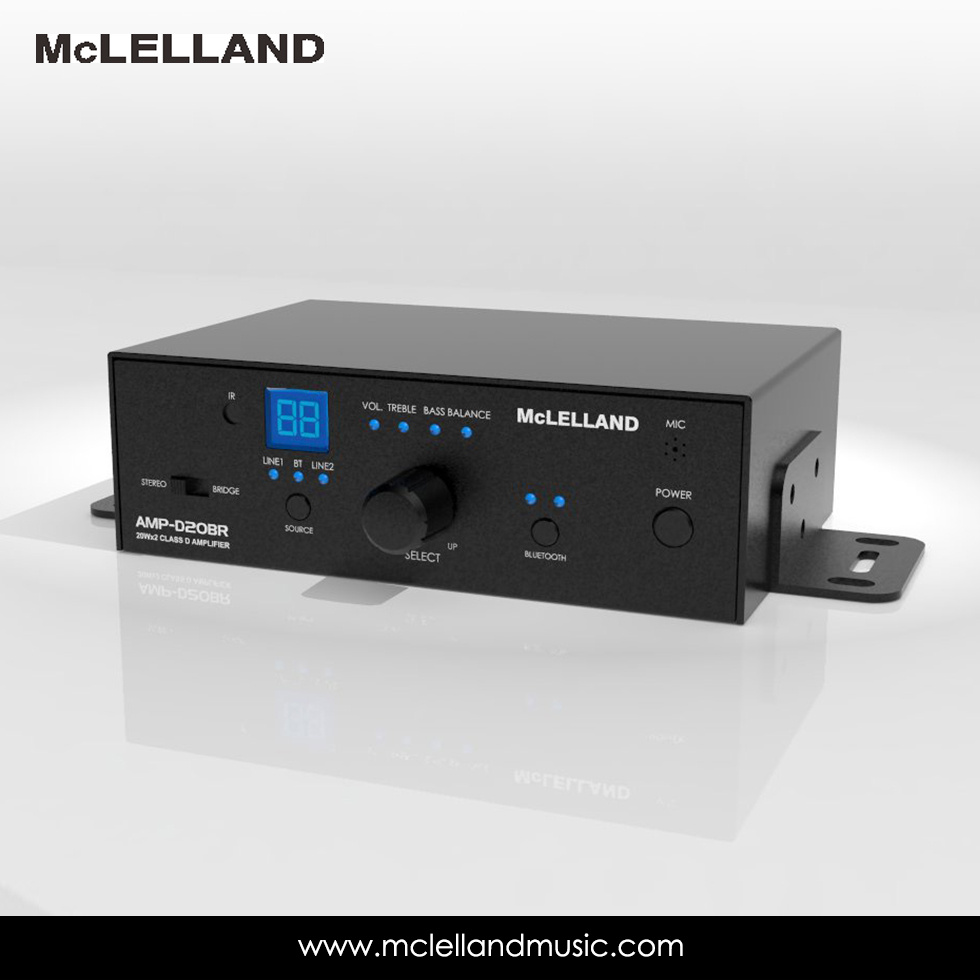

CLASS AMPLIFIER 20W with RS232/2 LINE INPUTS/BLUETOOTH(AMP-D20BR)
Feature:
Audio inputs : RCAx2 / 3.5 Mini Jack
Bluetooth connection
Internal Microphone
RS232 Controller
Input Selection
VOL/TREBLE/BASS/BALANCE Adjustment
IR Remote Control (Optional)
Limit and Loudness ON/OFF switch (DIP switch)
Stereo/Mono Selectable
Speaker output: Terminal Blocks
DC24V Input Jack
SPECIFICATION:
Output power:2x17 W@4Ω THD1% RMS ( 2x20W MAX)
THD1%: 8.5W @8Ω
THD1%: 31 W @8Ω
S/N: -95dB 1K(4Ω)
THD: 1%(17W 4Ω)
Frequency Response: 35Hz~50KHz(-3dB)
Input Sensitivity: 330mV(17W 4Ω)
Input Impedance (Audio): 10K
Power input: DC 24 V
Power consumption: 40W(17W 1% 4Ω)
Bridge mode support 40W for speak out ( Mono. Type)
