| Prod Model: |
RX-BI097XN02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Application: |
Indoor |
| Aspect Ratio: |
4:3 |
| Widescreen: |
Widescreen |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
1024x768 |
| Response Time: |
25ms |
| 3D: |
Not 3D |
| Screen Size: |
9.7inch |
| Interface Type: |
Lvds |
Product Description
Specification

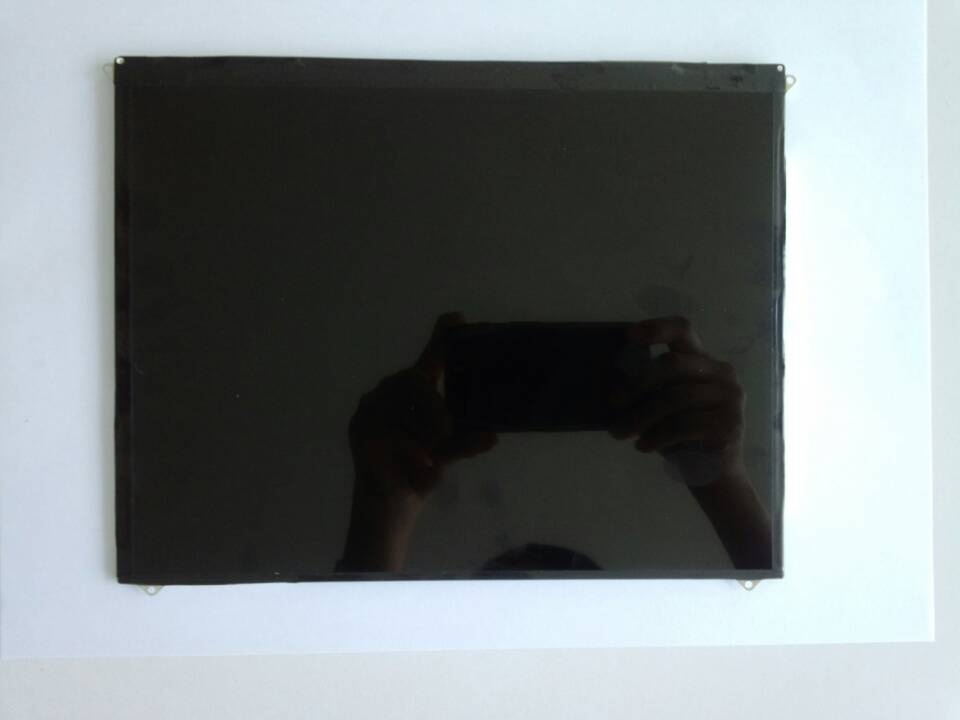

Model number: RX-BI097XN02(IPS)
Display mode: Normally Black, Transmissive
Resolution: 1024X768
DOT Pitch: 0.192X0.192mm
Contrast ratio: 800: 1
Display area: 196.6X147.4mm
Module Size: 213.9X158.4X5.7mm
Interface: LVDS
Pin No.: 0.192X0.192mm
Viewing angel: 89/89/89/89
Viewing Direction: Full view
Backlight No.: 36LED
Luminance: 350nit
Response Time: 25ms
Operating temperature: -20- +70
Stroage temperature: -30- +80
Shenzhen Rogin Electronics Co., Ltd. Professional to provide cover(1.77-82)inch LCD display. Module design service. We also consentrate on Integrated Services about highlight LCD for Customization, Development, Marketing, and Sales. Our company has a lot LCD system brightening technology patents advantages. Comprehensive ISO9001 series of quality management system, product process in strict accordance with the requirements of RoHS and WEEE Directives control. Ensure that every product and process have been effectively controlled.
ROGIN Founded in 2009, have 200 employers, 30 high-end R & D person. We have two automated lines to produce highlight LCD display 10 million units, 500 million LCD modules. The Network marketing spread all over the world, products are widely used in outdoor digital signage, CCTV LCD monitor, 3D LCD TV, military vehicle displays, outdoor handheld GPS, golf course - bus station - Subway station display devices and communications electronics, mobile digital instrument, household appliances and other fields.
