| Prod Model: |
RX035M-04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Luminance: |
200nit |
| Contrast Ratio: |
350:1 |
| Aspect Ratio: |
5:4 |
| Widescreen: |
Not Widescreen |
| Feature: |
LED Backlight Display |
| Response Time: |
25ms |
| 3D: |
Not 3D |
| Application: |
Handheld Device |
| Optimum Resolution: |
320X240 |
| Screen Size: |
3.5 |
| Interface Type: |
RGB |
Product Description
Specification

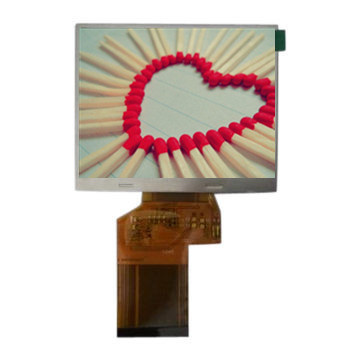

Model number: RX035M-04
Display mode: Normally White, Transmissive
Display colors: 16.7M
Resolution: 320(RGB)*240
Dot Pitch: 0.219*0.219mm
Contrast ratio: 350:1
Display area: 70.08(H)*52.56(V)mm
Module Size: 76.9(W)*64.15(H)*4.0(D)mm
Interface: RGB 24Bits
Connection Type: Plug type
Viewing angel: 40/60/60/60
Viewing Direction: 12 O'CLOCK
Backlight No.: 6 LED
Luminance: 200nit
Driving voltage/Current: 5.0V/25mA
Response Time: 25ms
Operating temperature:-20°C ~ +70°C
Stroage temperature:-30°C ~ +80°C
Shenzhen Rogin Electronics Co., Ltd. Professional to provide cover(1.77-82)inch LCD display. Module design service. We also consentrate on Integrated Services about highlight LCD for Customization, Development, Marketing, and Sales. Our company has a lot LCD system brightening technology patents advantages. Comprehensive ISO9001 series of quality management system, product process in strict accordance with the requirements of RoHS and WEEE Directives control. Ensure that every product and process have been effectively controlled.
ROGIN Founded in 2009, have 200 employers, 30 high-end R & D person. We have two automated lines to produce highlight LCD display 10 million units, 500 million LCD modules. The Network marketing spread all over the world, products are widely used in outdoor digital signage, CCTV LCD monitor, 3D LCD TV, military vehicle displays, outdoor handheld GPS, golf course - bus station - Subway station display devices and communications electronics, mobile digital instrument, household appliances and other fields.
We represent our country to develop flat panel and high brightness screen industry. Try to build our company into a high-tech, high-efficiency, international, and modern first-class enterprise.
