| Prod Model: |
RX050A-0704 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Luminance: |
900nit |
| Pin No: |
24 |
| Application: |
Taxi |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
20ms |
| 3D: |
Not 3D |
| Screen Size: |
5.0 |
| Optimum Resolution: |
800X480 |
| Interface Type: |
RGB |

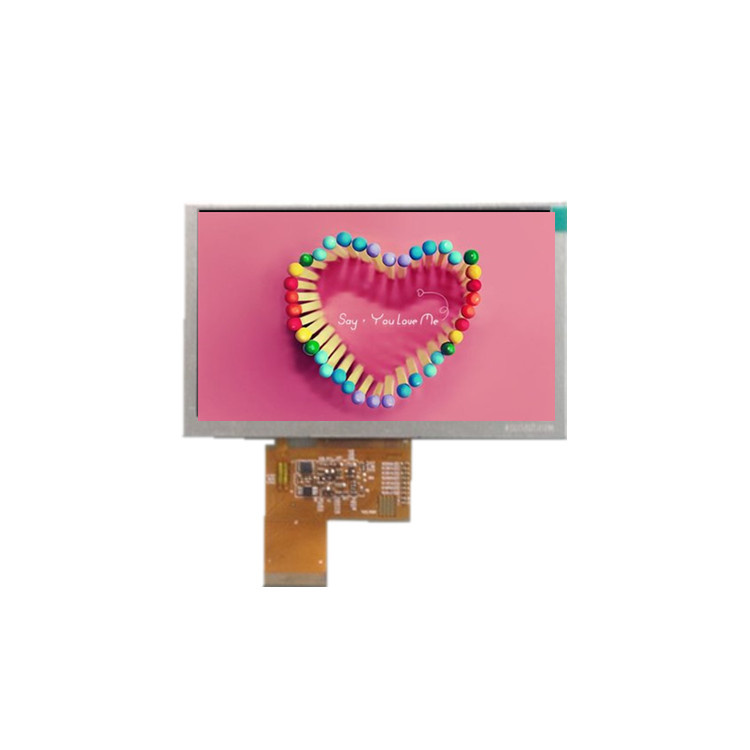

Product Description
Specification:
Model number:RX050A-07
Drive IC:ILI6122+ILI5960
Display mode:Normally White, Transmissive
Display colors:16.7M
Resolution:800*480
Dot Pitch:0.135(H) *0.135(V)
Contrast ratio:700: 1
Display area:108(H)*64.8(V)mm
Module Size:120.7*75.8*3.1mm
Interface:RGB 24bits
Connection Type:splice type
Pin No.:40PIN
Viewing angel:70/70/50/70
Viewing Direction:6 O'clock
Backlight No.:18 LED
Luminance:900nit
Driving voltage/Current:19.2V/60mA
Response Time:20ms
Operating temperature:-20ºC- +70ºC
Storage temperature:-30ºC- +80ºC
Shenzhen Rogin Electronics Co., Ltd. Professional to provide cover(1.77-82)inch LCD display. Module design service. We also consentrate on Integrated Services about highlight LCD for Customization, Development, Marketing, and Sales. Our company has a lot LCD system brightening technology patents advantages. Comprehensive ISO9001 series of quality management system, product process in strict accordance with the requirements of RoHS and WEEE Directives control. Ensure that every product and process have been effectively controlled.
ROGIN Founded in 2009, have 200 employers, 30 high-end R & D person. We have two automated lines to produce highlight LCD display 10 million units, 500 million LCD modules. The Network marketing spread all over the world, products are widely used in outdoor digital signage, CCTV LCD monitor, 3D LCD TV, military vehicle displays, outdoor handheld GPS, golf course - bus station - Subway station display devices and communications electronics, mobile digital instrument, household appliances and other fields.
We represent our country to develop flat panel and high brightness screen industry. Try to build our company into a high-tech, high-efficiency, international, and modern first-class enterprise.
