| Prod Model: |
RX027C-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Outdoor |
| Aspect Ratio: |
16:9 |
| Widescreen: |
Widescreen |
| Feature: |
LED Backlight Display |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
960X240 |
| Screen Size: |
2.7 |
| Interface Type: |
RGB |
Product Description

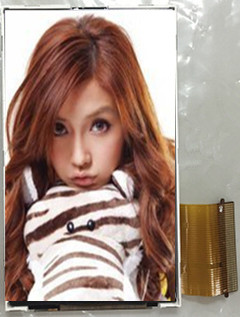

Model number:RX027C-01
Display mode:Normally White, Transmissive
Display colors:16.7M
Resolution:960x240
Dot Pitch:0.06125(H) *0.13775(V)mm
Contrast ratio:400: 1
Active area:33.06x58.8mm
Module Size:39.1*67.5*2.4mm
Interface:RGB 8bit
Viewing angel:30/30/30/30
Viewing Direction:12 O'clcok
Luminance:220nit
Operating temperature:-20ºC- +70ºC
Stroage temperature:-30ºC- +80ºC
Shenzhen Rogin Electronics Co., Ltd. Professional to provide cover(1.77-82)inch LCD display. Module design service. We also consentrate on Integrated Services about highlight LCD for Customization, Development, Marketing, and Sales. Our company has a lot LCD system brightening technology patents advantages. Comprehensive ISO9001 series of quality management system, product process in strict accordance with the requirements of RoHS and WEEE Directives control. Ensure that every product and process have been effectively controlled.
ROGIN Founded in 2009, have 200 employers, 30 high-end R & D person. We have two automated lines to produce highlight LCD display 10 million units, 500 million LCD modules. The Network marketing spread all over the world, products are widely used in outdoor digital signage, CCTV LCD monitor, 3D LCD TV, military vehicle displays, outdoor handheld GPS, golf course - bus station - Subway station display devices and communications electronics, mobile digital instrument, household appliances and other fields.
We represent our country to develop flat panel and high brightness screen industry. Try to build our company into a high-tech, high-efficiency, international, and modern first-class enterprise.
