| Prod Model: |
JHD-AP006E-050100BB-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
53X35X14mm (Ultrathin) |
| Satety Approval: |
CE, GS, CB |
| Lead Time: |
15days |
| Usage: |
Display |
| Output Type: |
DC |
| Connection: |
Plug In |
| Certification: |
CE |
| Color: |
White/Black |
Product Description

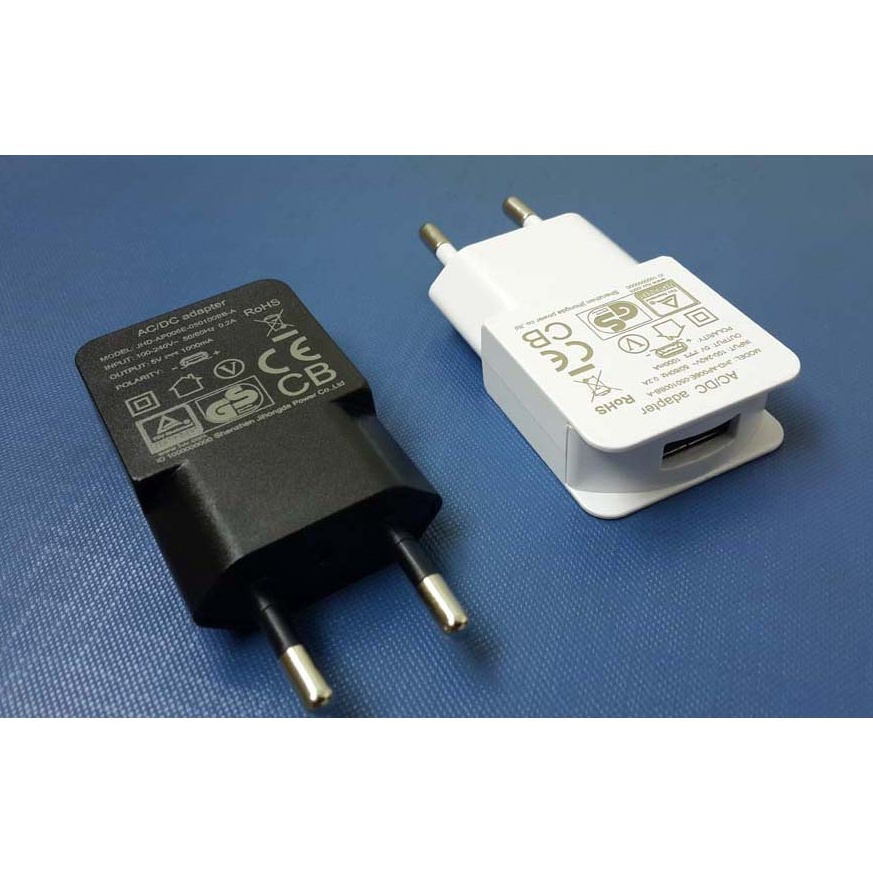

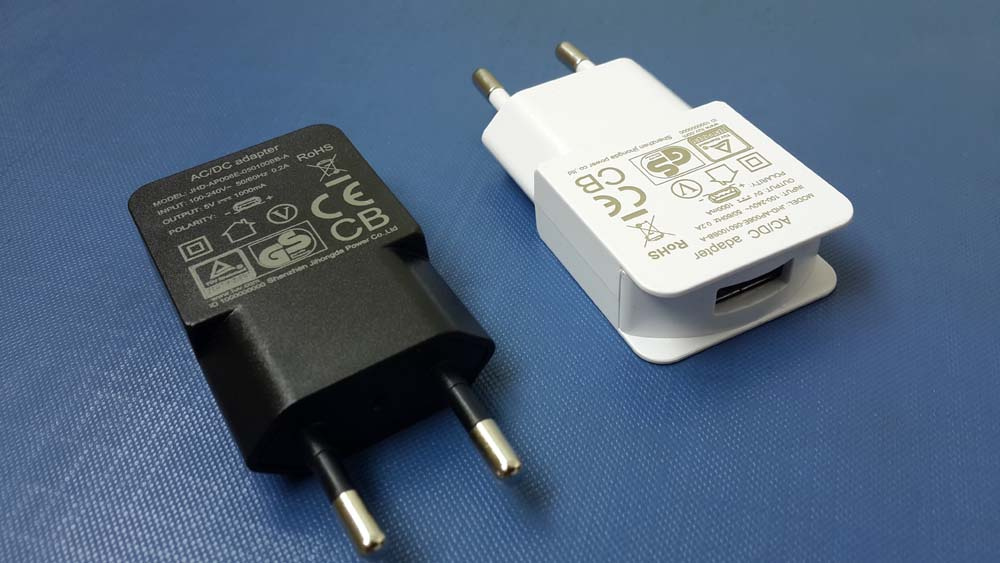

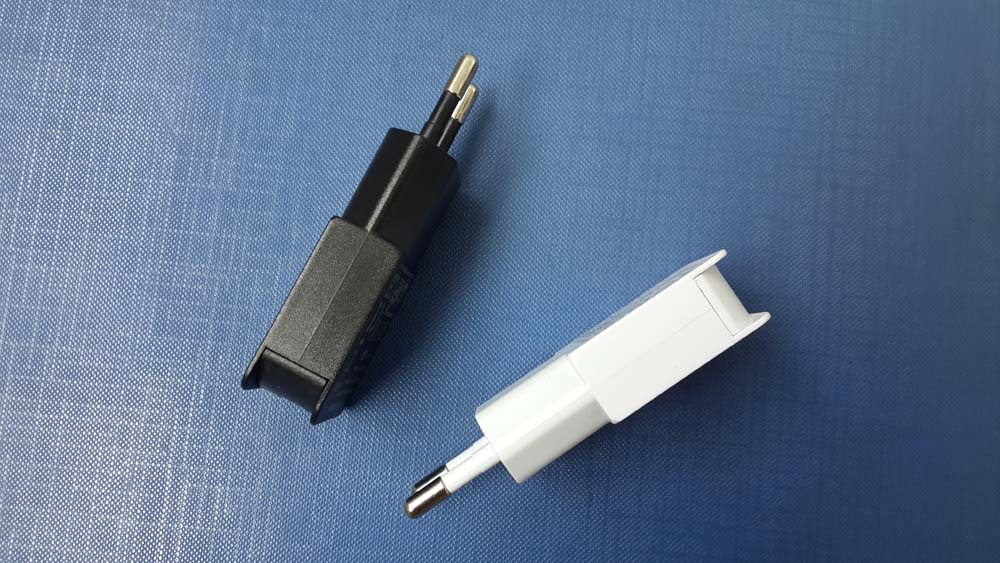

5V 1A usb power adapter charger for mobile phone UL CE GS PSE FCC approval,Thin&small design for easier carrying,Univer Input 100-240VAC,Modified and Custom Design Available,Output with Low Ripple Noise,Meet ROHS CEC
Input Voltage: AC100-240V,50/60Hz
Input Voltage Range: AC90-264V,47/63Hz
Load Consumption: 0.1W (max)
Output Power: 6Wmax
Output Voltage: 5V
Over Voltage Protection: 120%min
Over Current Protection: 120%min
Short-Circuit Protection : Auto-Recover
Output Voltage Accuracy: ±5%
Reliability
MTBF: 50000Hours
Burn-In Test: 100% full Load
Environment Requirement
Operating Temperature: 0ºC - 40ºC
Storage Temperature: -20ºC - 85ºC
Storage Humidity: 5% - 90%RH
Insulation Withstand: AC 3000V(Min),5mA(Max)
Insulation Resistance: DC 500V 100MΩ(Min)
Satety Approval:CE,GS,CB
Dimension
Weight : about 50g
Dimension: 53X35X14 (mm)
| Model No. | Output |
| JHD-AP006E-050020BB-A | 5V 200mA |
| JHD-AP006E-050050BB-A | 5V 500mA |
| JHD-AP006E-050080BB-A | 5V 800mA |
| JHD-AP006E-050100BB-A | 5V 1A |
| JHD-AP006E-050120BB-A | 5V 1.2A |
Remark:
The above is JHD standard specification , customizing service is available.
If you have different requirement ,please feel free to contact us.
