| Prod Model: |
GM-05K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of The Evaporator: |
Stainless Steel or Carbon Steel |
| Cooling Type: |
Air Cooling/Water Cold/Evaporative |
| Refrigerant: |
R404a |
| Power Supply: |
3pH/380v/50Hz |
| Compressor: |
Danfoss |
| Dimension: |
1235*740*780mm |
Product Description

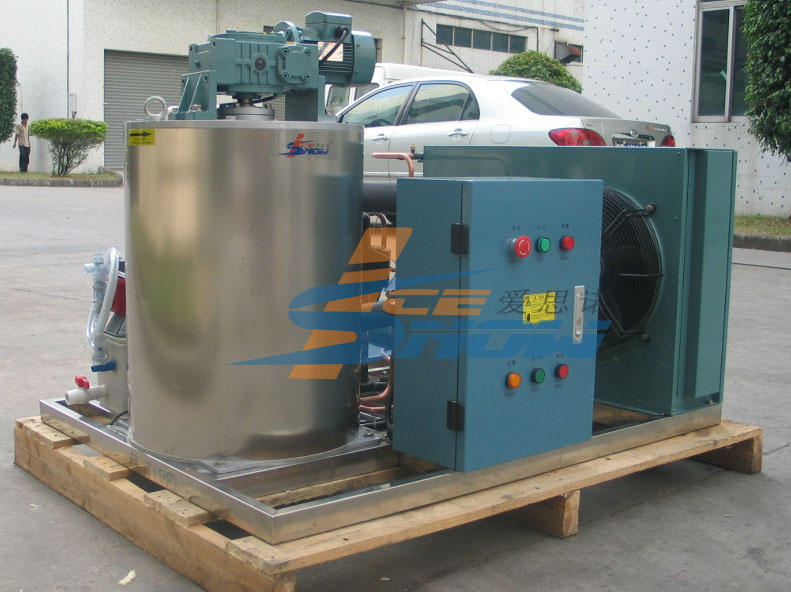

Icesnow flake ice makers / Flake ice making machines (350kg/24hr 50, 000kg/24hr)
Detailed Product Description
1) Icesnow machines use famous international compressors: Danfoss, Copelant, Bizter.
2) power supply: 3pH/380v/50Hz (design along with customer's request)
3) flake ice thickness: 1.8-2.5mm
4) flake ice machine refrigerant: R22, R407c, R404a
5) cooling type: Air cooling/water cooled/evaporative
6) material of flake ice evaporator: Stainless steel or carbon steel
Flake ice machines Features:
1) Icesnow flake ice machines remain top quality and reliable performance with good daily output.
2) Directly formed at low temperature; Flake ice are as cold as below 5 to 8 Celsius;
3) Once formed, ice flakes are dry, clean, beautiful in shape, sanitary and Convenient to deliver and not likely to lump;
4) Relatively big contact area and good mobility can ensure their full contact with refrigerated objects to realize good preservation effect;
5) Without any acute edges and corners, ice flakes do not damage the surfaces of refrigerated objects but extremely benefit for storage and delivery anywhere anytime;
6) All our equipment are convenient and easy to operate, strong adaptability and stable quality.
|
Model |
daily output
(kg/24h) |
Bin capacity
(kg) |
Ref. capacity (kcal/h) |
Evaporating Temperature |
Total power
(kw) |
Power supply |
Refrigeration |
Cooling mode |
Unit Dimension L*W*D(mm) |
Bin size
L*W*D(mm) |
weight (exclude bin)(kg) |
|
GM-05k |
500 |
300 |
2350 |
–20 degrees |
2.7 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*780 |
1280*1050*1060 |
205 |
|
GM-06k |
600 |
300 |
2820 |
–20 degrees |
3 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*780 |
1280*1050*1060 |
215 |
|
GM-08k |
800 |
300 |
3760 |
–20 degrees |
3.5 |
3p/380/50Hz |
R404A |
air cooling |
1235*740*862 |
1280*1050*1060 |
240 |
|
GM-10k |
1000 |
400 |
4700 |
–20 degrees |
4.5 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*912 |
1330*1250*1210 |
295 |
|
GM-12k |
1200 |
400 |
5640 |
–20 degrees |
5 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*982 |
1330*1250*1210 |
340 |
|
GM-15k |
1500 |
400 |
7050 |
–20 degrees |
8.3 |
3p/380/50Hz |
R404A |
air cooling |
1290*970*982 |
1330*1250*1210 |
360 |
|
GM-20k |
2000 |
500 |
9400 |
–20 degrees |
9.7 |
3p/380/50Hz |
R404A |
air cooling |
1500*1085*1208 |
1520*1320*1300 |
420 |
