| Prod Model: |
GH320240-5701 Model |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Construction: |
Tab |
| Display Type: |
Stn,Negative or Positive ,Transmissive |
| Operating Voltage (Vdd): |
3.3V,5V |
| Viewing Area: |
122.00*92.00 |
| Outline Dimension: |
166.75*109.00*10.6 |
| Controller: |
Nt7701 or Equivalent Controller |
| Type: |
Graphic |
| Usage: |
Monitor LCM |
| Touch Screen Type: |
Resistive |
| LCD Drive Mode: |
Static Drive LCD Module |
| Display Technology: |
STN |
| Customized: |
Customized |
Product Description
Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
The Module Datesheet

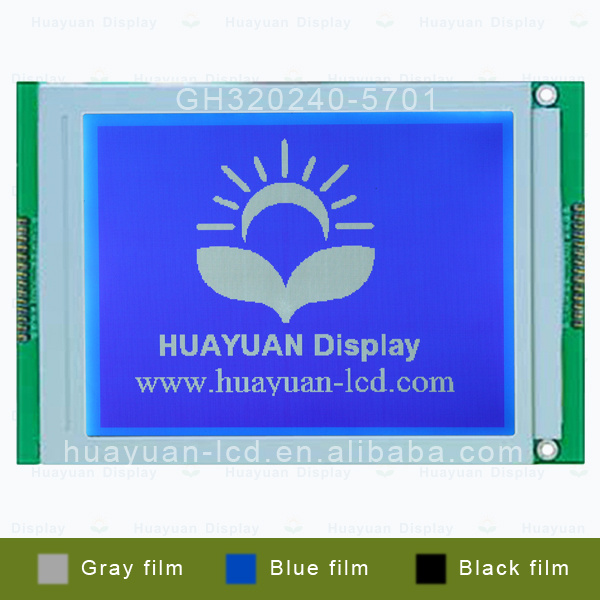

Model:GH320240-5701
ConstructionTAB
Display TypeSTN,Negative or Positive ,Transmissive
Operating Voltage (VDD)3.3V,5V
Backlight Voltage(VBL)3.3V,5V
Operating Temperature (degree Celsius)-20ºC~70ºC
Storage Temperature (degree Celsius)-30ºC~80ºC
Viewing Direction12:00
Dot Matrix320*240
Viewing Area122.00*92.00
Active Area115.17*86.37
Outline Dimension166.75*109.00*10.6
ControllerNT7701 or equivalent controller
BacklightLED,White
The Layout Drawing
The Similar products
How to running the orders with old customers?
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .believe we are you best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
| VSS | NC | NC | NC | NC | D3 | D2 | D1 |
|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|
| D0 | VEE | VSS | VDD | DISP | CL2 | CL1 | S |
|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
| NC | NC | NC | NC | D0 | D1 | D2 | D3 |
|
| 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| DISP | S | NC | CL1 | CL2 | VDD | VSS | VEE | V0 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
| D0 | D1 | D2 | D3 | DISP | S | NC | CL1 |
|
| 9 | 10 | 11 | 12 | 13 | 14 |
|
|
|
| CL2 | VDD | VSS | VEE | V0 | GND |
|
|
|
