| Prod Model: |
GH12864-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gh12864-2501 |
| Construction: |
Cog |
| Display Type: |
Stn |
| Operating Voltage (Vdd): |
3.3V,5V |
| Operating Temperature (Degree Celsius): |
'-20~70 |
| DOT Matrix: |
128*64 |
| Viewing Area: |
48.00*36.00 |
| Active Area: |
44.77*30.05 |
| Outline Dimension: |
54.00*45.00*5.50max |
| Controller: |
St7565r |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Graphic |
| Response Time: |
5ms |
| Display Technology: |
COG |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
| Touch Screen Type: |
Without |
| Viewing Angle: |
6 O'clock or 12 O'clock |
Product Description

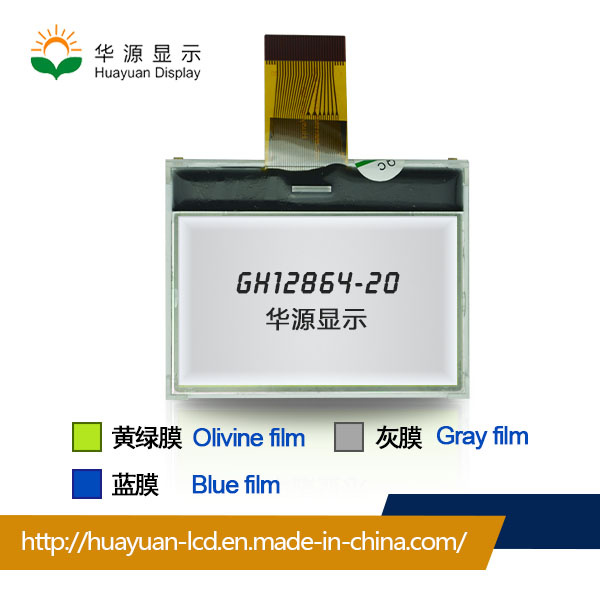

Graphic FSTN 12864 Cog LCD Display
The Module Datesheet
Model:GH12864-2501
ConstructionCOG
Display TypeSTN
Operating Voltage (VDD)3.3V,5V
Backlight Voltage(VBL)3.3V,5V
Operating Temperature (degree Celsius)-20~70
Storage Temperature (degree Celsius)-30~80
Viewing Direction6:00
Dot Matrix128*64
Viewing Area48.00*36.00
Active Area44.77*30.05
Outline Dimension54.00*45.00*5.50MAX
ControllerST7565R
BacklightLED,White
How to running the orders with old customers?
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .believe we are you best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| NC | NC | NC | NC | VLCD | V+ | V- | B- | B+ | VSS |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| VDD | BM1 | BM0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | WR1 | WR0 | CD | RST | CS0 | NC | NC | NC | NC |
Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
