| Prod Model: |
GH320240-5702 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gh320240-5702 |
| Construction: |
Tab |
| Display Type: |
Stn,Negative,Transmissive |
| Operating Voltage (Vdd): |
5V(3.3V) |
| Operating Temperature (Degree Celsius): |
-20~70 |
| Storage Temperature (Degree Celsius): |
-30~80 |
| DOT Matrix: |
320*240 |
| Viewing Area: |
121.00*91.60 |
| Outline Dimension: |
165.55*109.00*6.80 |
| Controller: |
Nt7701 |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Graphic |
| Response Time: |
5ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
| Touch Screen Type: |
Without |
Product Description

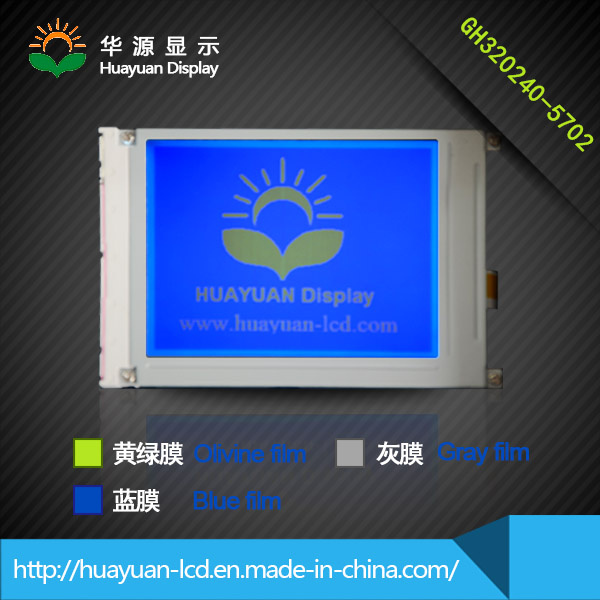

Graphics LCD 240320 Display for Medical Industry
The Module Datesheet
Model:GH320240-5702
ConstructionTAB
Display TypeSTN,Negative,Transmissive
Operating Voltage (VDD)5V
Backlight Voltage(VBL)5V
Operating Temperature (degree Celsius)-20~70
Storage Temperature (degree Celsius)-30~80
Viewing Direction6:00
Dot Matrix320*240
Viewing Area121.00*91.60
Active Area115.17*86.37
Outline Dimension165.55*109.00*6.80
ControllerNT7701
BacklightCCFL,LED,White
Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
How to running the orders with old customers?
Step1.Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2.According to your details, we give you some advise and good price.
Step3.Negotiate the technical dates after that we will send you the exact quotation
Step4.You arrange the tooling charge payment.
Step5.We make design paper and waiting for your confirmation in two days.
Step6.We make new samples for your testing with in two weeks
Step7.After samples confirmed, we are running the production.
Step8.You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you .believe we are you best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
Interface definition describe |
|
|
|
|
|
|
|
|
|
|
|
|
| GH320240-5702 |
Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
interface definition | S | CL1 | CL2 | NC | DISP
OF | D0 | D1 | D2 | D3 | VDD | VSS | VEE |
