| Prod Model: |
GH12864-2501 |
| Model: |
Gh12864-2501 |
| Construction: |
Cog |
| Display Type: |
Stn |
| Operating Voltage (Vdd): |
3.3V, 5V |
| Operating Temperature (Degree Celsius): |
'-20~70 |
| DOT Matrix: |
128*64 |
| Viewing Area: |
48.00*36.00 |
| Active Area: |
44.77*30.05 |
| Outline Dimension: |
54.00*45.00*5.50max |
| Controller: |
St7565r |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Graphic |
| Response Time: |
5ms |
| Display Technology: |
COG |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
| Touch Screen Type: |
Without |
| Viewing Angle: |
6:00 or 12:00 |

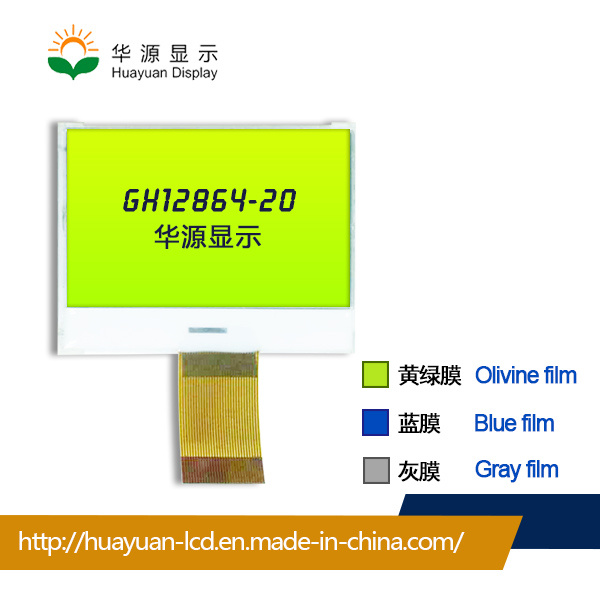

Product Description
1.The Module Datesheet
Model:GH12864-2501
ConstructionCOG
Display TypeSTN
Operating Voltage (VDD)3.3V,5V
Backlight Voltage(VBL)3.3V,5V
Operating Temperature (degree Celsius)-20~70
Storage Temperature (degree Celsius)-30~80
Viewing Direction6:00
Dot Matrix128*64
Viewing Area48.00*36.00
Active Area44.77*30.05
Outline Dimension54.00*45.00*5.50MAX
ControllerST7565R
BacklightLED,White
2. The interface definition
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| NC | NC | NC | NC | VLCD | V+ | V- | B- | B+ | VSS |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| VDD | BM1 | BM0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | WR1 | WR0 | CD | RST | CS0 | NC | NC | NC | NC |
3. FAQ
| Q1:Are you a factory or trading company? | A1: We are manufacturer.
Please refer to our company show |
| Q2:Where is your factory located?How can I visit there? | A2:Our factory is located in Hunan,China.Welcome to visit our factory.
We could pick you up in Changsha Huanghua Airport, or High-speed train
Zhuzhou Xi station. |
| Q3:How can I get some samples? | A3:We don't provide free one, but we will minus the extra price when you
reorder with the suitable quantity. And you will win the 1-3% discount. |
Q4:How does your factory do regarding
quality control? | A4:Quality is the priority.
Our factory has gained ISO9001 RoHS SGS certification. |
| Cooperate Supplier | Tianma, Innolux, Sumsung, Varitronix, CPT, BOE,HSD,Chi mei |
| Company development plan | Our company prepared attend electronics show in Munich, Germany, 2016 |
| Packaging & Delivery | Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 5-7 days for sample and 25-30 days for mass production |
4. Related Products
| 1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.) |
| 2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.) |
| 3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc. |
| 4. TN/STN/HTN/VA segment custom lcd ,LED backlight panel |
| All kinds of LCD Module can customize according to customer`s requirement. |
Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Application:
Autoelectronics,3D&Shutter,Meters&Instrument,Telecommunication,Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics
