| Prod Model: |
PVR758-32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1024X600 |
| Backlight: |
LED |
| Contrast Ratio: |
700:1 |
| Brightness: |
250CD/M2 |
| Response Time: |
10ms |
| Viewing Angle: |
75°/75°(L/R) ,75°/75°(U/D) |
| Input Signal: |
Video,Audio,RF,HDMI,TF Card Insert |
| Output Signal: |
Video,3.5mm Earphone Jack |
| Input Voltage: |
DC 6V-24V |
| Application: |
Video Transmission |
Product Description

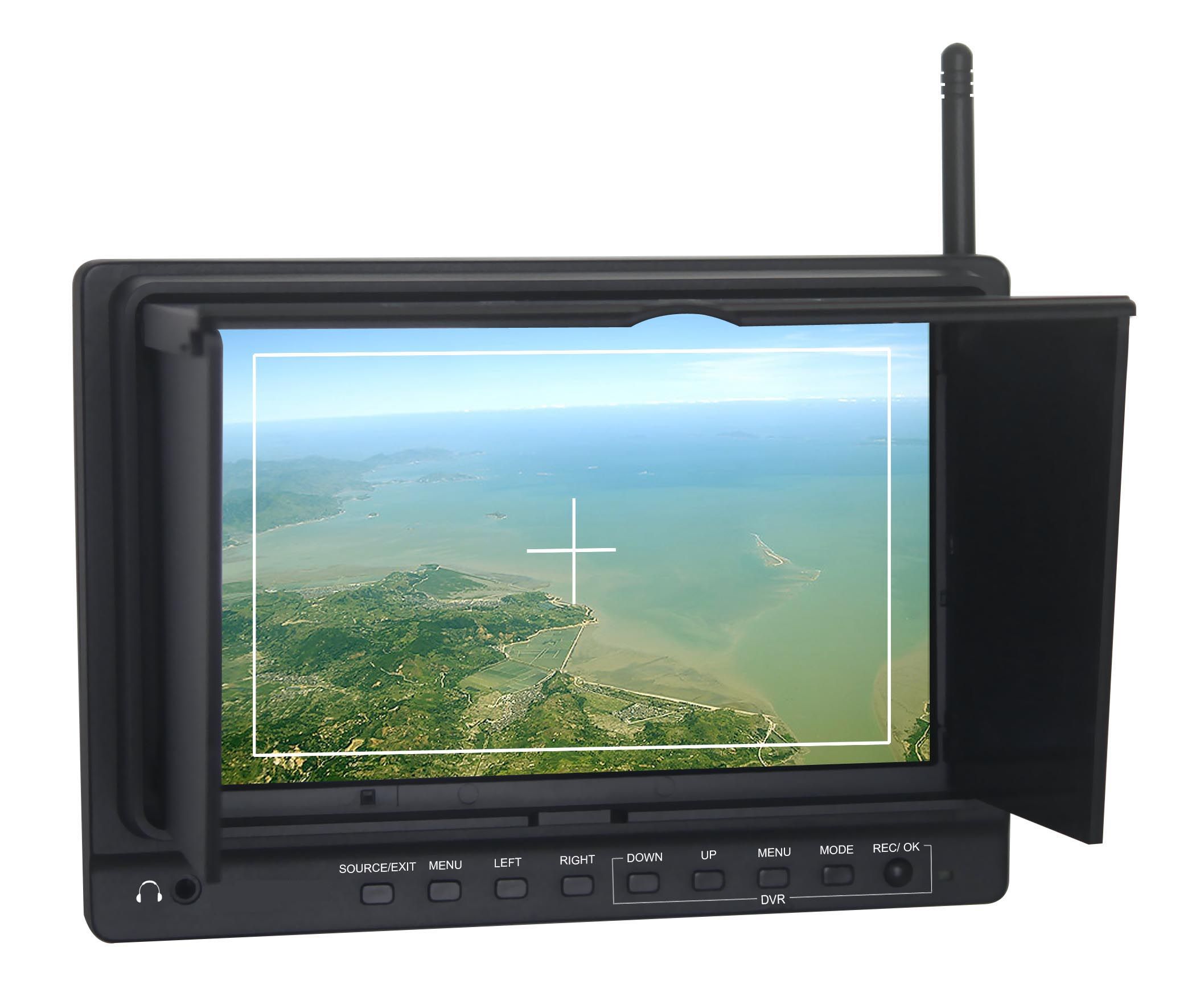

32 Channel 5.8Ghz Wireless Receiver with 7 Inch Monitor, DVR
Applications:
Wireless Baby monitor
Wireless video leisure goods
DVD/DVB AV wireless transfer
Engineering construction monitor
Wireless camera security system
Wireless video medical apparatus
Wireless visual reversing camera transmission
Advanced Features:
Peaking Focus Assist
Camera 5D II Mode
Full Screen Display in mode of Monitoring & Recording
4: 3&16: 9 image adjustable
Check Field, Screen Marker, Centre Marker
RCA/BNC Connector, Portable DVR
32 Channels Receiver, No Blue Screen
Frequency Control, Motion Detection, Cycle Recording
High Sensitivity, Plastic Sun Shade
TF Card support Max to 32 G
| Model Number | PVR758-32 |
| Screen Size | 7 Inch |
| Dot Resolution | 1024x600(max to 1920x 1440) |
| Dot Pitch | 0.05(W) x 0.15 (H) |
| Brightness | 250cd/m 2 |
| Contrast Ratio | 700:1 |
| Response Time | 10ms |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Support Video Format | PAL-4.43,;NTSC-3.58 |
| Viewing Angle | 75°/75°(L/R) ,75°/75°(U/D) |
| Input Voltage | DC 6V-24V |
| Input Signals | Video,Audio,RF,HDMI,TF Card Insert |
| Output Signals | Video,3.5mm Earphone Jack |
| Power Consumption | ≤8W |
| Working Temperature | -20°c to 50°c |
| Storage Temperature | -30°c to 65 °c |
| Install Way | 1/4"-20 Thread mounting socket |
| Unit Size | 189 × 134W ×26H(mm)
189 × 134W ×32H(mm)(W/ battery plate) |
| Unit Weigt | 450g |
| Standard Accessories | Mini HDMI Cable x 1, Antenna X1, Sony F970 Battery Plate x1 |
| Instruction Manual X1, Plastic Sunshade x1 |
| Optional Accessories | Power AC Adaptor ,Li- Ion Battery , Canon LP-E6 Battery Plate, |
| Panasonic D28S Battery Plate |
| Packing Details | 10PCS/CTN |
| Carton Size: 50x44.5x27.4CM |
| N.W.:14KGS/CTN |
| G.W.:16KGS/CT |
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
