| Prod Model: |
PVR-732 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1024X600 |
| Backlight: |
LED |
| Contrast Ratio: |
700:1 |
| Brightness: |
500CD/M2 |
| Viewing Angle: |
75°/75°(L/R), 70°/75°(U/D) |
| Inputs: |
HDMI,Video ,Audio ,RF |
| Output: |
Video, 3.5mm Earphone Jack |
| Input Voltage: |
DC 9-18V |
| Type: |
TFT |
| Application: |
Aerial Photograph, Camera, Film Making |
| Aspect Ratio: |
16:9 |
| Feature: |
DVR, 32 Channel AV Receiver |
Product Description

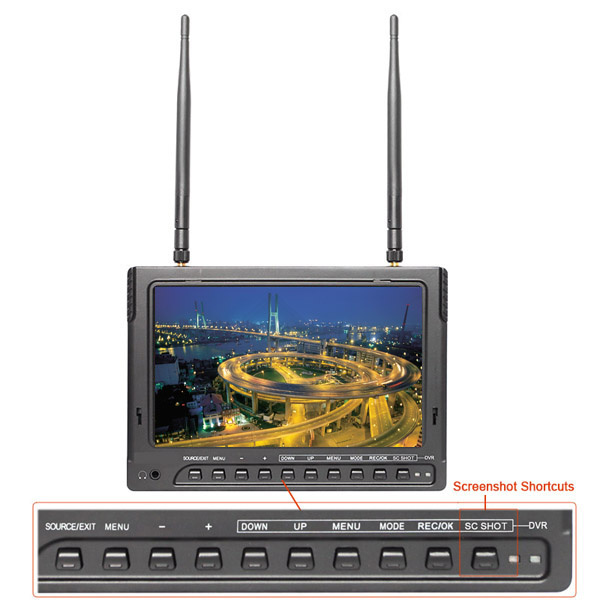

7 Inch TFT LCD Display with DVR for Aerial Photography
Applications:
· Wireless FPV, Baby Monitor
· Wireless Visual Reversing Camera Transmission
· DVD/DVB AV Wireless Transfer
· Engineering Construction Monitor
· Wireless Video Leisure Goods
· Wireless Camera Security System
· Wireless Video Medical Apparatus
· Wireless Doorbell
Advanced Features:
· Built-in Dual 32 Channel AV Receiver automatically for best reception automatic switching
· No Blue Screen, FPV Portable DVR, High Video Quality
· Motion Detection, Cycle Recording
· Receiving Sensitivity: -90dBm
· Frequency Control: Built-in Frequency and Phase Lock Loop
· Support Wired & Wireless Camera, Photo Function
Features for DVR:
· TF Card support Max to 32 G
· DVR Resolution: D1(720X576), VGA(640X480), QVGA(320X240)
· DVR Record Video Format: AVI
· Power off without video lost
· Seamless Continuous Record
· No intermittent Recording, it will not miss any details and wonderfulness.
|
Model Number |
PVR-732 |
|
Screen Size |
7 Inch |
|
Resolution |
1024x600 |
|
Aspect Ratio |
16:9 |
|
Backlight |
LED |
|
Contrast Ratio |
700:1 |
|
Format |
PAL-4.43, NTSC-3.58 |
|
Brightness |
500cd/m 2 |
|
Viewing Angle |
75°/75°(L/R), 70°/75°(U/D) |
|
Input Signals |
HDMI,Video ,Audio ,RF |
|
Output Signals |
Video, 3.5mm Earphone Jack |
|
Input Voltage |
DC 9-18V |
|
Power Consumption |
≤ 13 W |
|
Built-in Battery |
7.4V/2200mA (2 hours) |
|
Working Temperature |
-20 °c to 50°c |
|
Storage Temperture |
-30 °c to 65 °c |
|
Install Way |
including a standard 1/4-20 tripod mounting hole at the bottom for simple use for your ground station |
|
Unit Size |
188.4(L)x134(W)x29.2(H)mm |
|
Unit Weight |
500g |
|
Standard Accessories |
Power AC Adaptor x1, Sun Shade x1, Antenna x2 ,Manual x1 , Li-ion Battery x1 |
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
