| Prod Model: |
LCD230/430 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
USB or RS232 Port |
| Baud Rate: |
9600BPS |
| Brightness: |
2000CD |
| Handshake Signal: |
No |
| Electrical: |
DC5V DC 12V |
| Display: |
LCD White Characters Display |
| Display Characters: |
2 Lines X 30 Characters / Line, 60 Characters |
| Display Area: |
190mm(L) X 60mm(W) |
| Panel Dimensions: |
224*86 mm |
| Mtbf: |
25,000 Hours |
Product Description
30 Characters POS LCD Customer Display
(Model: LCD230/430)
Specifications:
Customer Display,LCD Customer Display,POS LCD Customer Display
Description:
LCD230/430 is a LCD customer display with 30 characters per line LCD display, two lines or four lines for optional.l Support Chinese and English languages, Pole height is adjustable, 360 degree rotation angle...
| Communication |
| Interface: | USB or RS232 port |
| Baud rate: | 9600bps |
| Brightness: | 2000cd |
| Data bit: | 8bit |
| Stop bit: | 1bit |
| Handshake signal: | No |
| Electrical: | By the power of the host computer USB 5V or DC 12V |
| Display: | LCD white characters display |
| Display characters: | 2 lines x 30 characters / line, 60 characters or
4 lines x 30 characters/line,120 characters |
| Display area: | 190mm(L) x 60mm(W) |
| MTBF: | 25,000 hours |

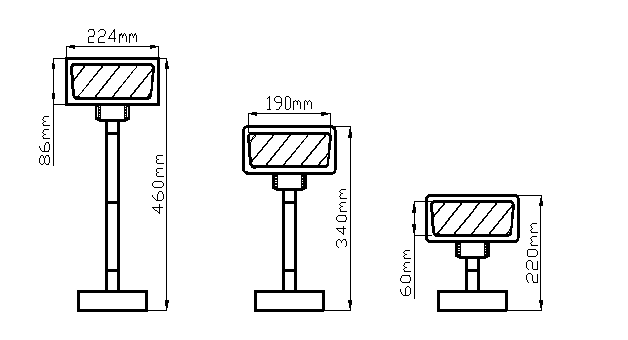

| Dimensions |
| Panel dimensions: | 224*86 mm |
| Support dimensions: | Long support: 460mm (Contain base)
Short support: 224mm (Contain base) |
| Pitching move angle: | 15-120°, Can provide comfortable, and adjust the visual Angle |
| Weight: | 1.2Kg (gross) |
| Environment |
| Operating Temp: | -40~50 A18 |
| Storage Temp; | -60~80 A19 |
| Operating Humidity: | 30~85% |
| Storage Humidity: | 30~90% |
| Command Set |
| Adopting international standard general command ESC/POS, Its can used in DOS or Windows System Environment |
| With the function of opening the cash drawer All direction adjustable. |
Product Details:
OCOM is a leading One-stop POS and Auto-ID Related Products Supplier which is qualified by Global Fortune 500 company. We have Top 1 level Trade Assurance guarantee.
OCOM's products portfolio covers Thermal Printer, Barcode Printer, DOT Matrix Printer, Barcode Scanner, Data Collector, POS Machine and other POS Peripherals products, which are widely used for retailing, restaurant, bank, lottery, transportation, logistics, and other applications. We have CE, FCC and other required certifications.
Since established in June 2007, OCOM have been sticking to the quality system of ISO9001: 2008. We focuses on reliable products quality and competitive price. We were serving more than 1300 customers over 133 countries, 40 of them are the biggest distributors in their territory. The main market in Europe, Australia, and fast growing South America and Africa. The customer list including famous Unilever, O2, Equicom...
OCOM's mission is to be the compelling choice for our partners, based on our three basic belief "Integrity based, Strive for excellence, Win-win cooperation", we would like establish stable and reliable partnerships with customers all over the world. OEM/ODM is welcome.
Together we quest for the best.
