| Prod Model: |
TM1502 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Screen Size: |
15" |
| Resolution: |
1024×768 |
| Pixel Pitch(mm): |
0.297 |
| Active Area(mm): |
304.1×228.1 |
| Number Of Colors: |
16.2m |
| Contrast Ratio: |
700/1 |
| Brightness: |
250CD/M² |
| Viewing Angle: |
150/135 |
| Touch Panel Size: |
15" 4-Wire |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Optimum Resolution: |
1024x768 |
| Widescreen: |
Widescreen |
| Response Time: |
8ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Type: |
LED |
Product Description

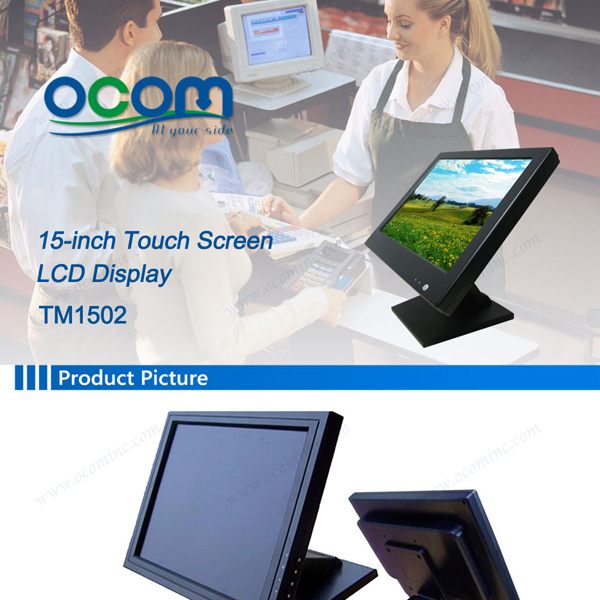

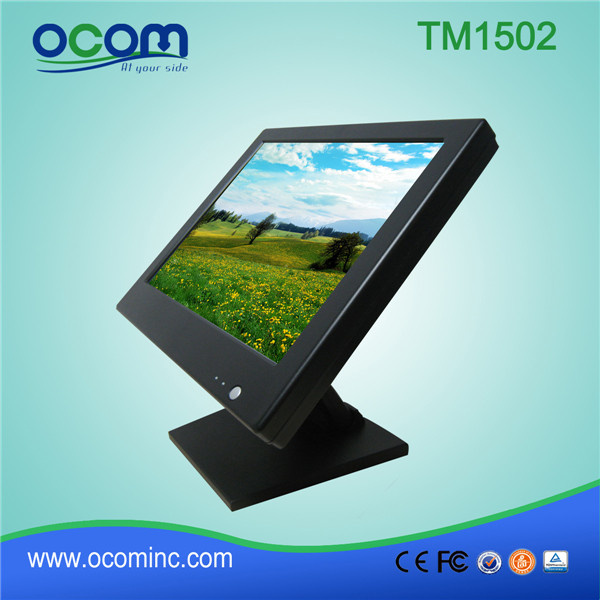

15-inch Touch Screen LCD Display
(Model No: TM1502)
SPECIFICATION:
Display,LCD Display,Touch Screen LCD Display
Description:

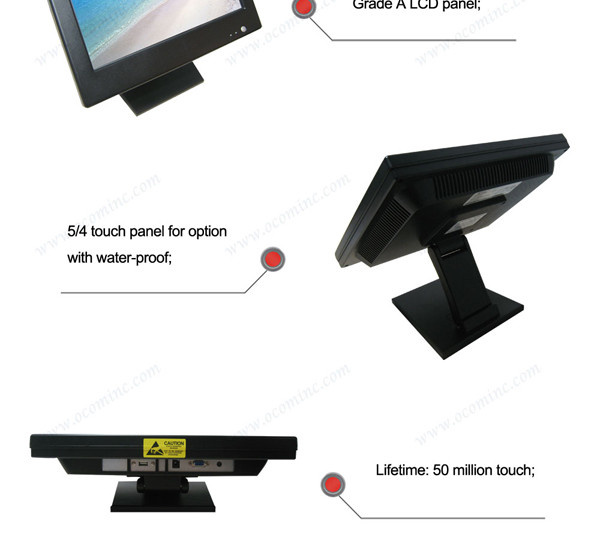

TM1502 is a 15-inch Touch Screen LCD Display with High resolution: Support 1024*768 / 1280*1024,Grade A LCD panel,5/4 touch panel for option with water-proof,Lifetime: 50 million touch.
LCD Screen Size | 15" |
Aspect Ratio | 4:3 |
Resolution | 1024×768 |
Pixel Pitch(mm) | 0.297 |
Active Area(mm) | 304.1×228.1 |
Number of colors | 16.2M |
Contrast Ratio | 700/1 |
Brightness | 250cd/m² |
Viewing Angle | 150/135 |
Response Time | 8ms |
Touch Panel Size | 15" 4-wire |
Outside Dimension | 247mm×322mm |
Viewing area | 235mm×310mm |
Active area | 228mm×304mm |
Surface Hardness | 3H |
Optical Clarity | 80% |
Operating Temperature | -10C ~60C |
Endurance Test strikes | Over 10millions |
Operating Voltage | DC5V |
Resistance | 200Ω~900Ω |
Linearity | 1.50% |
Faceplate Surface | Anti-glare coating,glare coating |
Film Thickness | 0.175mm, 0.188mm |
Glass Thickness | 0.7mm, 1.1mm,1.8mm |
Operation Pressure | 20~150g |
Storage Temperature | -30ºC ~80 ºC |
Operating Current | 5mA~25mA |
Humidity | <95% |
Isolation Resistance | 20MΩ @ DC25V |
Sealable against | Dust ,water, oil , static |
,
Product Details: Display,LCD Display,Touch Screen LCD Display
