| Prod Model: |
TM1202 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Screen Size: |
12" |
| Resolution: |
800*600 |
| Pixel Pitch(mm): |
0.1025 (H) * 0.3075 (V) mm |
| Active Area(mm): |
246.0X184.5 mm |
| Number Of Colors: |
16.2m |
| Signal Input: |
RGB (AV/TV Optional) |
| Interface: |
Parallel RGB (Video Frequency /TV Input Optiona |
| Touch Panel Size: |
12" |
| Power Consumption: |
Less Than 20W (Sleeping Mode 5W) |
| Touch The Form: |
5 Wire Resistance Touch |
| Application: |
Mobile Phone |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Widescreen: |
Widescreen |
| Response Time: |
16ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
| Screen Size: |
12'' |
| Optimum Resolution: |
800*600 |
| Type: |
LED |
Product Description

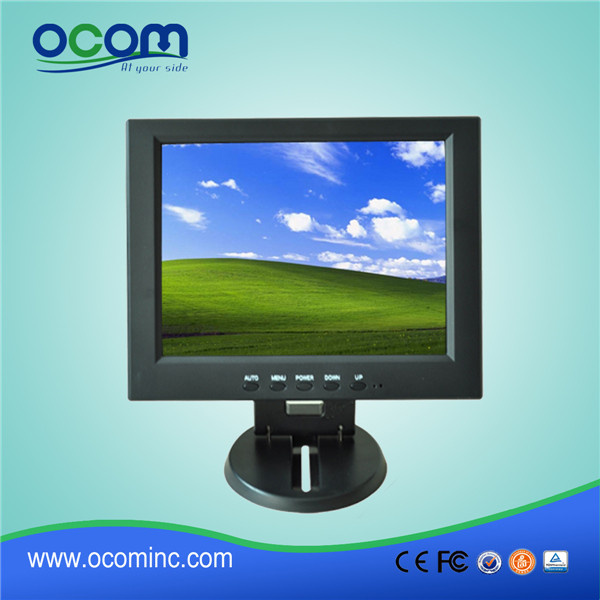

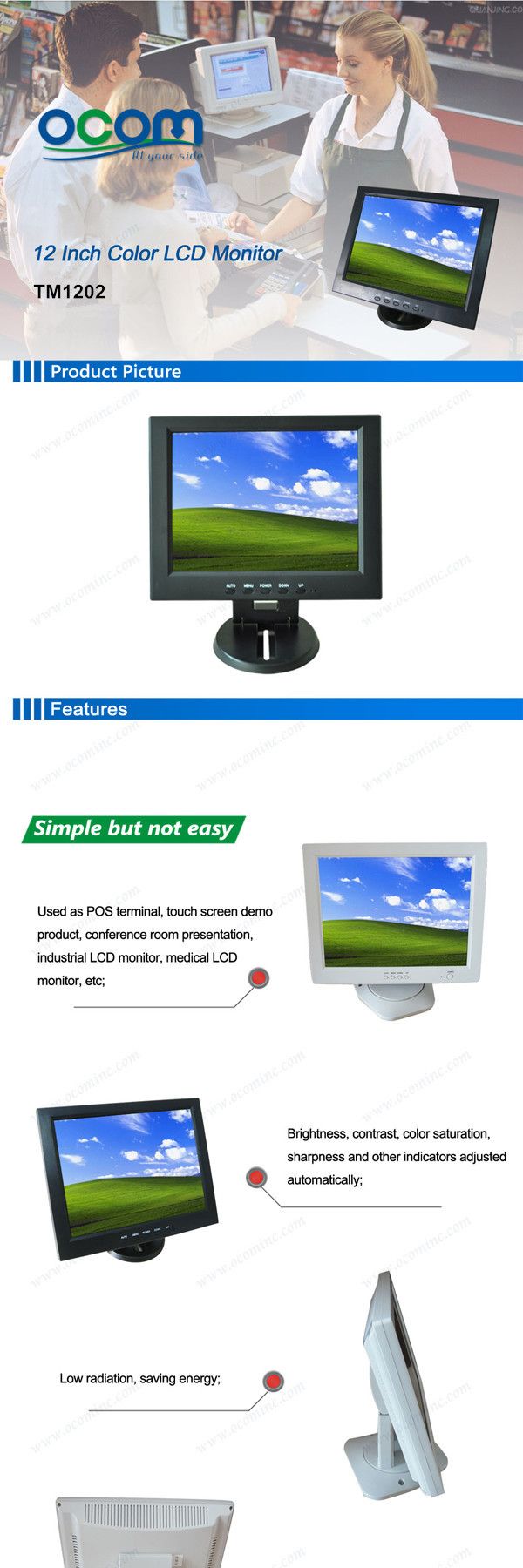

12-inch Touch Screen LCD Display
(Model No: TM1202)
SPECIFICATION:
Display,LCD Display,Touch Screen LCD Display
Description:

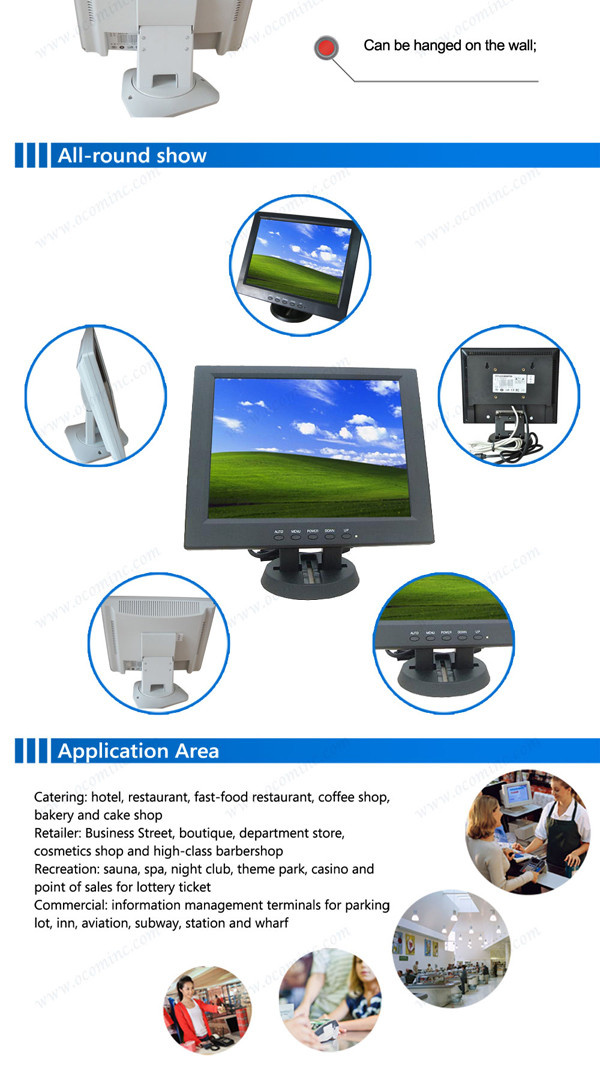

TM1202 is a 12 Inch Color Touch LED Monitor, Used as computer monitors, LED TV triple play, control LED AV combo, touch screen LED, etc, it can be hanged on the wall, have 800*600 resolution.
| Display size | 12.1" diagonal |
| Contrast ratio | 500:01:00 |
| Brightness | 400cd/m2 |
| Resolution | 800*600 |
| Response time | 16ms |
| Color depth | 16.7M |
| Line frequency | 30KHz~61KHz |
| Field frequency | 50Hz~75Hz |
| Display mode | XGA 800*600 |
| Pixel pitch | 0.1025 (H) * 0.3075 (V) mm |
| Viewing angle | -65°~+65°(U/D) ; -50°~+60°(L/R) |
| Active Area | 246.0x184.5 mm |
| Signal input | RGB (AV/TV Optional) |
| Interface | Parallel RGB (Video frequency /TV input Optional) |
| Power input | AC input, 100~240V, 50~60Hz, 3.5A be in common use |
| Power consumption | ≤20W (sleeping mode 5W) |
| Touch the form | 5 wire resistance touch |
Product Details: Display,LCD Display,Touch Screen LCD Display
