| Prod Model: |
OCBS-D9000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Android System: |
Android4.2.2 |
| Resolution: |
1280X720 Dpi, IPS |
| Battery: |
Rechargeable 3.7V,4800mAh Battery |
| Charging Time: |
5 Hours |
| Durability: |
IP54 Design |
| WLAN: |
802.11A/B/G |
| USB: |
1 Micro USB |
| Bluetooth: |
Bt 4.0 |
| RFID: |
UHF: 920-925MHz for Optional |
| Scaner: |
1d/CCD/2D |
| OS: |
Android |
| Applications: |
Military PDA |
| Internet Connection: |
WI-FI |
| Classification: |
Ultra High Frequency |
| Type: |
PDA |
| Screen Size: |
5.5-Inch |
| Memory Capacity: |
1GB Sdram; 8GB Nand Flash, Expandable 32g |
| CPU Type: |
1.3GHz Quad Core |
Product Description

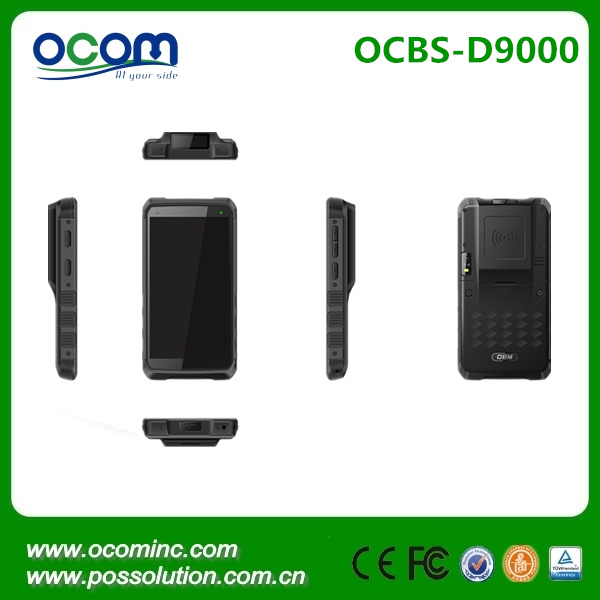

Touch screen UHF bluetooth portable mobile data collector terminal PDA with RFID reader (Model No. OCBS-D9000)
PDA, mobile terminal, data collector, handheld terminal, handheld pda
Main Feature
Android4.2.2 operation system;
1.3GHZ Qual core high speed cpu;
5.5 inches high resolution touch screen;
1GB SDRAM; 8GB NAND FLASH,Expandable 32G
2 scan button,1 power on/off button, +/- volume button
4800mAh large capacity battery;
5 million pixel; Auto-focusl,Basic
IP54 design
Bluetooth 4.0
3G: WCDMA(850/2100MHz)
GSM/GPRS/EDGE(850/900/1800/1900MHz)
Multiple configuration options freely combined
UHF: 920-925Mhz for Optional
1D Laser Barcode reader,CCD barcode reader or 2D image reader for Optional
Specification| Basic Information |
| Model: | OCBS-D9000 |
| OS: | Android4.2.2 |
| CPU | 1.3GHz Quad core |
| Memory | 1GB SDRAM; 8GB NAND FLASH, Expandable 32G |
| Display | 5.5 inches touch screen ,resolution 1280*720 dpi,IPS |
| Operating Keys | 2 scan button,1 power on/off button, +/- volume button |
| Battery | Rechargeable 3.7V,4800mAH battery |
| Charging method | Enclosed power, separate battery charger cradle |
| Charging time | 5hours |
| Dimensions | 162(W)*84(D)*23.5(H)mm,
1D Laser reader: 286g (include battery)/203g (no battery)
1D CCD reader: 283g (include battery)/200g (no battery)
2D image reader: 311g (include battery)/228g (no battery) |
| Durability | IP54 design |
| Temp. in operation | Minus 20 degrees Celsius to 60 degrees Celsius |
| Temp. in storage | Minus 30 degrees Celsius to 70 degrees Celsius |
| Humidity | 20 - 90% (non-condensing) |
| Communication |
| WLAN | 802.11a/b/g |
| USB | 1 Micro USB |
| GSM/GPRS/3G | 3G: WCDMA(850/2100MHz)
GSM/GPRS/EDGE(850/900/1800/1900MHz) |
| Bluetooth | BT 4.0 |
| Multi functions |
| RFID | UHF: 920-925Mhz for Optional |
| Scaner(1D/2D) | 1D Laser Barcode reader,CCD barcode readeror 2D image reader for Optional |
| Camera | 5 million pixel; Auto-focusl,Basic |
| GPS | GPS and A-GPS,Basic |
Why Choose US?One-stop POS and Auto-ID Related Products Supplier Qualified by Global Fortune 500 company
8 Years OEM/ODM Experience.
Top 1% Level Trade Assurance Guarantee
Tier 1 Customers Including Unilever, O2
1500+ Customers Cover 133 Countries;
FCC, CE Certificates
12+1 months wanrranty.
Belief: Integrity Based, Strive for Excellence, Win-win Cooperation
PDA, mobile terminal, data collector, RFID reader, data terminal, handheld terminal, handheld pda, android barcode scanner, handheld data terminal, handheld scanner, Android PDA, portable data collector, rfid terminal, barcode scanner wifi, industrial pda, pda device, courier pda, rugged pda, gsm barcode scanner, data collection terminal
OCOM is a leading One-stop POS and Auto-ID Related Products Supplier which is qualified by Global Fortune 500 company. We have Top 1 level Trade Assurance guarantee.
OCOM's products portfolio covers Thermal Printer, Barcode Printer, DOT Matrix Printer, Barcode Scanner, Data Collector, POS Machine and other POS Peripherals products, which are widely used for retailing, restaurant, bank, lottery, transportation, logistics, and other applications. We have CE, FCC and other required certifications.
Since established in June 2007, OCOM have been sticking to the quality system of ISO9001: 2008. We focuses on reliable products quality and competitive price. We were serving more than 1300 customers over 133 countries, 40 of them are the biggest distributors in their territory. The main market in Europe, Australia, and fast growing South America and Africa. The customer list including famous Unilever, O2, Equicom...
OCOM's mission is to be the compelling choice for our partners, based on our three basic belief "Integrity based, Strive for excellence, Win-win cooperation", we would like establish stable and reliable partnerships with customers all over the world. OEM/ODM is welcome.
Together we quest for the best.
