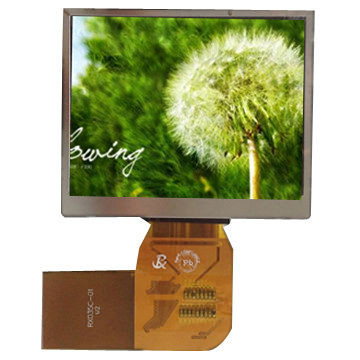

3.5 Inch Customized TFT LCD Displays with 320*240p Resolution for Learning Machine Use

3.5 Inch Customized TFT LCD Displays with 320*240p Resolution for Learning Machine Use
Price: US $ 11.5/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: T/T
Prod Model: RX035C-01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Area:70.08*52.56mm: Module Size:77.6*64.6*3.1mm
Type: TFT
Aspect Ratio: 4:3
Widescreen: Not Widescreen
Feature: LED Backlight Display
Response Time: 10ms
3D: Not 3D
Application: Learning Machine
Optimum Resolution: 320X240
Screen Size: 3.5
Interface Type: RGB

Product Description


Specfication


Model number:RX035C-01
Drive IC:SSD2119
Display mode:Normally White, Transmissive
Display colors:262K
Resolution:320*240p
Contrast ratio:400: 1
Display area:70.08*52.56mm
Module Size:77.6*64.6*3.1mm
Interface:Plug
Pin No.:50PIN
Viewing angel:60;60;60;55
Viewing Direction:12 O'clock
Backlight No.:24LED
Response Time:10/15ms
Operating temperature:-20ºC- +70ºC
Stroage temperature:-30ºC- +80ºC
Shenzhen Rogin Electronics Co., Ltd. Professional to provide cover(1.77-82)inch LCD display. Module design service. We also consentrate on Integrated Services about highlight LCD for Customization, Development, Marketing, and Sales. Our company has a lot LCD system brightening technology patents advantages. Comprehensive ISO9001 series of quality management system, product process in strict accordance with the requirements of RoHS and WEEE Directives control. Ensure that every product and process have been effectively controlled.

ROGIN Founded in 2009, have 200 employers, 30 high-end R & D person. We have two automated lines to produce highlight LCD display 10 million units, 500 million LCD modules. The Network marketing spread all over the world, products are widely used in outdoor digital signage, CCTV LCD monitor, 3D LCD TV, military vehicle displays, outdoor handheld GPS, golf course - bus station - Subway station display devices and communications electronics, mobile digital instrument, household appliances and other fields.

We represent our country to develop flat panel and high brightness screen industry. Try to build our company into a high-tech, high-efficiency, international, and modern first-class enterprise.
