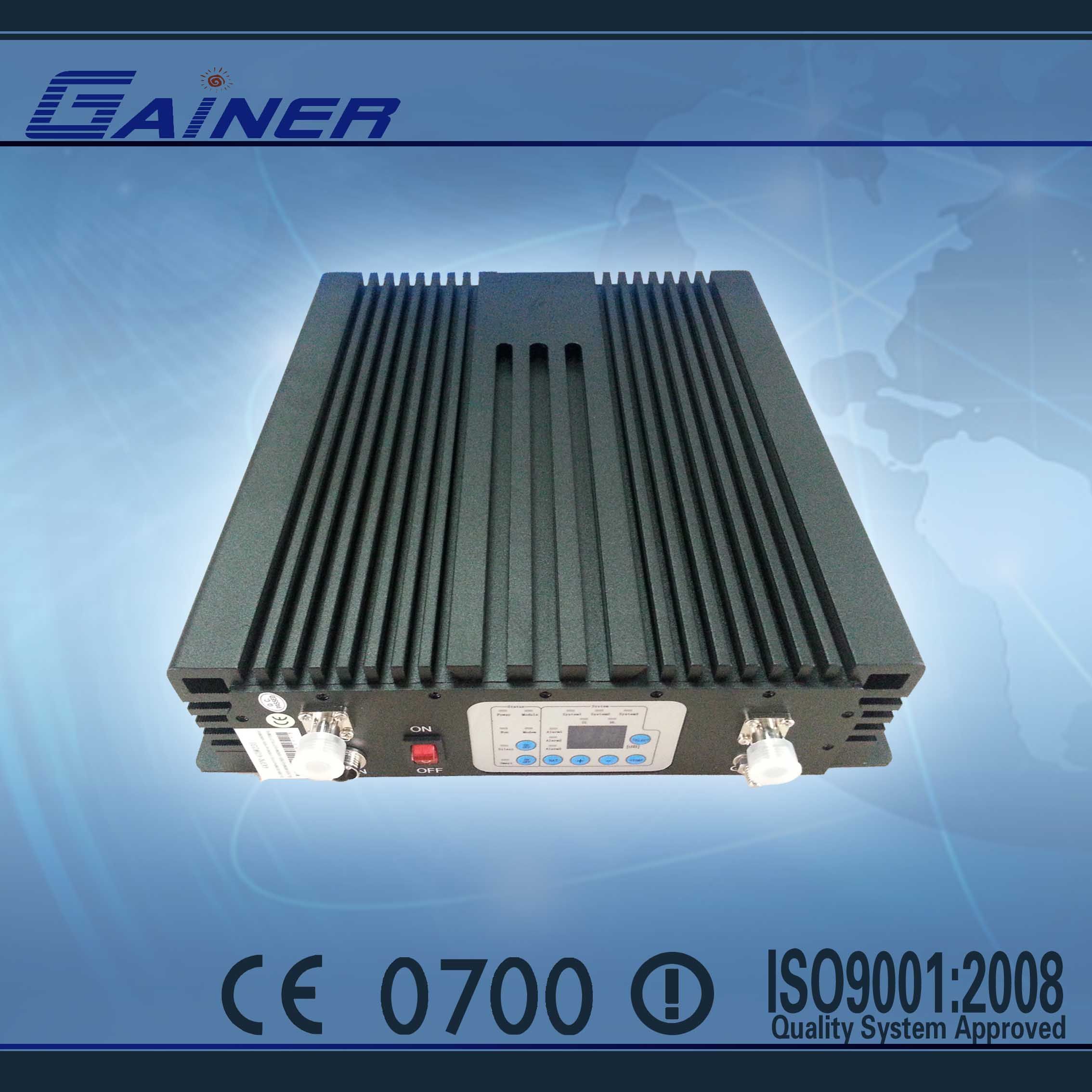

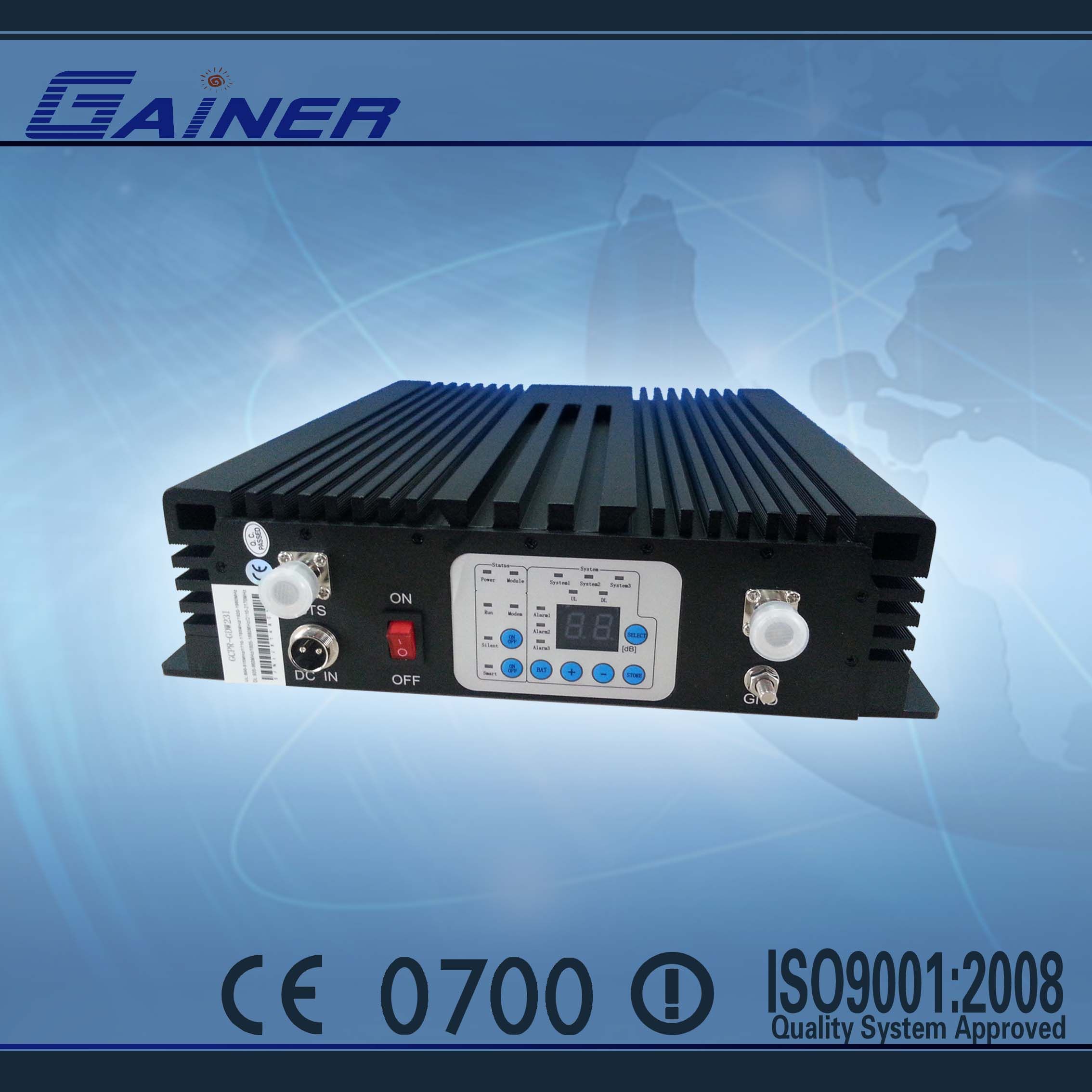

20dBm GSM WCDMA Dcs Triband Home Use Power Amplifier
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GCPR-GDW20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Type: |
Indoor, Small Size,Easy to Install |
| Technic Advantage: |
Alc&Agc |
| Certificate: |
CE |
| Certification: |
CE |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Condition: |
New |
| Standard: |
Standard |
Product Description
1, Antenna isolation testing
2, Automatic gain control
3, Intelligent mode setting
4, Low interference
5, Prevent the oscillation
6, Cost-effective for practical solutions
7, Support MGC
| Electrical Specification | Model Number: GCPR-GDW20 |
| GSM&DCS | Uplink | Downlink |
| Frequency Range | GSM Band | 890-915MHz | 935-960MHz |
| DCS Band | 1710-1785MHz | 1805-1880MHz |
| Maximum Gain | ≥65dB |
| Gain Flatness | ≤6dB(P-P) |
| Output Power | ≥18dBm/ total output power | ≥20dBm/ total output power |
| Intermodulation Products | 9KHz~1GHz | ≤-36dBm |
| 1GHz~12.75GHz | ≤-30dBm |
| Spurious Emission | 9KHz~1GHz | ≤-36dBm |
| 1GHz~12.75GHz | ≤-30dBm |
| WCDMA | Uplink | Downlink |
| Frequency Range | 1920-1980MHZ | 2110~2170MHz |
| Maximum Gain | ≥65dB |
| Gain Flatness | ≤2dB/3.84MHz |
| Output Power | ≥18dBm/ total output power | ≥20dBm/ total output power |
| Spectrum Emission Mask | 2.515≤f_offset<2.715MHz | ≤-22dBm/30KHz |
| 2.715≤f_offset<3.515MHz | ≤-22dBm-15×(f_offset/MHz-2.715)dB/30KHz |
| 3.515≤f_offset<4.0MHz | ≤-34dBm/30KHz |
| 4.0≤f_offset<8MHz | ≤-21dBm//1MHz |
| 8MHz≤f_offset | ≤-25dBm/1MHz |
| ACRR | 20dBc/30KHz@±5MHz |
| 20dBc/30KHz@±10MHz |
| Frequency Stability | ≤±0.01ppm |
| Error Vector Magnitude | ≤12.5% |
| Peak Code Domain Error | ≤-35dB@Spreading Factor 256 |
| GSM&DCS&WCDMA |
| Automatic Gain Control | ≥20dB |
| Max. Input Power Without Damage | ≥0dBm |
| Noise Figure | ≤8dB |
| VSWR | ≤2.0 |
| Group Delay | ≤4.5μs |
| Power Consumption | ≤45W |
| Power Supply | DC 5A/9V |
| Mechanical specification |
| Dimensions | 282*334*118mm |
| Weight | ≤12kg |
| I/O Connector/ Impedance | N-female / (Nominal)50Ω |
| Environmental specification |
| IP Rating | IP30 |
| Operating Temperature | -10ºC~50ºC |
