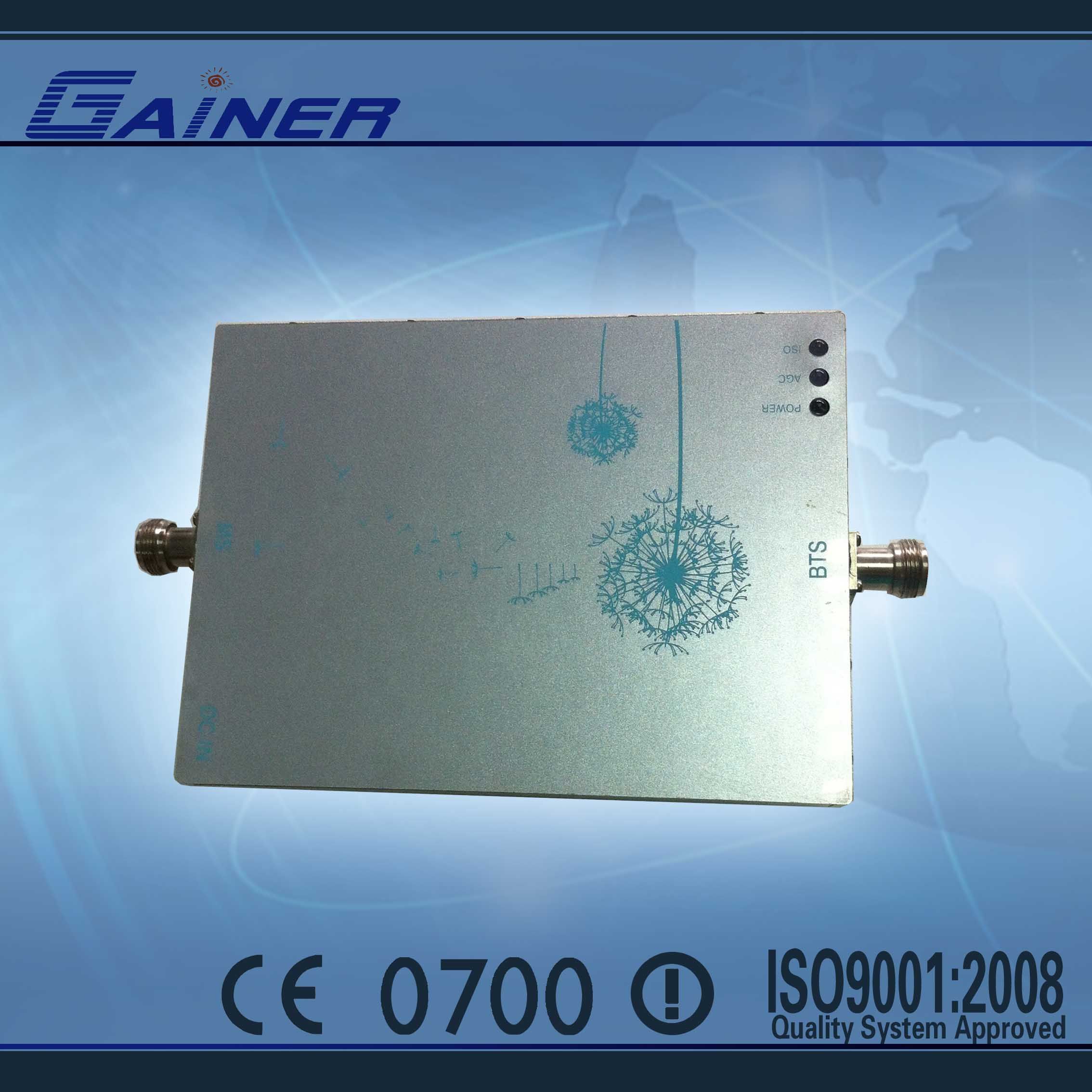

20dBm 60db Cover Iden High Quality Power Amplifier
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
GCPR-I20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Type: |
Indoor, Small Size |
| Technic Advantage: |
Alc&Agc |
| Certificate: |
CE |
| Certification: |
CE |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Condition: |
New |
| Standard: |
Standard |
Product Description
Features:
1. With Oscillation Detective Indicate Function;
2...With Uplink/Downlink auto gain synchronization, can adjust the UL/DL gain;
3. High gain, easy installation and operation.
4. Use ALC and AGC technology, adjust extent automatically.
5. LED Light Working & Signal Condition Indicators.
6. Dependability stand by GB6993-86 standard.
7. Compatibility of electromagnetism according with ETS300 609-4.
| Model Number | GCPR-I20 |
| Frequency | UL:806-821Mhz DL: 851-866 Mhz |
| Gain | ≥60dB |
| Automatic Level Control | ≥20dB |
| Noise Figure | ≤5dB |
| Gain Flatness | ≤8dB (p-p), |
| Automatic Gain Control | 30dB in step of 1dB (Auto) |
| Output Power(Max) | UL≥20dBm DL≥20dBm |
| Input Power Range | ≤-25 dBm |
| IM3 | ≤-45dBc |
| Spurious Emission | 9KHz~150KHz | ≤-36dBm @ 1KHz |
| 150KHz~30MHz | ≤-36dBm @ 10KHz |
| 30MHz~1GHz (out of band) | ≤-36dBm @ 100KHz |
| 1GHz~6.7GHz | ≤-36dBm @ 1MHz |
| Group Delay | UL≤1μs |
| Operating voltage | AC 220V |
Gainer International (China) Limited is a professional enterprise which specialized in wireless communication products, customer electronics products. We are highly developing enterprise, with CE certificate and GB/T19001-2008 /ISO 9001: 2008. We spare no effort to provide good products and service for customers all over the world.
We mainly produce signal repeater, booster of GSM, CDMA, DCS, WCDMA, IDEN, LTE CDMA450M, also other correlative products. We manufacture products by our own R&D team which was formed by experienced exports in related fields. Our design and manufacture can follow customers' special requirements.
We dedicate to provide the most satisfactory services for our customer. We aim to provide more competitive products and meet the needs of high-speed developing market.
Our products have been sold to the worldwide markets like USA, Italy, the Netherlands, New Zealand, France, Switzerland, Ireland, Russian, Spain, Poland, UK, South Africa, Brazil, Mexico, Saudi Arabia, Jordan, Indonesia, Malaysia, India, UAE, Iceland, Australia, Czech Republic, Kyrgystan, and more.
We ensure to offer the best quality and the lowest price to help you to develop your market, Hope to built up long term business relation with you.
Cooperate with Gainer International, you will be the gainer of the world, we are waiting for you!
