| Prod Model: |
PR100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Home Amplifier |
| Usage: |
AV |
| Used For: |
Civilian |
| Tube Type: |
IC Amplifier |
| Function: |
Post Amplifier |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
D |
| Sound Channel: |
1channel |
| Output Number: |
2 |
| Voltage: |
AC220V or AC110V |
Product Description

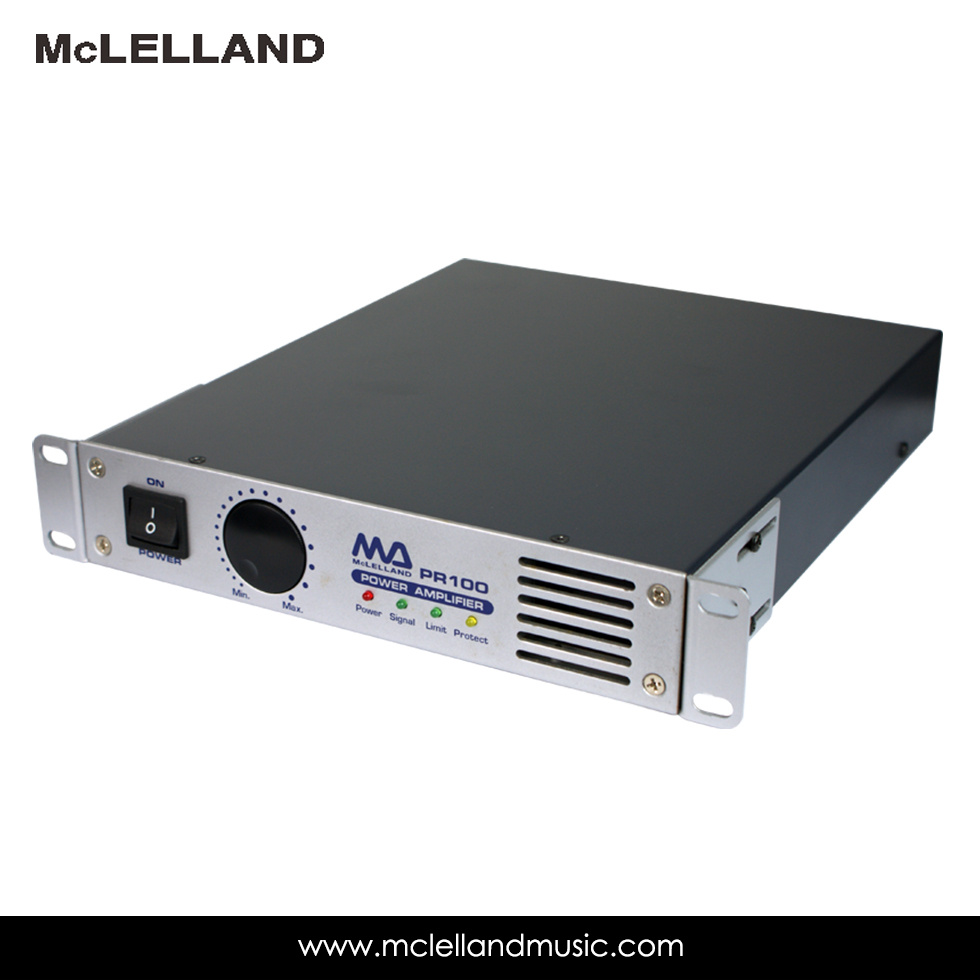

Power Amplifier(PR100)
Features:
High performance for studio and installation
Automatic Variable Speed internal cooling system uses the front
1/4" Phone & XLR input jacks with electronically balanced low or high impedance operation.
Signal LED to assist in hookup and trouble shooting
Circuit Protection
Half rack size, Mono Amplifier, 75W output power at 8 ohm
Specification:
Freq Response (-0.5dB): 22Hz-45KHz
Hum & Noise (S/N+A): 86
THD (1KHz, 4Ω ): 0.04%
THD (20Hz-20kHz, 4Ω ): 0.07%
Damping Factor (4Ω ): 100
Input impedance: >20kΩ
Input sensitivity (VRMS Sine): 0.22V
Power Consumption (TYP): 400W
Protection: Yes
Output Connectors: 5Way Binding Posts
Rack Spaces: 1U
Transformer: Toroidel Transformer
Dimensions(WHD): 242 x 44 x 290mm
Weight: 4Kgs
