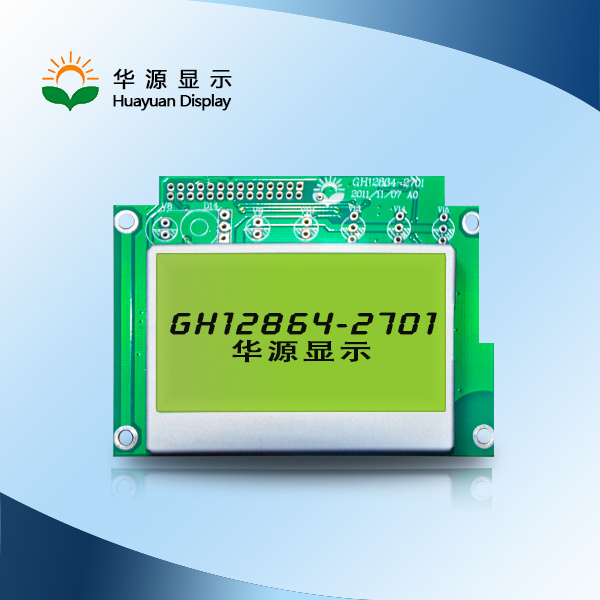

| Prod Model: |
GH12864-2701 |
| Screen Size: |
2.7"(Diagonal) |
| Display Type: |
Stn |
| Driver Mode: |
1/64 Duty 1/9 Bias |
| Viewing Direction: |
6 O'clock |
| Driver IC: |
St7565r or Compatible IC |
| Viewing Area: |
60.5 X 33.0 mm |
| Active Area: |
55.01X 27.49 mm |
| Outline Dimension: |
82.20 X 60.42X 11.35mm Max. |
| Backlight: |
LED, Y/G |
| Number Of Dots: |
128 X 64 |
| Usage: |
Test LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Character |
| Response Time: |
5ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
| Touch Screen Type: |
No Touch |
Product Description
Specification:
| Screen size | 2.7"(Diagonal) |
| Display color | Display color:Black
Background color:Y/G |
| Type | STN |
| View angle direction | 6'clock |
| Driver mode | 1/64 DUTY 1/9BIAS |
| Backlight | LED Y/G |
| Driver IC | ST7565R or compatible IC |
| Number of Dots | 128 x 64 |
| Dot size | 0.4 x 0.4mm |
| Dot pitch | 0.43 x 0.43mm |
| Viewing size | 60.5 x 33.0mm |
| Active area | 55.01x 27.49mm |
| Outline dimension | 82.20 x 60.42x 11.35mm Max. |
