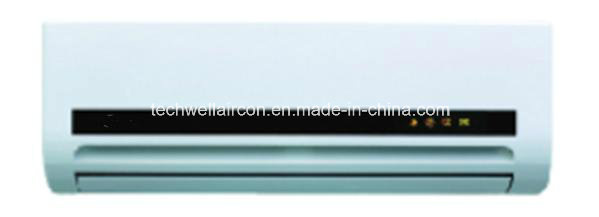

Wall Mounted Type Vrf Air Conditioner
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CMV-V***G/HR1-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Certification: |
CE |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
7000BTU to 24000BTU |
Product Description
VRF air conditioners wall mounted type evaporating units
-Power supply: 220~240V/1pH/50Hz, 208~230V/1pH/60Hz
-Cooling capacity: 2.2kw to 7.1kw
-Standard controller: Remote controller
-Flexible installation
| Wall-mounted Unit (EXV is integrated) |
| Model name | Power type | Capacity | Motor input | Air flow | Sound Level | ESP | Dimension (W×H×D) | Weight | Connecting pipe | Standard controller |
| Cooling | Heating | Packing | Body | packing | Panel | Body | Gross | Gas | Liquid | Drain |
| kW | kBtu/h | kW | kBtu/h | kW | m3/h | CFM | dB(A) | Pa | mm | mm | mm | mm | kg | kg | mm | mm | mm |
| CMV-V22G/HR1-B2 | 50Hz | 2.2 | 7.5 | 2.5 | 8.5 | 0.06 | 540 | 320 | 24~33 | / | 973×367×290 | 900×282×205 | / | / | 12 | 14 | Ø9.53 | Ø6.35 | Ø20 | Remote controller |
| CMV-V22G/HNR1-B2 | 60Hz |
| CMV-V28G/HR1-B2 | 50Hz | 2.8 | 9.5 | 3.2 | 10.9 | 0.06 | 540 | 320 | 24~33 | 973×367×290 | 900×282×205 | 12 | 14 |
| CMV-V28G/HNR1-B2 | 60Hz |
| CMV-V36G/HR1-B2 | 50Hz | 3.6 | 12.2 | 4.0 | 13.6 | 0.06 | 600 | 360 | 24~33 | 973×367×290 | 900×282×205 | 12 | 14 | Ø12.7 |
| CMV-V36G/HNR1-B2 | 60Hz |
| CMV-V45G/HR1-B2 | 50Hz | 4.5 | 15.3 | 5.0 | 17 | 0.06 | 780 | 460 | 33~40 | 973×367×290 | 900×282×205 | 12 | 14 |
| CMV-V45G/HNR1-B2 | 60Hz |
| CMV-V56G/HR1-B2 | 50Hz | 5.6 | 19.1 | 6.2 | 21.1 | 0.06 | 1000 | 590 | 33~40 | 1135×382×308 | 1080×304×221 | 16 | 18 |
| CMV-V56G/HNR1-B2 | 60Hz |
| CMV-V71G/HR1-B2 | 50Hz | 7.1 | 24.2 | 7.8 | 26.6 | 0.06 | 1000 | 590 | 37~44 | 1135×382×308 | 1080×304×221 | 16 | 18 | 15.9 | 9.53 |
| CMV-V71G/HNR1-B2 | 60Hz |
Tech Well Industries Co., Limited is a professional supplier of HVAC products. Tech Well focus on offering wide range solution of products to serve our clients' need. Our products lines includes different types HVAC equipment:
- Central air conitioning, includes Water cooled water chiller, air cooled screw water chiller, air cooled modular chiller, ground source heat pump, different types of fan coil units, and air handling units.
- Commercial air conditioning, including Rooftop air conditioners and VRF air conditioning systems.
- Variety types of mini-split air conditioners such as wall mounted split type, floor standing type, cassette type, floor ceiling type, duct type, etc.
- Tech Well offers industrial dehumidifiers as well, Including Concealed duct type, floor standing type and handle mobile type.
Wide Range portfolio provides complete solution on requirement of different projects. Tech Well promises to provide high quality products, rapid reply and support to clients, OEM and ODM manufacturing to our clients.
Tech Well's products are selling world wide, our main markets are Europe, Asia, Middle East, South America, and Africa. With high products quality, Tech Well's products are highly welcomed by his customers.
For providing a better service to our clients, Tech Well will offer outsourcing service on accessaries. Tech Well can help sourcing water pumps, pre insulated air duct panels, air dampler, fire dampler air curtain, air grilles and diffusers, PPR pipe, valves for water system, etc, to provide complete air conditioning and ventilation products and accessories support our clients, so as to offer our customers a carefree and one stop buying from Tech Well.
Tech Well always aim to offer high quality products with reasonable price to support our clients. As our slogan Says "Well Technology, Well Satisfactory", we will Make our best to satisfy your requirement With our technological products.
Hope to build up nice cooperation with you!
