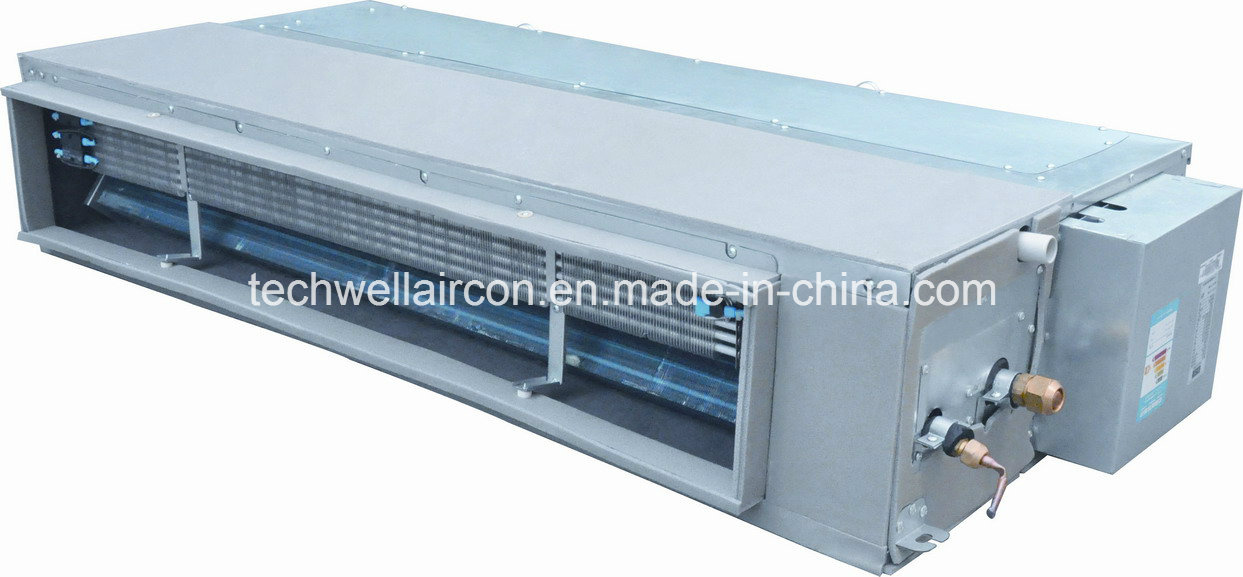

CE Esp70PA R410A Duct Type Air Conditioner
| Price: |
US $ 100-900/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CTB-xxHR1 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| Capacity: |
18000-24000 BTU |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description
Duct type air conditioner Ultra thin boday, thickness 260mm
Static Pressure: 70PA
Capacity: 18000BTU-60000BTU
Gas type: R410A
Power supply: 220V/50Hz
Approval: CE, RoHS
Specification| Model | CTB-18HR1 | CTB-24HR1 | CTB-36HR1 | CTB-48HR1 | CTB-60HR1 |
| Indoor power supply | V/Ph/Hz | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz |
| Cooling | Capacity | Btu/h | 18000 | 24000 | 36000 | 48000 | 60000 |
| KW | 5.3 | 7.1 | 10.5 | 14 | 16 |
| Input | W | 100 | 300 | 400 | 420 | 420 |
| Rated current | A | 0.45 | 1.36 | 1.82 | 1.91 | 1.91 |
| EER | W/W | 2.69 | 3.12 | 2.65 | 2.67 | 2.65 |
| Heating | Capacity | Btu/h | 19800 | 26400 | 39600 | 52800 | 66000 |
| KW | 5.8 | 7.8 | 11.6 | 15.4 | 17.6 |
| Input | W | 100 | 300 | 400 | 420 | 420 |
| Rated current | A | 0.45 | 1.36 | 1.82 | 1.91 | 1.91 |
| COP | W/W | 3.30 | 3.32 | 3.18 | 2.83 | 2.72 |
| Indoor air flow(Hi/Med/Lo) | m 3 /h | 1010/840/700 | 1350/990/8500 | 2260/1880/1500 | 2820/2370/1930 | 2820/2370/1930 |
| ESP |
| 70 | 70 | 70 | 70 | 70 |
| Indoor noise level(Hi/Med/Lo) |
| 38/36/34 | 42/39/36 | 44/41/37 | 45/42/38 | 45/42/38 |
| Indoor unit | Net dimension (W*H*D) | mm | 1189×260×663 | 1189×260×663 | 1425×260×663 | 1425×260×663 | 1425×260×663 |
| Net packing (W*H*D) | mm | 1255×330×730 | 1255×330×730 | 1490×330×730 | 1490×330×730 | 1490×330×730 |
| Net/Gross weight | kg | 32/36 | 32/36 | 44/48 | 44/48 | 44/48 |
| Refrigerant type |
| R410A | R410A | R410A | R410A | R410A |
| Refrigerant piping | Liquid side/Gas side | mm | Φ6.35/Φ12.7 | Φ9.52/Φ15.88 | Φ9.52/Φ19.05 | Φ9.52/Φ19.05 | Φ9.52/Φ19.05 |
| Drainage pipe | mm | 30 | 30 | 30 | 30 | 30 |
| Connection wiring | Power Supply |
| From indoor unit | From outdoor unit | From outdoor unit | From outdoor unit | From outdoor unit |
| Indoor power wiring | mm 2 | 2.5 | 1.0 | 1.0 | 1.0 | 1.0 |
| Signal wiring | mm 2 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Controller |
| Wired controller(remote controller for option) |
| Operation temp | °C | 16 ~ 32 | 16 ~ 32 | 16 ~ 32 | 16 ~ 32 | 16 ~ 32 |
| Ambient temp | °C | -7 ~ 43 | -7 ~ 43 | -7 ~ 43 | -7~ 43 | -7 ~ 43 |
| Application area | m 2 | 20-35 | 28-50 | 40-70 | 55~95 | 60~105 |
| Stuffing Quantity(20'/40'/40'HQ) | set | 75/165/189 | 75/165/189 | 75/165/168 | 75/165/168 | 75/165/168 |
