| Prod Model: |
KFR-**GW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Inverter Air Conditioner |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Certification: |
GS |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
9000BTU to 24000BTU |
Product Description

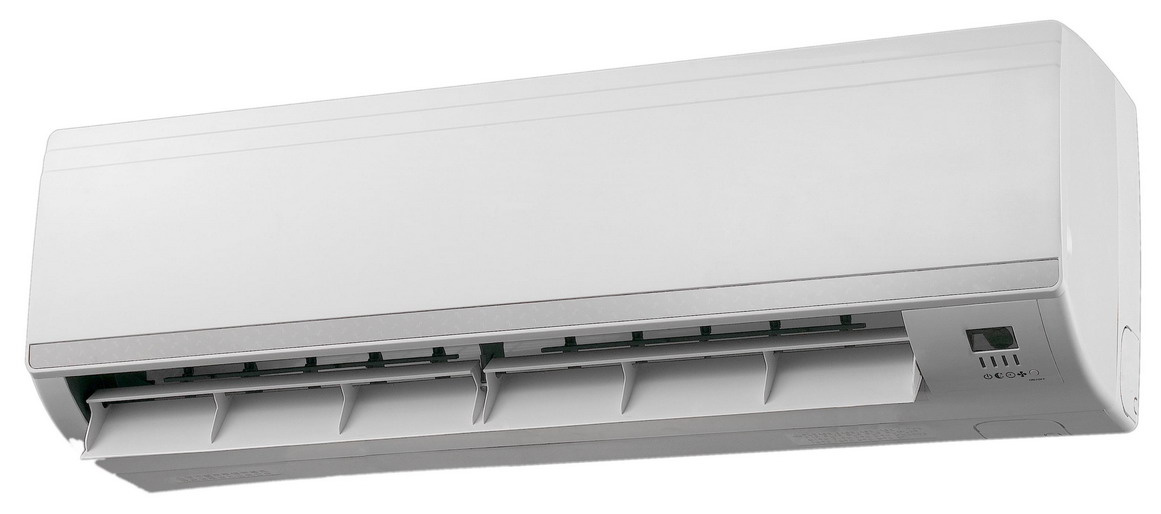

Wall-mounted split type air conditioner
Capacity: 9000BTU -30000BTU
Gas type: R410A, R22
Cooling only or cool & heat type
Power supply: 220V/50Hz, 220V/60Hz, 110V/60Hz
Approval: CE, RoHS, ETL, CB
Quick connection kits optional.
| Model No. | KFR-25GW/IBY | KFR-32GW/IBY | KFR-50GW/IBY | KFR-70GW/IBY |
| Power supply | 220-240V~/50Hz/1Ph |
| Cooling capacity | Btu/h;W | 9000 (3800~10500) | 12000 (5200~13500) | 18000 (5500~20000) | 24000 (6800~25600) |
| Heating capacity | Btu/h;W | 10250 (4200~13000) | 13800 (5500~16500) | 20000 (4500~24000) | 24500 (7200~29000) |
| EER | W/W | 3.7 | 3.72 | 3.24 | 3.21 |
| COP | W/W | 3.63 | 3.93 | 3.2 | 3.21 |
| Moisture removal | Liters/h | 0.8 | 1 | 2 | 2.5 |
| Indoor air circulation Cooling/heating | m3/h | 530/500 | 760/700 | 750/850 | 1000/1100 |
| Indoor noise level at cooling | High | dB(A) | 38 | 42 | 42 | 47 |
| Med. | dB(A) | 36 | 37 | 40 | 45 |
| Low | dB(A) | 33 | 34 | 38 | 42 |
| Outdoor noise level | dB(A) | 52 | 55 | 58 | 62 |
| Current | Cooling | A | 3.3(1.4~4.8) | 4.3(1.8~6.1) | 7.4(2.4~10.2) | 10.0(2.8~10.6) |
| Heating | A | 3.8(1.4~5.6) | 4.7(1.8~7.7) | 8.3(2.1~11.1) | 10.2(3.0~12.1) |
| Power input | Cooling | W | 715(300~1050) | 945(400~1350) | 1630(520~2250) | 2190(620~2340) |
| Heating | W | 825(300~1220) | 1030(400~1700) | 1830(470~2450) | 2240(660~2650) |
| Annual energy consumption | kwh (cooling) | 357.5 | 472.5 | 815 | 1095 |
| Refrigerant |
| R410A |
| Compressor | Type | Rotary |
| Net dimensions (W x H x D) | Indoor | mm | 770x240x180 | 898x280x202 | 898x280x202 | 1033x313x202 |
| Outdoor | mm | 760x552x256 | 760x552x256 | 820x605x300 | 900×805×360 |
| Net weight | Indoor | kg | 8 | 11 | 11 | 14 |
| Outdoor | kg | 33 | 34 | 42 | 61 |
| Packing dimensions (W x H x D) | Indoor | mm | 855×305×255 | 995x400x300 | 995x365x298 | 1103x400x300 |
| Outdoor | mm | 863x598x376 | 863x598x376 | 965x650x438 | 1031×925×447 |
| Gross weight | Indoor | kg | 10 | 14 | 14 | 17 |
| Outdoor | kg | 36 | 38 | 46 | 66 |
| Connecting Pipe | Gas | mm | 3/8'' | 1/2'' | 1/2'' | 5/8'' |
| Liquid | mm | 1/4'' | 1/4'' | 1/4'' | 3/8'' |
| Suitable area | m2 | 9-16 | 15-23 | 25-40 | 30-50 |
| Loading Capacity | 20'/40'/40'HC | 100/225/255 | 100/225/255 | 75/160/175 | 51/110/128 |
