| Prod Model: |
VRX915M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Vrx915m |
| Power Rating: |
800 W / 1600 W / 3200 W |
| Frequency Range: |
60 Hz - 20 kHz |
| Frequency Response: |
70 Hz - 20 kHz |
| Coverage Pattern: |
50° X 90° Nominal |
| Crossover Modes: |
Bi-AMP / Passive |
| Crossover Frequency: |
1.1 kHz |
| Enclosure: |
18 mm, 11-Ply Birch Plywood |
| Hf Driver: |
1 X2431h (3 Inch) Neodymium Driver |
| Lf Driver: |
1X2265HPL(15inch) Neodymium Woofer |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Certification: |
RoHS |
| THD: |
<0.005% |
| Speaker Material: |
Birch Plywood |
| Application: |
Professional Performance |
Product Description
Vrx915m Sound PRO Speaker Stage Monitor Loudspeaker
15 in. Two-Way Stage Monitor
Lightweight 15" two way touring-class floor monitor
Stage monitor
monitor speaker
pa system
sound system
pro audio
The VRX915M is a dedicated, compact and lightweight 15" two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL's latest neodymium-magnet transducers.
Features:
--Compact and low-profile for minimal obstruction of audience sightlines
--50° X 90° Nominal coverage
--Bi-amplified or full-range passive operation
--Differential Drive® Woofer with neodymium magnet for high power capacity and very light weight
--1.5" (voice coil) diameter compression driver with neodymium magnetSpecifications: | Specifications: | |
| | |
| Power Rating: | 800 W / 1600 W / 3200 W |
| Frequency Range: | 60 Hz - 20 kHz |
| Dimensions: | 629 mm x 432 mm x 324 mm (375 mm stage height) |
| (H x W x D) | |
| Frequency Response: | 70 Hz - 20 kHz |
| Coverage Pattern: | 50° x 90° nominal |
| Crossover Modes: | Bi-amp / passive |
| Crossover Frequency: | 1.1 kHz |
| System Maximum SPL: | 127 dB SPL continuous (133 dB SPL peak) |
| System Sensitivity (1w @ 1m: | 98 dB SPL |
| LF Driver: | 1 x 2265HPL 380 mm (15 in) Differential Drive woofer 8 Ohms |
| | neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| HF Driver: | 1 x 2431H, 3" diaphragm, neodymium compression driver |
| Nominal Impedance: | Passive: 8 ohm |
| Bi-amp LF: 8 ohm |
| Bi-amp HF: 8 ohm |
| Enclosure: | 18 mm, 11-ply birch plywood |
| Finish: | Black DuraFlex finish |
| Grille: | Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing |
| Input Connectors: | Speakon NL-4 (x2), one on each end |
| Net Weight: | 21 kg (46 lb) |

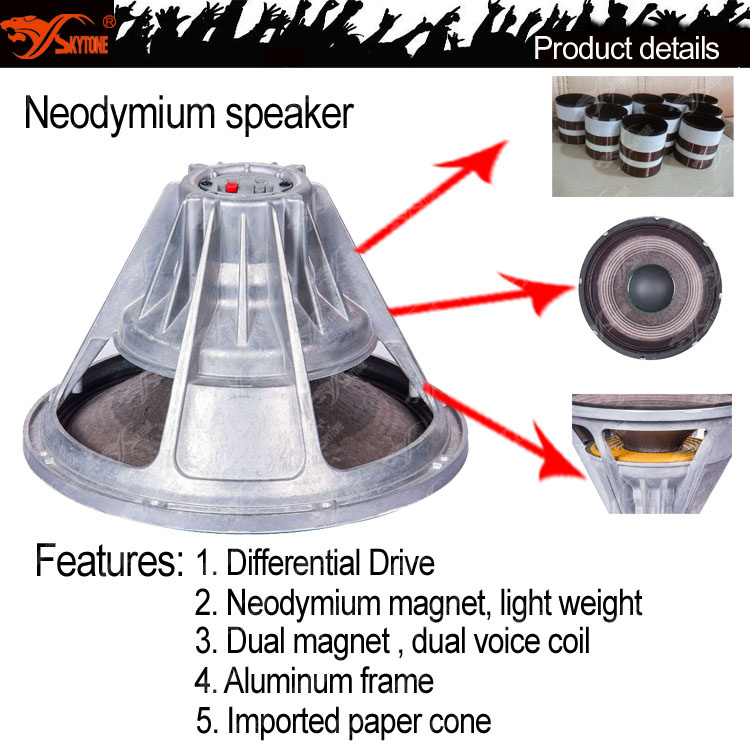

Inside woofer
This goods has passed European standard ECM CE certificate:
Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake.
We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.
Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
