| Prod Model: |
I-tech 12000 |
| Amplifier Type: |
Digital Power Amplifier Class D |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
2400watts |
| Sensitivity(1W/1m): |
1.55V |
| Channels Number: |
2 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Conductive Mode: |
D |
| Function: |
Digital Power Amplifier |
| Usage: |
Professional Performance |
| Output Number: |
2 |
| Sound Channel: |
2 |
Product Description
Why choose skytone audio?
1. Quality is our culture.
2. With us your money in safe, your business in safe.
3. Providing with exceptional service, saving your time and money.
4. One of market leader for audio business since 2004.
5. Direct factory provides you factory price, no middle man.

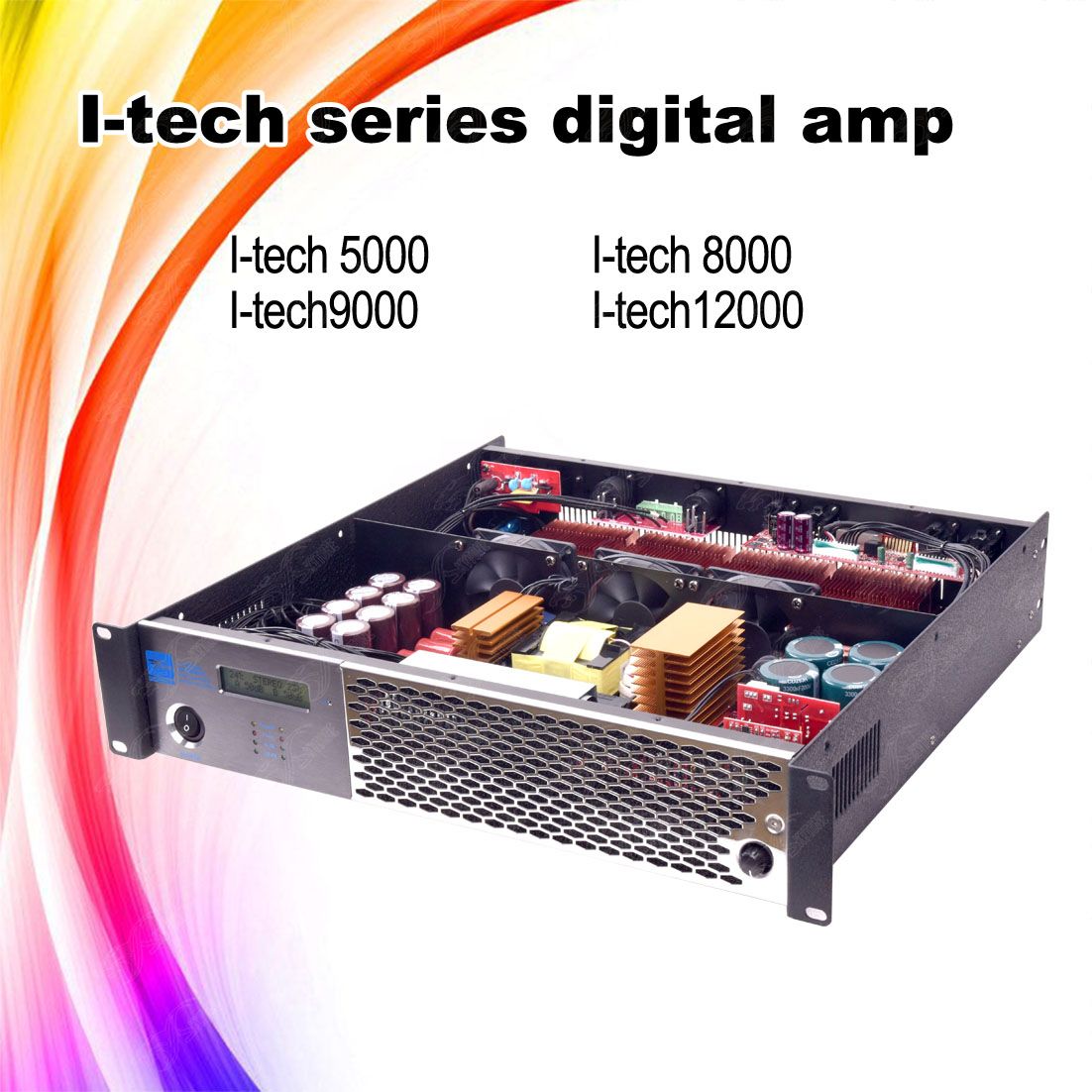

I-tech 12000 Class d Professional power amplifier This series amplifier is the new designed amplifier of Skytone audio, it's switch power supply digital ammplifier, lightweight with high performance, more efficient than transformer power amplifier.

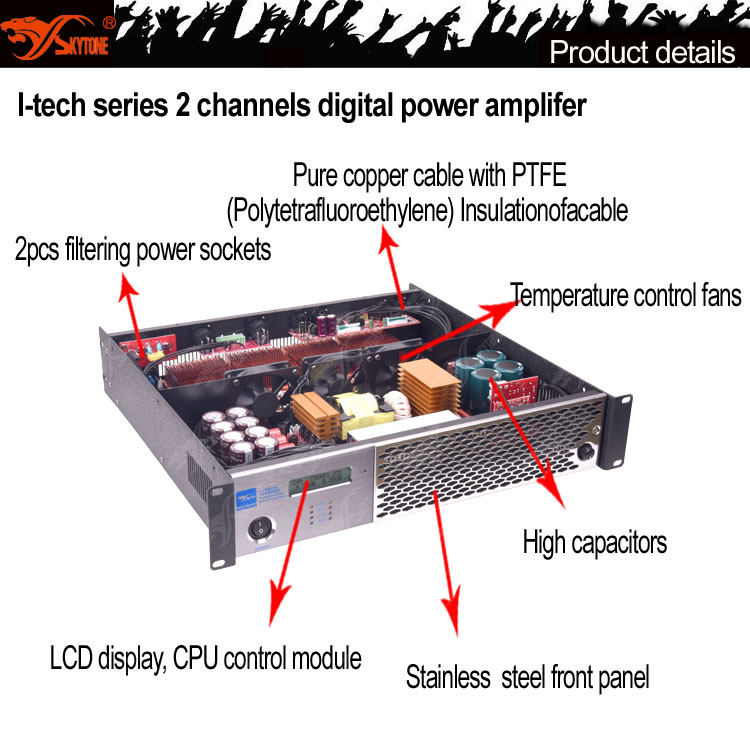

Skytone 12 years experience provide you professional products and service. Features:1. LCD display: Can help you to check the amplifier temperature and how long time used.
2. Filtering power plug: Connecting wireless microphone, mixer, processor ect, have filtering function.
3. Cables: Using Polytetrafluoroethene(PTFE) cables, high temperature, resistance heavy current, Non- Oxidation for long time using.
4.Using Advanced Welding Procedure,preventing oxidation and poor connect, fuse for preventing DC overload
5.JICON large volume capacitor from listed state-owned enterprise, wide frequency
6.powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency
7.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
High power extreme professional power amplifier specifications:| Technical Specification | I-Tech12000HD |
| PMPO(peak ) | 2 ohms Stereo Dual | 8600 |
| 4 ohms Stereo Dual | 7200 |
| 8 ohms Stereo Dual | 3600 |
| Rated power(20Hz-20KHz) | 2 ohms Stereo Dual | 5760 |
| 4 ohms Stereo Dual | 4800 |
| 8 ohms Stereo Dual | 2400 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775v |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment
according to changing
temperature |
| Size(WXHXD) | 46cm X 48.5cm X9.5cm |
| Net Weight | 10.4kg |
| After-sales service | 3 years Warranty (non-artificial Damage) |
Product details:

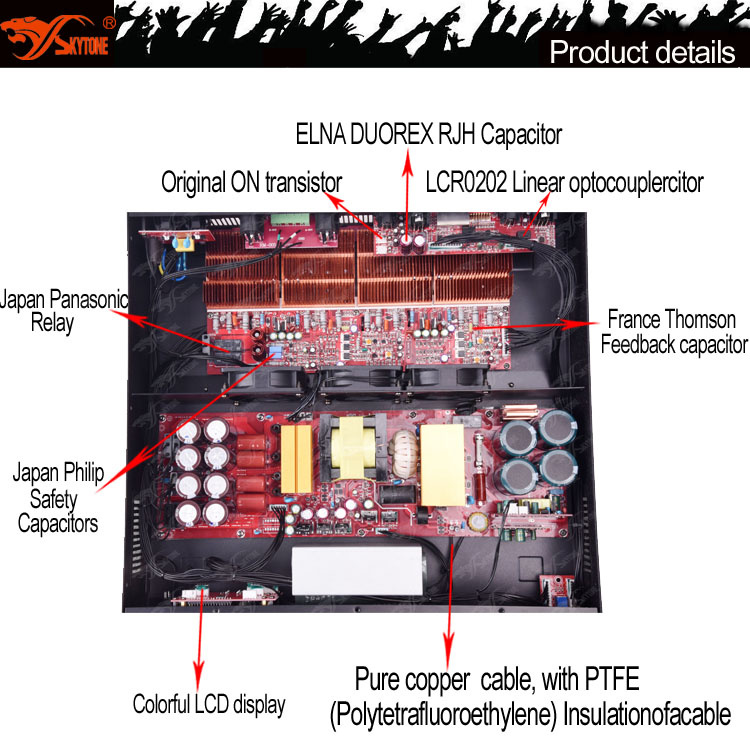

Details informations for the componments:
1.Pure copper , high-power output inductor :
Function:Ensure output having a large dynamic range
2.High-class French Thomson feedback capacitor
Function:It is important for the subtleness and width of mid-high frequency .
3.Original On Semi compound zener-transistor
Function: stabilized voltage power-supply of preceding stage
4.ELNA DUOREX RJH hifi capacitor (purple body with gold letter, transparent sound, moderate speed,low distortion, high resolution)
Function: stabilized voltage power-supply filtering of preceding stage
5.Original America ADI OP275G op-amp
Function: preceding stage amplification
6.Panasonic Output Relay
Function:Boot with mute protection, DC protection
7.Philips safety capacitor
Function:To prevent the self-excitation caused by long distance audio cable transmission
8.Taiwan X2 safety capacitor
Function: To prevent interference from electricity clutters
9. high-power soft boot NTC
Function: To Prevent the boot impact upon power grid
10. The whole machine all adopts pure copper cables with PTFE (Polytetrafluoroethylene) Insulationofacable
Function: Heat-resistance, strong current-resistance, Long-time oxidation-resistance Skytone I tech power amplifier will provide you:
1.Fantastic nice sound quality
2.Workable price
3.3 years warranty
Skytone audio amplifier provide following protection:
1. Soft start protection
2. Short circuit protection
3. DC protection
4. Limiting protection
5. Overheat protection
6. Input overload protection
7. Output overload protection
8. Output fading production
![]()
Customer feedback:
![]()
CE+ROHS certifications:
![]()
Package1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.
