| Prod Model: |
REIZ450 PRO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Amplifier Type: |
2 Channels Power Amplifier |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
450watts |
| Sensitivity(1W/1m): |
0.775V |
| Channels Number: |
2 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Amplifier Combined |
| Voltage: |
AC 220V or AC 110V |
| Usage: |
Professional Performance |
| Output Number: |
2 |
| Sound Channel: |
2 |
Product Description

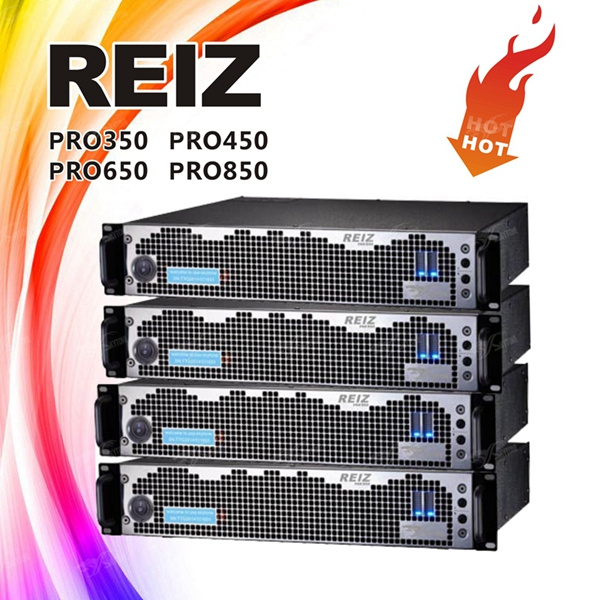

Skytone REIZ450 PRO Digital professional power amplifier
This series amplifier is the new designed amplifier of Skytone audio, it has digital electric circuit, with a super oxygen-free copper transformer inside, which keeps the amplifier more stable.
For inside componments, chooseing imported capacitors, which assured the fantasic nice sound.
2U install space with light weight.
Skytone 12 years experience provide you professional products and service.
Reiz 450 pa amplifier Features:1. LCD display: Can help you to check the amplifier temperature and how long time used.
2. Filtering power plug: Connecting wireless microphone, mixer, processor ect, have filtering function.
3. Volume control: Two channels can be controlled at same time.
4. Cables: Using Pure copper cable with Polytetrafluoroethene(PTFE) Insulationofacable, high temperature, resistance heavy current, Non- Oxidation for long time using.
5.Using Advanced Welding Procedure,preventing oxidation and poor connect, fuse for preventing DC overload
6.JICON large volume capacitor from listed state-owned enterprise, wide frequency
7.powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency
8.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
Reiz 450 audio amplifier specifications:| Technical Specification | REIZ450 |
| PMPO(peak ) | 4 ohms Bridge | 1974 |
| 8 ohms Bridge | 1316 |
| 4 ohms Stereo | 1350 |
| 8 ohms Stereo | 675 |
| Rated power(20Hz-20KHz) | 4 ohms Bridge | 1316 |
| 8 ohms Bridge | 878 |
| 4 ohms Stereo | 585 |
| 8 ohms Stereo | 450 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775v |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment according to chang
-ing temperature |
| Size(WXHXD) | 56cm X 51cm X14.5cm |
| Net Weight | 13.8kg |
| After-sales service | 1 years Warranty (non-artificial Damage) |
Product details:
Details informations for the componments:
1.Pure copper , high-power output inductor :
Function:Ensure output having a large dynamic range
2.High-class French Thomson feedback capacitor
Function:It is important for the subtleness and width of mid-high frequency .
3.Original On Semi compound zener-transistor
Function: stabilized voltage power-supply of preceding stage
4.ELNA DUOREX RJH hifi capacitor (purple body with gold letter, transparent sound, moderate speed,low distortion, high resolution)
Function: stabilized voltage power-supply filtering of preceding stage
5.Original America ADI OP275G op-amp
Function: preceding stage amplification
6.Panasonic Output Relay
Function:Boot with mute protection, DC protection
7.Philips safety capacitor
Function:To prevent the self-excitation caused by long distance audio cable transmission
8.Taiwan X2 safety capacitor
Function: To prevent interference from electricity clutters
9. high-power soft boot NTC
Function: To Prevent the boot impact upon power grid
10. The whole machine all adopts pure copper cables with PTFE (Polytetrafluoroethylene) Insulationofacable
Function: Heat-resistance, strong current-resistance, Long-time oxidation-resistancePackage1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.
