| Prod Model: |
MV-201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Style: |

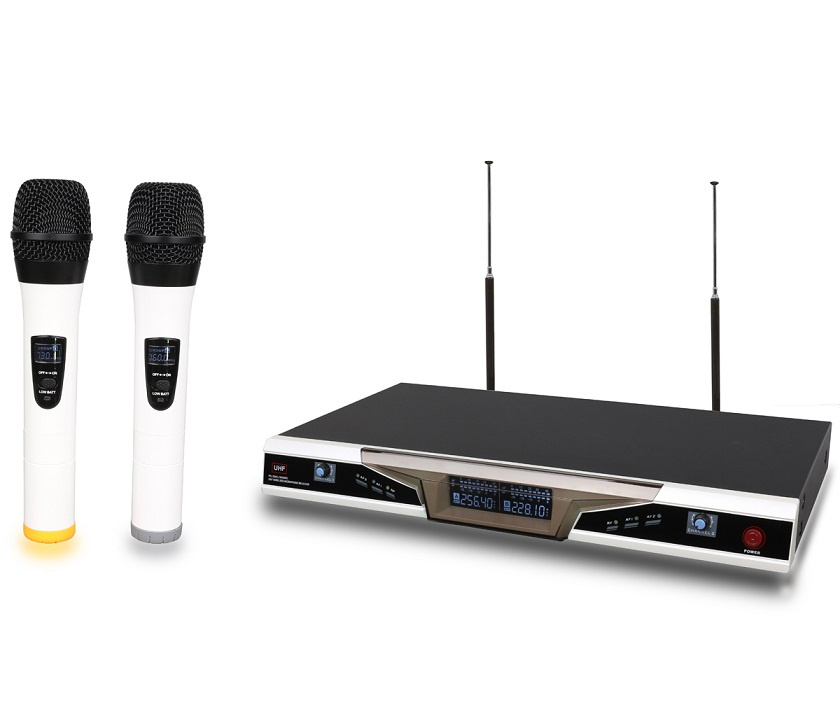

Handheld Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
VHF |
Product Description
System
(1) Frequency range: VHF 220-280MHz
(2) Frequency stability: 0.005%
(3) Frequency Accuracy: 5KHz
(4) Modulation: FM
(5) Maximum Deviation: 15KHz
(6) Audio Response: 40Hz-16KHz
(7) SNR: 80db
(8) Dynamic Range: 90db
(9) integrated distortion: 0.5%
(10) Operating range: 100 meters (no obstruction)
Receiver
(1) Receive Mode: Quartz crystal locked frequency control
(2) Receiver Sensitivity: 80db s / n (12dbu)
(3) Signal to Noise Ratio: 90db
(4) Audio Output Level: CHA + B unbalanced type 0 ~ 0.5V/5KΩ
CHA, CHB unbalanced type 0 ~ 0.5V/50KΩ
(5) Power: DC220V, DC110V 50Hz/60Hz (marked by the use case)
Transmitter
(1) RF output power: 30mW maximum
(2) clutter rejection: Greater than 45db carrier
(3) Antenna: Completely hidden
(4) Microphone: A single point of moving coil
(5) Battery: Standard 9V battery
(6) Battery consumption: About 22MA
(7) Battery life: Continuous use of more than 7 hours
(8) Weight: Approx 227gs
MineSound Electronics Co., Limited is a professional electronic equipments manufacturer devoting to designing, manufacturing, marketing and distributing professional electronics audio equipments, focusing on wired and wireless microphones, conference systems and instrument microphones etc.
Stable quality, rapid delivery, best quality control and high quality after service is always the foundation of our future develop direction.
We have built up the best market sales network, and got the high praise from all over the world. The Best market sensitivity assures our R&D department can meet with different demands of the market. We offer the best solution for the agents, distributors, projects synthesized dealer etc.
OEM and ODM business is also welcome.
