| Prod Model: |
MS-201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Handheld Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
Product Description

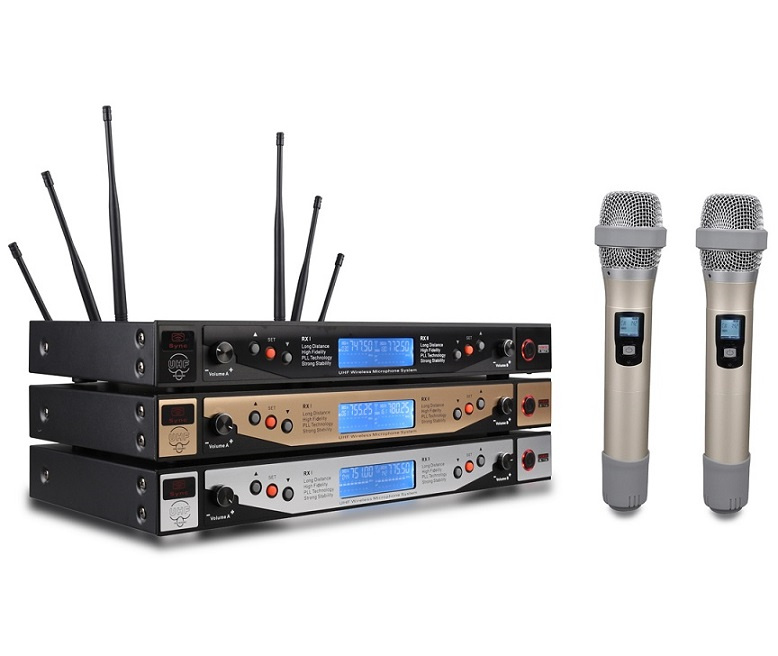

Model Name:MS-201 UHF dual channel wireless microphone
System Specification
Frequency Range: 610-950MHz
Modulation: Wide Band FM
Adjustable Range: 50MHz
Channel: 200
Band Width: 250 KHz
Frequency Stability: ±0.005%
Dynamic Range: 100dB
Max Deviation: ±45KHz
Frequency Response: 80Hz-18KHz (±3dB)
S/N: >105dB
THD: ≤0.5%
Working Temperature: -10ºC-+40ºC
Receiver:
Receiving Mode: Two superheterodyne
Medium frequency: The first medium frequency: 110MHz
The second medium frequency: 10.7MHz
Antenna jack: BNC / 50 ohms
Sensitivity: 12dBμv (80dBS/N)
Adjustable range for sensitivity: 12-32dBμv
Spurious suppression: ≥75dB
Max output Level: +10dBV
Transmitter
Output power: H (30mW), L (3mW)
Spurious suppression: -60dB
Power supply: AA battery * 2
Working Time: 30mW (10 hours), 3mW (15 hours)
MineSound Electronics Co., Limited is a professional electronic equipments manufacturer devoting to designing, manufacturing, marketing and distributing professional electronics audio equipments, focusing on wired and wireless microphones, conference systems and instrument microphones etc.
Stable quality, rapid delivery, best quality control and high quality after service is always the foundation of our future develop direction.
We have built up the best market sales network, and got the high praise from all over the world. The Best market sensitivity assures our R&D department can meet with different demands of the market. We offer the best solution for the agents, distributors, projects synthesized dealer etc.
OEM and ODM business is also welcome.
