| Prod Model: |
MS-T10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Handheld Microphone |
| Application: |
Meeting |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
Product Description

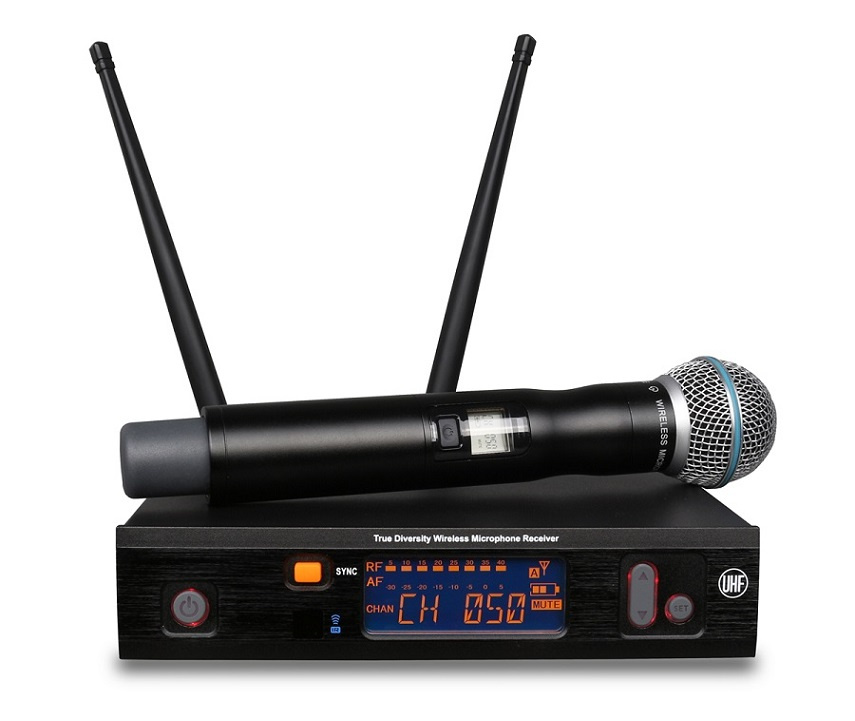

Model Name: MS-T10 Single Channel UHF Wireless Microphone with True Diversity
System Overview:
This professional wireless microphone system uses USA RF transmitting technology with features of high efficiency and low consumption, with ultra high sensitivity UHF receiver and PLL of more than 10ppm to lock frequency. With features of dynamic companding circuitry, image frequency rejection, double detecting squelch circuit, True Diversity receiving circuit, Switch Impact elimination circuit and anti feedback circuit etc., it adopts PC EDA, simulating assistant design online and with strict quality control, which ensures the excellent performance for each system.
System Features:
1. UHF 600-900MHz
2. Type: Single Channel True diversity Receiver and one Handheld Transmitter
3. With auto scan function, the system can select the current group's pure frequencies for customers and enable them to set up easily.
4. The receiver uses negative LCD display and the transmitter uses positive LCD display.
5. With infrared data synchronization function.
6. The system adopts low frequency pilot coding mute technology, different receiver has its own independent ID number, keeps the machine quiet when meeting interferences with the same frequencies, at the same time avoids sound degradation of SNR by the similar "low frequency pilot coding mute technology", especially suitable for places with complex frequencies, like KTV.
7. The system has two operating mode. One is group mode, enabling user to promptly select frequency from built-in frequency groups. The other is customer mode, you can select the frequency by yourself.
8. Transmitter's power is adjustable.
Technical Specification:
Receiver
Frequency range: 600~900MHz
Channel: 160
Working range: 150M
Band width: 25MHz
Sensitivity: -105
S/N: >105dB(A)
Distortion: <1%
Audio output level : 8dBu max
Power supply: 12-16V DC, Current 500mA, with external power supply
Handheld Transmitter
Frequency range: 600~900MHz
Band width: 50MHz
Harmonic rejection: >55dBc
Max. frequency deviation: ±48KHz
Frequency response: 50Hz~15KHz(-3dB)
S/N: >105dB(A)
Distortion: <1%
Power supply: 2 AA alkaline or rechargeable batteries
Battery life: >8H(alkaline cells)
Bodypack Transmitter
Frequency range: 600~900MHz
Band width: 50MHz
Harmonic rejection: >55dBc
Max. frequency deviation: ±48KHz
Frequency response: 50Hz~15KHz(-3dB)
S/N: >105dB(A)
Distortion: <1%
Power supply: 2 AA alkaline or rechargeable batteries
Battery life: >8H(alkaline cells)
MineSound Electronics Co., Limited is a professional electronic equipments manufacturer devoting to designing, manufacturing, marketing and distributing professional electronics audio equipments, focusing on wired and wireless microphones, conference systems and instrument microphones etc.
Stable quality, rapid delivery, best quality control and high quality after service is always the foundation of our future develop direction.
We have built up the best market sales network, and got the high praise from all over the world. The Best market sensitivity assures our R&D department can meet with different demands of the market. We offer the best solution for the agents, distributors, projects synthesized dealer etc.
OEM and ODM business is also welcome.
