| Prod Model: |
JPS-EF-47-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
SUS304/2b or Galvanized Steel |
| Outer Tank: |
Galvanized Sheet Painting |
| Circulation Type: |
Direct / Open Loop (Active) |
| Connection Type: |
Direct-Plug |
| Application: |
Water Heater |
| Pipe Material: |
Vacuum Tube |
Product Description

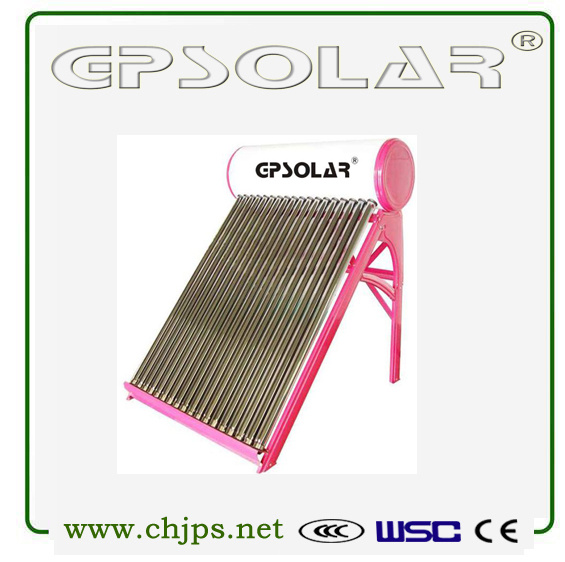

Solar hot water heater FEATURE:
1. Solar water heater with CE, CCC, ISO, SGS certificate
2. Special high quality Insulated material to reducing the heat loss rate
3. High quality copper coil for efficient heat transferring and long life span of the solar water heater
4. Exquisite workmanship to guarantee the decent appearance
5. Ng life span and no extra cost after installation
6. Easy opearation
NON-PRESSURIZED SOLAR WATER HEATER SPECIFICATIONS:
1) Model No.: JPS-EF-47-200(complete set)
2) Capacity Optional: 100L, 150L, 200L, 250L, 300L
3) Working temperature: 50-60celsius degree
4) Vacuum tube: D47, L1500mm
5) heat Absorption rate: 92%-96%
6)Vacuum tube cold resistance: -30
7) heat receiver area: 1.9M²
NON-PRESSURIZED SOLAR WATER HEATER PACKING:
1) Standard export packing
2) Special packing for sample
|
Type&specification |
JPS-EF-47/1500-2-16C |
JPS-EF- 47/1500-2-18C |
JPS-EF- 47/1500-2-20C |
|
Numbers of vacuum tubes |
16 |
18 |
20 |
|
Glass tube material |
borosilicate glass 3.3 |
|
Material selective absorber layer |
SS-C/Cu | Cu SS-ALN(H)/SS-ALN(L)/ALN |
Glass tube
(ext./int./wall thickness)(mm) |
47/37/1.6 |
47/37/1.6 |
47/37/1.6 |
|
Glass tube length(mm) |
1500 |
1500 |
1500 |
|
Distance between two tubes(mm) |
70 |
70 |
70 |
|
Volume(liters) |
90 |
101 |
112 |
|
Gross Weight(kg) |
29 |
31 |
32 |
|
Package Dimensions(LxWxD)(mm) |
1310x450x490 |
1450x450x490 |
1590x450x490 |
|
QTYin20GP/40GP/40HC(sets) |
54/115/133 |
41/89/101 |
44/95/107 |
Established in 2006, Zhejiang Jin PU Sen New Energy Technology Co., Ltd., is a science and technology enterprise that combines research, development, manufacture and marketing of solar thermal comprehensive. With registered capital of 20, 08 million, the research and development center of new energy enterprise was set up at the same year. In 2010, it was recognized as Hangzhou High and New Technology Enterprise and Hangzhou Eyas Project Enterprise. While the company is conducting self technology innovation, it also actively seeks long-term cooperation with large numbers of both domestic and foreign research institutes, and has established Fuyang Enterprise High-tech Research and Development Center and the Sino-America Enterprise High-tech Research and Development Center in succession, which enhances the company's continuity of research and development ability. At present, the company has owned 46 national patents, including 6 patents of invention.
The company mainly produces flat-plate solar water heaters, efficient micro-porous superconducting solar water heaters, vacuum tube collectors, heat pump-four dimensional integrated units, solar gas wall mounted integrated systems, solar steam generators, high efficient solar air-conditioners and other series products. Relying on our strong research and development strength, we have developed a series of efficient solar thermal comprehensive utilization products with wide applications, and have become one of the earliest domestic manufacturers that have realized the independent research, development and production of pressurized solar water heaters. The products are widely exported to the United States, Europe, Middle East, Southeast Asia, and other countries.
As "science and technology reshape life, and energy saving creates wealth", the company adheres to the enterprise tenet of "technology first, caring for people, green energy and benefiting the society", takes "to build a new energy industry and to create a technology-based brand" as the goal, and strictly enforces the ISO9001: 2008 quality system, the ISO14001CE and other international standards, striving to create a first-class "new energy" enterprise and create a new "green home full of golden sunlight".
