| Prod Model: |
JPS-FP1-SS-150A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Circulation Type: |
Direct / Open Loop (Active) |
| Connection Type: |
Direct-Plug |
| Heat Receiver Material: |
Bluetac |
| Collector Components: |
Flat-plate |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Certification: |
ISO9001 |
Product Description

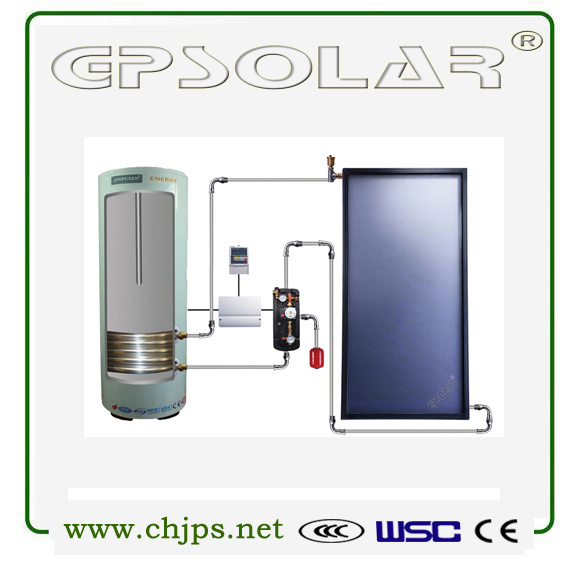

Solar Water Heating System for Home Appliance
1. Inner tank: 0.4mm-0.6mm thickness SUS 304-2B Stainless steel
2. Tank diameter: 470mm/480mm outer tank, 360mm/370mm inner tank
3. Flat plate: Bule titanium
4. Outer tank: 0.31mm-0.4mm thickness Wiredrawing Metal Plate/Fluorin Carbon Plate/Color Steel
5. Frame: 1.2mm thickness Aluminum Alloy/1.5mm thickness Galvanized Steel
6. The material of insulation: 55-60mm thickness Polyurethane
7. The reflector: Stainless steel /Aluminum plate
8. Working efficiency: >95%
9. Heat Preservation time: 72-96hours
10. Hail resistance: 25mm
11. Inlet/oulet size: 1/2'', 3/4''
12. Tank capacity: 100L/150L/200L/250L/300L/400L/500L/600L/700L/800~5000L
13. Air vent: 100% copper vent
Features of split pressure solar water heaters:
1. Pipeline is made of all red copper and conducted by heat transfer medium liquid.
2. Water does not flow in the vacuum tubes and is operated when confined.
3. The crust uses aluminum alloy mould material of high strength with airflow design.
4. It is furnished in good style.
5. Tank is equipped with electric water heater setting, automatic temperature controller.
6. With increased anode magnesium bar stick to prevent furring. It is the ture Two in One.
7. The insulating layer uses polyurethane bulk bubble.
8. It successfully carries out installation of separation according to fabricating yard and is harmoniously blended with architecture.
Established in 2006, Zhejiang Jin PU Sen New Energy Technology Co., Ltd., is a science and technology enterprise that combines research, development, manufacture and marketing of solar thermal comprehensive. With registered capital of 20, 08 million, the research and development center of new energy enterprise was set up at the same year. In 2010, it was recognized as Hangzhou High and New Technology Enterprise and Hangzhou Eyas Project Enterprise. While the company is conducting self technology innovation, it also actively seeks long-term cooperation with large numbers of both domestic and foreign research institutes, and has established Fuyang Enterprise High-tech Research and Development Center and the Sino-America Enterprise High-tech Research and Development Center in succession, which enhances the company's continuity of research and development ability. At present, the company has owned 46 national patents, including 6 patents of invention.
The company mainly produces flat-plate solar water heaters, efficient micro-porous superconducting solar water heaters, vacuum tube collectors, heat pump-four dimensional integrated units, solar gas wall mounted integrated systems, solar steam generators, high efficient solar air-conditioners and other series products. Relying on our strong research and development strength, we have developed a series of efficient solar thermal comprehensive utilization products with wide applications, and have become one of the earliest domestic manufacturers that have realized the independent research, development and production of pressurized solar water heaters. The products are widely exported to the United States, Europe, Middle East, Southeast Asia, and other countries.
As "science and technology reshape life, and energy saving creates wealth", the company adheres to the enterprise tenet of "technology first, caring for people, green energy and benefiting the society", takes "to build a new energy industry and to create a technology-based brand" as the goal, and strictly enforces the ISO9001: 2008 quality system, the ISO14001CE and other international standards, striving to create a first-class "new energy" enterprise and create a new "green home full of golden sunlight".
