| Prod Model: |

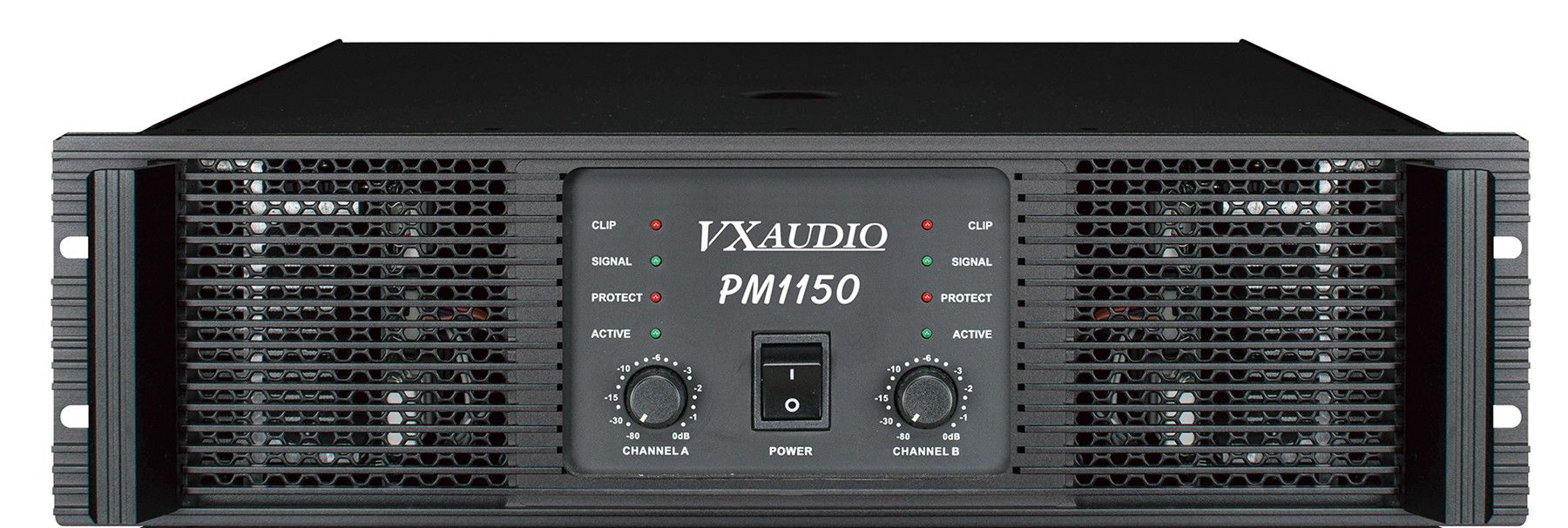

PM1150 |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
FEATURES
PM1150 series power amplifier use particular THE MIRRORED FRONTED POWER SUPPLY BRIDGE to make more less distortion and better sound, but cost morehigher.
Have perfect protect function, power on amortize, delay connect speaker, limiter function, over-currentprotect, overheat protect, short-cut protect and output DC protect etc.
Adopt two layers of the design of the power panel, the large volume of 24 12000 uf rapid xs capactitance.
64 Japan imported from Toshiba amplifier tube.
| Model | PM1150 |
| Stereo Power 8Ω | 2*1150W |
| Stereo Power 4Ω | 2*1800W |
| Stereo Power 2Ω | 2*2300W |
| BTL 8Ω | 3500W |
| BTL 4Ω | 4600W |
| Frequency Response | 5--50K±0.5dB |
| THD+N | <0.05%@8Ω 1kHz |
| S/N Ratio | >102dB |
| Slew Ratio | 50V/u S |
| Damping Factor | >400 |
| Crosstalk | >65dB@8Ω 1kHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 1V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 43KG |
| Dimensions | 655×585×200MM |
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
