| Prod Model: |
CA30 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
FEATURES
CA series targets at the high-end entertainment sound reinforcement.
Its high performance is based on its sufficient and powerful output capacity at 8ohms,4ohms,2ohms. Hi and lo pass filters in rear of amplifier. Highly efficient,reliable and no interference.
Convenient of use to connect with various sockets such as binding terminals,XLR and speakon. Two high speed cooling fans to allow extended use and adequate cooling.
Advanced protection circuit to protect from overheat, shout circuit DC shock,overheating,overloading and frequency.

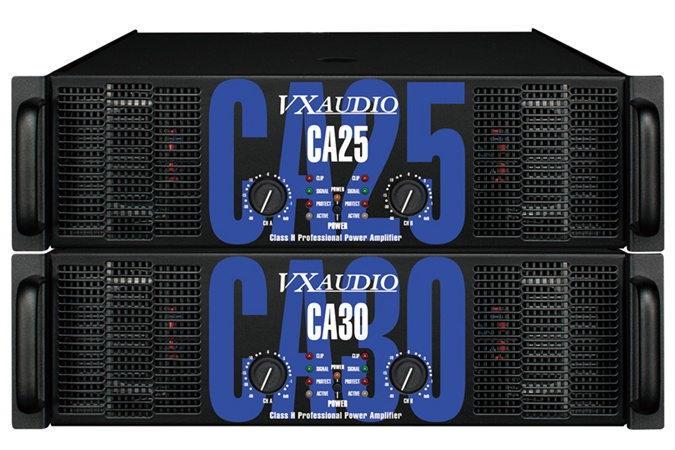

Model | CA25 | CA30 |
| Stereo Power 8Ω | 2*1350W | 2*1500W |
| Stereo Power 4Ω | 2*2050W | 2*2250W |
| Stereo Power 2Ω | 2*2700W | 2*3000W |
| 8Ω BTL | 4050W | 4500W |
| 4Ω BTL | 5400W | 6000W |
| Frequency Response | 20Hz - 20KHz +0/-0.3dB |
| THD+N | <0.03%@8Ω 1KHz |
| S/N Ratio | >102dB |
| Slew Ratio | 45V/u S |
| Damping Factor | >400 |
| Crosstalk | >70dB@8Ω 1KHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 46KG | 48KG |
| Dimensions | 655×585×200MM |
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
