Class Ab High Quality High Power Amplifier PA1.3
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
| Prod Model: |
PA1.3 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description
PA1.3
FeaturesPA1.3 series power amplifier use particular THE MIRRORED FRONTED POWER SUPPLY BRIDGE to make more less distortion and better sound, but cost morehigher.
Have perfect protect function, power on amortize, delay connect speaker, limiter function, over-currentprotect, overheat protect, short-cut protect and output DC protect etc.

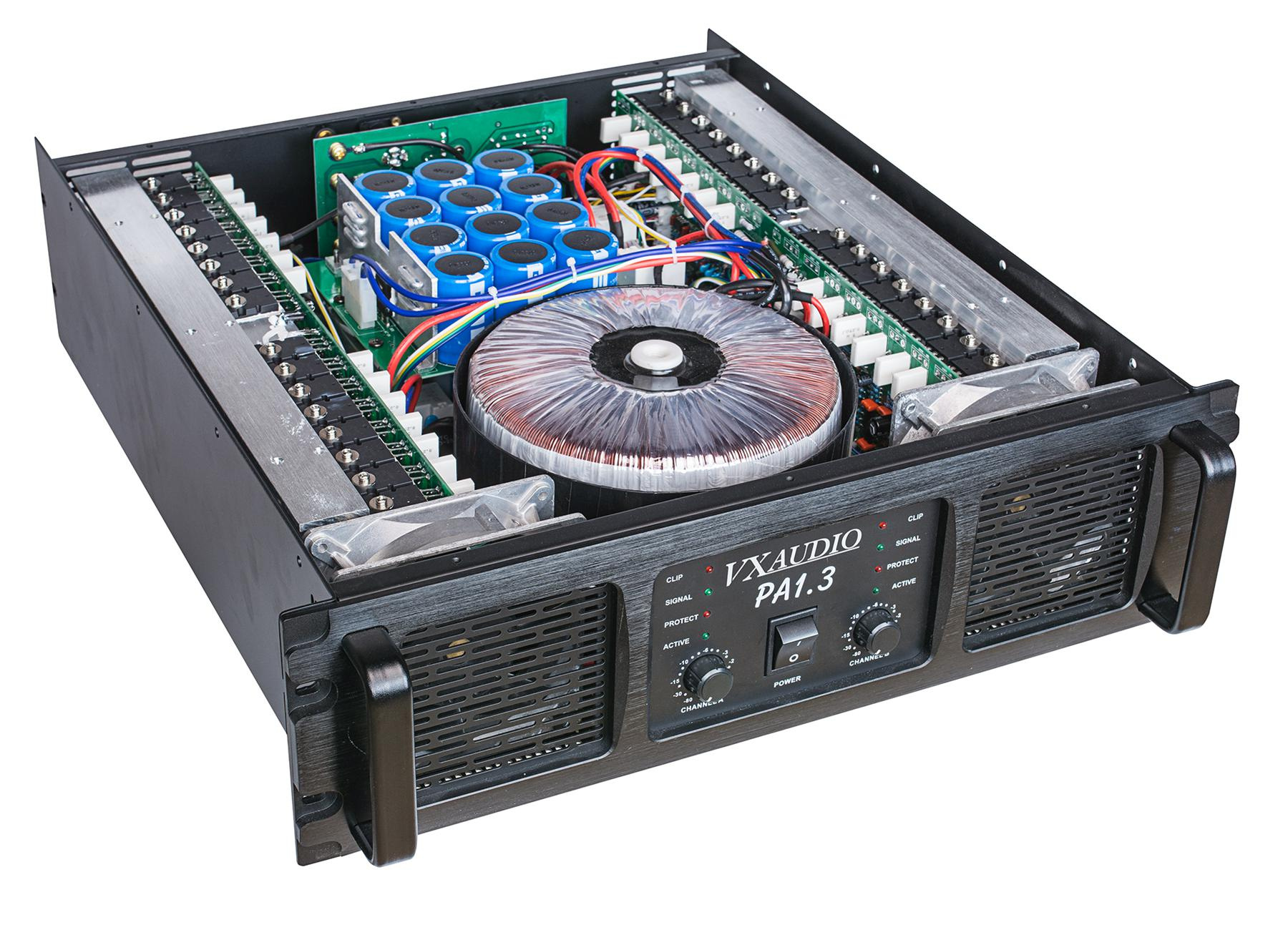

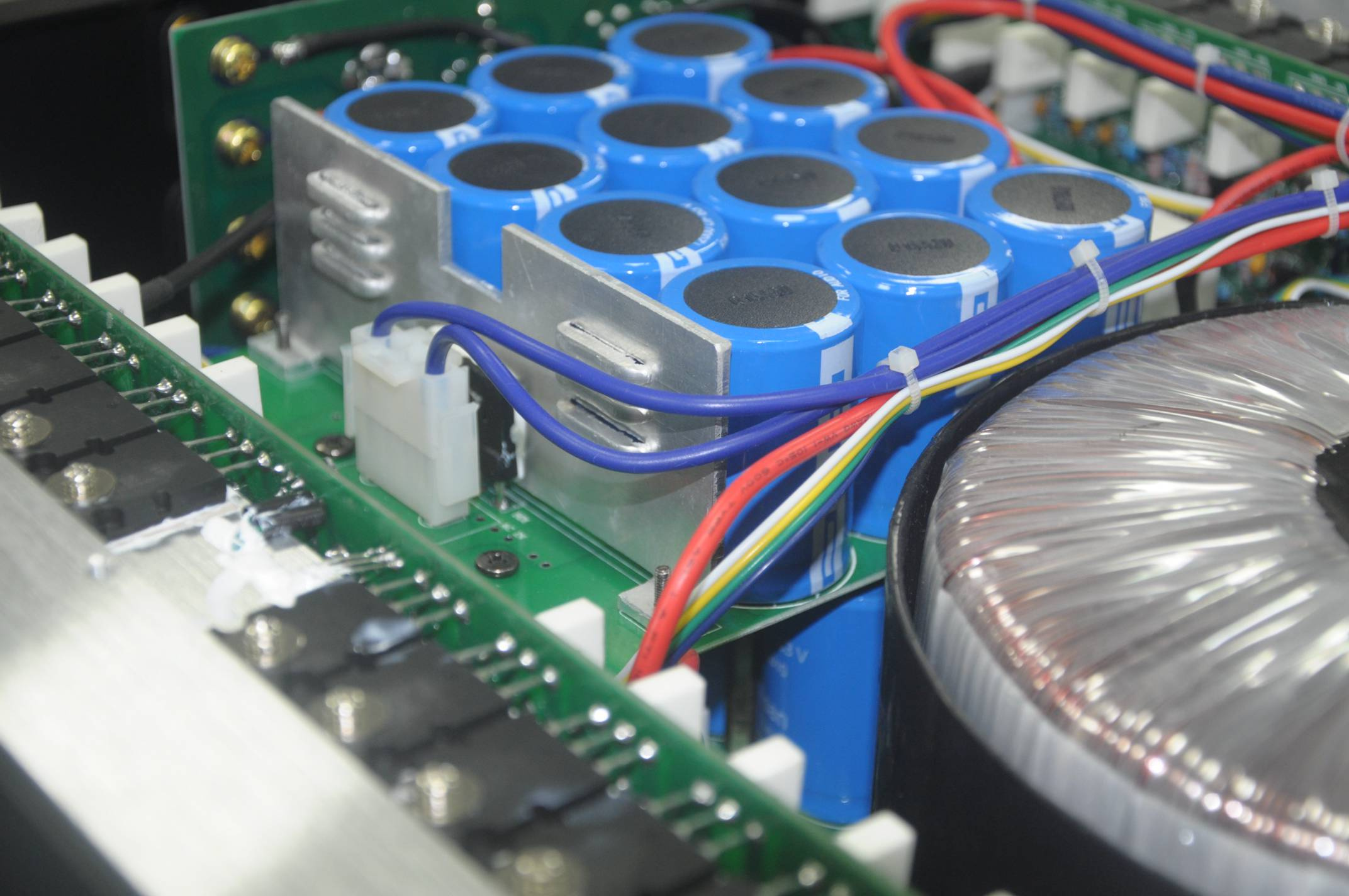

Adopt two layers of the design of the power panel, the large volume of 24 12000 uf rapid xs capactitance.
64 Japan imported from Toshiba amplifier tube. Specification | Model | PA1.3 |
| Stereo Power 8Ω | 2*1350W |
| Stereo Power 4Ω | 2*2100W |
| Stereo Power 2Ω | 2*2600W |
| BTL 8Ω | 4000W |
| BTL 4Ω | 5200W |
| Frequency Response | 5--50K±0.5dB |
| THD+N | <0.05%@8Ω 1kHz |
| S/N Ratio | >102dB |
| Slew Ratio | 50V/u S |
| Damping Factor | >400 |
| Crosstalk | >65dB@8Ω 1kHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 1V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 43KG |
| Dimensions | 655×585×200MM |

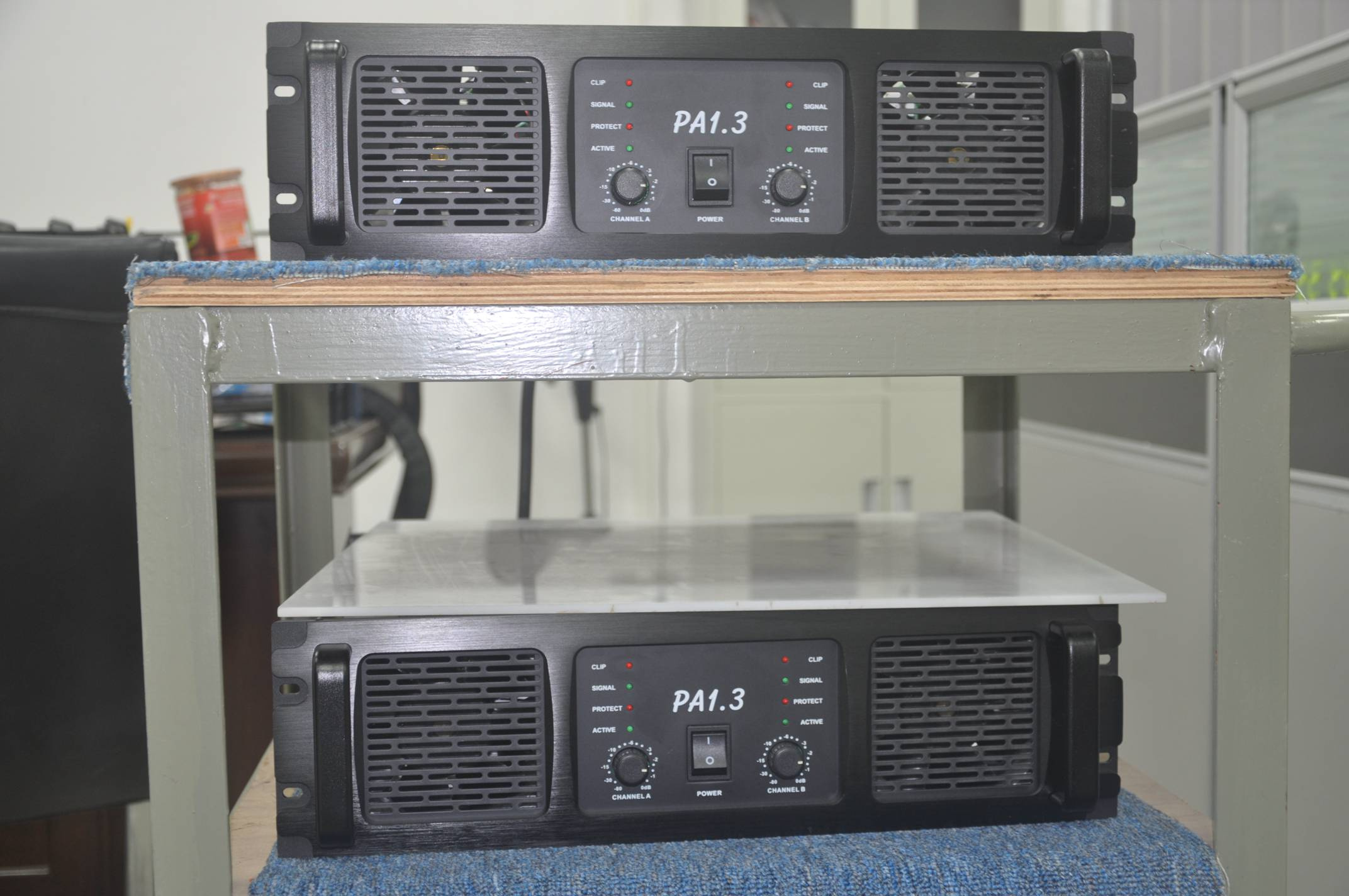

Products Display
![]()
![]()
![]()
![]()
