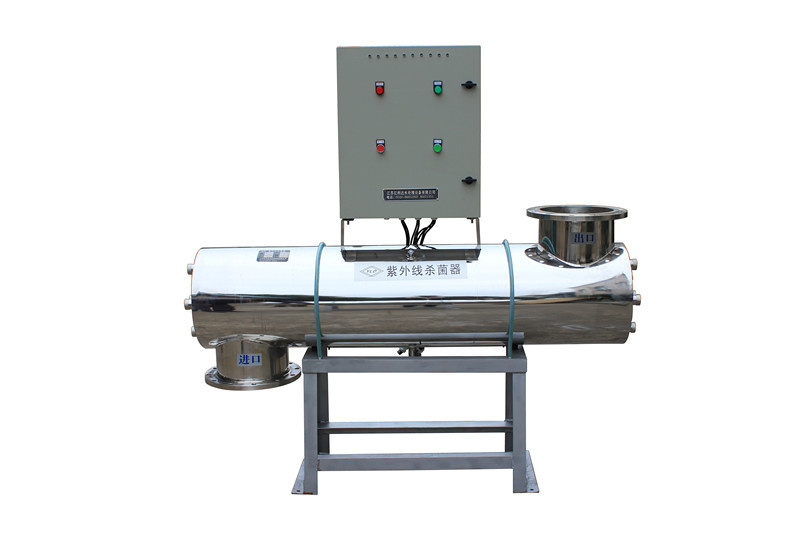

Ultraviolet Filter UV Water Sterilizer Purifier

Prod Model:	YLC-5000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
UV Light:	UV-C 254nm Wavelength
Tube:	Quartz Tube
Water Inlet Hardness:	Less Than 120mg/Liter
Water Inlet Turbidity:	Less Than 1 Ntu
Water Inlet Iron Content:	Less Than 0.3 Mg/Liter
Water Inlet Manganese Content:	Less Than 0.05 Mg/Liter
Cleaning Model:	Hand-Cleaning, Rod Cleaning, Automatic Motor
Lifespan Of UV Lamp:	9000 to 12000 Hours
Control System:	Control Box, PLC, Remote Control, etc
Water Output:	1 to 500 Cubic Meter Per Hour
Type:	Lightwave Disinfection
Certification:	SGS
Electric Tension:	220V
LCD Display:	With LCD Display
Ultra High Temperature Alarm:	Ultra High Temperature Alarm
Sterilization Information Recording And Printing:	Sterilization Information Recording and Printing
Material:	Stainless Steel
Theory:	UV Light Sterilization

Product Description

UV Sterilizers

Introduction
A UV sterilizer is used to control infections by stopping the spread of microorganisms from one fish/coral/invertebrate to another through the water. It is also used in pond applications to control free-floating algae. When operated correctly, free-floating microorganisms will be killed by the UV light. Note that the organisms must be in the water that flows to the UV sterilizer. The UV light has no residual effect and will not kill organisms attached to fish (e.g., adult stage of ich) or rocks (e.g., algae).
Working principle
The UV sterilizer utilizes a germicidal fluorescent lamp that produces light at a wavelength of approximately 254 nanometers (253.7 Angstroms). The water with the bacteria/algae passes over the bulb (or around the bulb if a quartz sleeve is used) and is irradiated with this wavelength. As the light penetrates the bacteria/algae, it mutates the DNA (genetic material), preventing growth/multiplication of the organism.
Application
1.Food processing industry, including juices, milk, drinks, beer, practical oil  and canned food.
2.Electronic industry.
3.Hospitals, various laboratory and high levels of pathogenic body water disinfection.
4.Households building, residential, office buildings, hotels, restaurants, water factories.
5.Purification and disinfection of shellfish, fish cleaning and disinfection
6.Military camp, field water supply system
7.Urban wastewater disinfection.
8.Swimming pool, other recreational water disinfection
9.Thermal power, nuclear power plant  industrial, central air conditioning system cooling water.
10.Biological, chemical and pharmaceutical, cosmetics for the production of cooling water.
11.Sea water, fresh water breeding, aquaculture  water
12.Agricultural water disinfection
UV specification
Product application
Ultraviolet light treatment is a widely recognized and proven method of disinfection of water and has several advantage over other disinfection methods such as chlorination, ozonation, etc.UV light does not add anything to the water ,such as ,undesirable color ,odor , taste , or flavor ,nor does it generate harmful byproducts. It adds only energy in the UV radiation. Also, UV disinfection requires only a fraction of the contact times required by other disinfection methods. It is fast, efficient, effective, economical and environmentally-friendly.

Principle of Operation
UV water disinfection system design has been carefully conceived to provide adequate germicidal dosage throughout the disinfection chamber. The dosage, as it applies to UV disinfection, is a function of time and the intensity of UV radiation to which the water is exposed. Exposure time is related to the flow rate, the higher the flow rate, the lower the exposure time or the lower the flow rate, the higher the exposure time. The UV intensity is the amount of energy, per unit time, emitted by germicidal lamp. The Dosage is the product of UV intensity and the exposure time.

Points to ponder about UV Sterilizers
Most effective when run 24/7.
Most effective if the water is clear.
Most effective if the sterilizer bulb is new, or replaced regularly (at least every 6-8 months).
Most effective if the light penetrates less than one inch of water.
Effectiveness can be hindered if the water passes to fast past the UV sterilizers bulb
Most effective if the exposure time of the water to the UV light is longer than one second.
The effectiveness of the UV light can be hindered if there is light blockage, i.e. a salt encrusted bulb.

It can help to prevent future water borne pathogen reoccurrences, once the initial problem as been completely eradicated from the aquarium.



Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added measures to improve water quality to treatable levels. If, for any reason, it is believed the UV transmission is not satisfactory, contact the factory.
UV wavelength (nm)

                 DOSAGE is the product of intensity & time
dosage=intensity*time=micro watt/cm2*time=microwatt-seconds per square centimeter
                              (μW-s/cm2)
               Note:1000μW-s/cm2=1mj/cm2(milli-joule/cm2)


 Technical parameters sheet

model	capacity	Power	inlet-outlet	reactor	panel	Anchor	G weight
	m³/hour	watt	mm	L×W×H		screw	Kg
YLCn-005	0.3	16	1/2″	30×6×11			5
YLCn-008	1	25	1/2″	47×6.3×11			10
YLCn-050	2	40	1″	100×9×20	Φ8.9×25 (d×L)	69×4×Φ1	25
YLCn-150	6	80	1+1/4″	100×11×23		×Φ1	30
YLCn-200	8	120	1+1/2″	100×15.9×30	Φ8.9×45 (d×L)	69×7×Φ1	35
YLCn-300	12	160	2″	100×15.9×32		69×7×Φ1	40
YLC-050	2	40	DN25/1″	100×8.9×30	25×30×12 (W×H×D)	60×4×Φ1	45
YLC-150	6	80	DN32/11/4″	100×10.8×30		60×4×Φ1	50
YLC-200	8	120	DN40/11/2″	×		60×7×Φ1	60
YLC-300	12	160	DN50/2″	100×15.9×40		×Φ1	70
YLC-360	15	200	DN65/21/2″	100×15.9×40		60×7×Φ1	120
YLC-500	20	240	DN65/21/2″	×		60×11×Φ1.2	130
YLC-600	25	280	DN80/3″	100×21.9×50		60×11×Φ1.2	140
YLC-700	30	320	DN100/4″	100×21.9×50		60×11×Φ1.2	150
YLC-1000	40	360	DN100/4″	100×21.9×50		×Φ1.2	160
YLC-1200	50	400	DN125/5″	100×21.9×50		60×11×Φ1.2	180
YLC-1500	60	420	″	×		120×16×Φ1.4	210
YLC-2000	80	560	DN150/6″	170×27.3×57		120×16×Φ1.4	220
YLC-2500	100	700	DN150/6″	170×27.3×57	60×128×30 ×	120×16×Φ1.4	275
YLC-3000	125	840	DN150/6″	170×27.3×57		120×16×Φ1.4	300
YLC-4000	150	1120	DN200/8″	173×32.5×65		120×20×Φ1.6	325
YLC-5000	200	1400	DN200/8″	173×37.7×72		120×22×Φ1.6	350
YLC-7000	300	2100	″	175×42.6×80		120×24×Φ2.0	400
YLC-10K	400	2520	DN250/10″	176×52.9×95	60×150×40 ×	120×22×Φ2.2	475
YLC-15K	600	3080	DN300/12″	176×78×110		120×32×Φ2.4	600
YLC-20K	800	3920	″	Designated	Designated	Designated	Designated
YLC-25K	1000	4760	DN350/14″	Designated	Designated	Designated	Designated
