| Prod Model: |
YLC-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bactericidal Efficienc: |
98% Kill Total Coliforms |
| Material: |
Stainless Steel Ss304, Ss316 |
| Flow Rate: |
25m3/H |
| Inlet And Outlet: |
Dn80mm |
| Lifespan Of UV Lamp: |
9000-12000 Hours |
| Interface Type: |
Flange or Thread |
| Alert System For Lamp: |
One Set |
| System Working Pressure Resistance: |
(0.6 MPa)6kg/Cm2 |
| Raw Water Supplying: |
Swimming Pool |
| Brand Of Ballast: |
Beasun |
| Voltage: |
110V/220V/380V |
Product Description

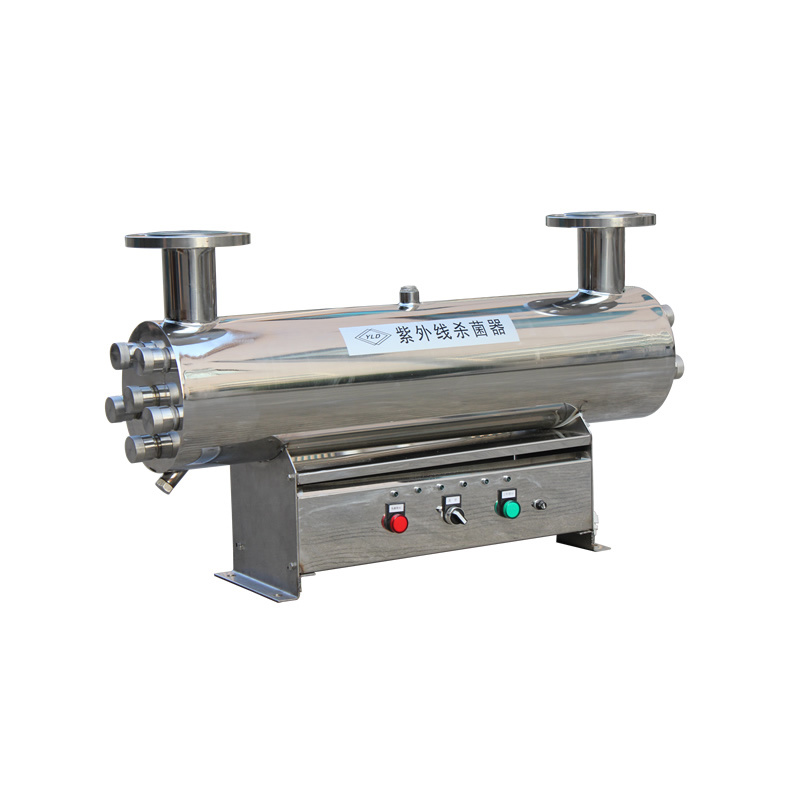

Ultraviolet Lamp Water Purifier With LED Warning Light
UV systems can destroy 99.99% of harmful microorganisms without adding chemicals or
changing your water's taste or odor?! UV has proven to be a quick, reliable and cost
effective method of disinfecting water for both point of use and point of entry.

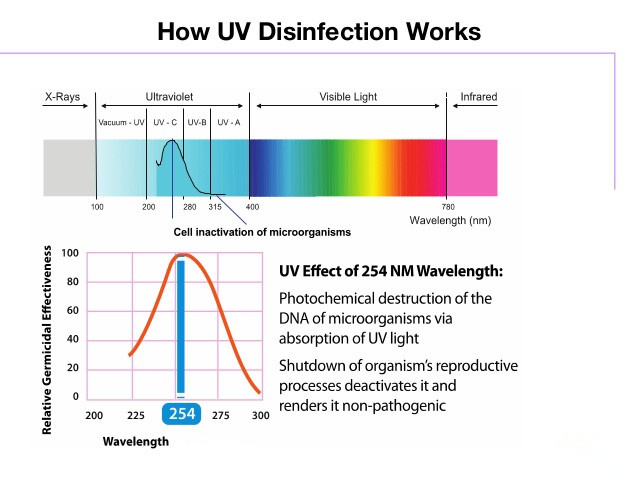

Ultraviolet (UV) is a safe, clean, easy-to-maintain method of assuring that water is free
of bacteria. UV Water Purification uses Ultraviolet light, just like sunlight, to kill
micro-organisms that may be in the water. It is a proven technology that has no significant
drawbacks. In some applications, its initial cost is a bit more than chlorination, but
because of its low operating cost, it quickly pays for itself. It is environmentally
friendly and essentially trouble-free. Most ultraviolet water treatment systems require
only an annual change of lamp - as simple as changing a light bulb - and a periodic
change of the filter cartridge.
Advantages of UV
There are some very important reasons why both homeowners and municipalities are choosing
UV technology to treat their water.Highly effective: For over 25 years, UV technology has
been trusted as a safe, cost-effective way to purify water and eliminate harmful
microorganisms. It is a proven EPA endorsed technology that is currently being used by
thousands of cities, bottled water manufacturers and homeowners around the world.Chemical
free: UV provides water purification without the addition of harmful chemicals such as
chlorine. It also avoids the potential of generating harmful chemical disinfection by
products. Recent EPA guidelines are forcing cities across the United States to reduce or
eliminate the use of chlorine for exactly this reason.Taste & odor free: UV does not change
the taste, odor or color of the water.More effective than chlorine: Unlike chlorine, UV
systems are effective against both Cryptosporidium and Giardia.Compact and easy to
maintain: UV systems are capable of treating a single faucet or an entire home in a minimal
amount of space with the only maintenance being an annual lamp and filter replacements.
AAA:
01.What is the source of raw water to be treated?
--is it underground water or well water?or river water ,other source?
02.What is the capacity(m3/hour) you required for this sterilizer?
--most IMPORTANT requirement.
03.What will the treated water be used for?
--for human drinking or industry purpose?
04. What is the power supply in your country?
--220V 50Hz?
Technical parameters:| model | Processing capacity (Ton/Hour) | power (W) | inlet and outlet
(inch) | working pressure (Kg/cm 2 ) | malfunction alert for UV lamp | reactor dimension (cm) L×W×H | dimension of panel(cm) | anchor bolt (cm) | overall weight (Kg) |
| YLCn-005 | 0.3 | 16 | 1/2" | 6 | matched | 30×6×11 |
|
| 5 |
| YLCn-008 | 1 | 25 | 1/2" | 6 | matched | 47×6.3×11 |
|
| 10 |
| YLCn-050 | 2 | 40 | 1" | 6 | matched | 100×9×20 | Φ8.9×25
(diameter×length) | 69×4×Φ1 | 25 |
| YLCn-150 | 6 | 80 | 1+1/4" | 6 | matched | 100×11×23 | 69×4×Φ1 | 30 |
| YLCn-200 | 8 | 120 | 1+1/2" | 6 | matched | 100×15.9×30 | Φ8.9×45
(diameter×length) | 69×7×Φ1 | 35 |
| YLCn-300 | 12 | 160 | 2" | 6 | matched | 100×15.9×32 | 69×7×Φ1 | 40 |
| YLC-050 | 2 | 40 | DN25/1" | 6 | matched | 100×8.9×30 | 25×30×12
(L×H×w) | 60×4×Φ1 | 45 |
| YLC-150 | 6 | 80 | DN32/1 1/4 " | 6 | matched | 100×10.8×30 | 60×4×Φ1 | 50 |
| YLC-200 | 8 | 120 | DN40/1 1/2 " | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 60 |
| YLC-300 | 12 | 160 | DN50/2" | 6 | matched | 100×15.9×40 | 60×7×Φ1 | 70 |
| YLC-360 | 15 | 200 | DN65/2 1/2" | 6 | matched | 100×15.9×40 | 50×78×25
(L×H×W) | 60×7×Φ1 | 120 |
| YLC-500 | 20 | 240 | DN65/2 1/2" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 130 |
| YLC-600 | 25 | 280 | DN80/3" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 140 |
| YLC-700 | 30 | 320 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 150 |
| YLC-1000 | 40 | 360 | DN100/4" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 160 |
| YLC-1200 | 50 | 400 | DN125/5" | 6 | matched | 100×21.9×50 | 60×11×Φ1.2 | 180 |
| YLC-1500 | 60 | 420 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 210 |
| YLC-2000 | 80 | 560 | DN150/6" | 6 | matched | 170×27.3×57 | 120×16×Φ1.4 | 220 |
| YLC-2500 | 100 | 700 | DN150/6" | 6 | matched | 170×27.3×57 | 60×128×30
(W×H×T)
| 120×16×Φ1.4 | 275 |
| YLC-3000 | 125 | 840 | DN150/6" | 6 | matched | 173×27.3×57 | 120×16×Φ1.4 | 300 |
| YLC-4000 | 150 | 1120 | DN200/8" | 6 | matched | 173×32.5×65 | 120×20×Φ1.6 | 325 |
| YLC-5000 | 200 | 1400 | DN200/8" | 6 | matched | 173×37.7×72 | 120×22×Φ1.6 | 350 |
| YLC-7000 | 300 | 2100 | DN250/10" | 6 | matched | 175×42.6×80 | 120×24×Φ2.0 | 400 |
| YLC-10K | 400 | 2520 | DN250/10" | 6 | matched | 176×52.9×95 | 60×150×40
(W×H×T) | 120×28×Φ2.2 | 475 |
| YLC-15K | 600 | 3080 | DN300/12" | 6 | matched | 176×78×110 | 120×32×Φ2.4 | 600 |
| YLC-20K | 800 | 3920 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed | confirmed |
| YLC-25K | 1000 | 4760 | DN350/14" | 6 | matched | confirmed | confirmed | confirmed |
