| Markets: |
North America,South America |
| Directivity: |
Uni-direction |
| Signal Transmission: |
Wireless |
| Transducer Principle: |
Electromagnetic Microphone |
| Application: |
Amplify |
| Sound Field Force: |
UHF |

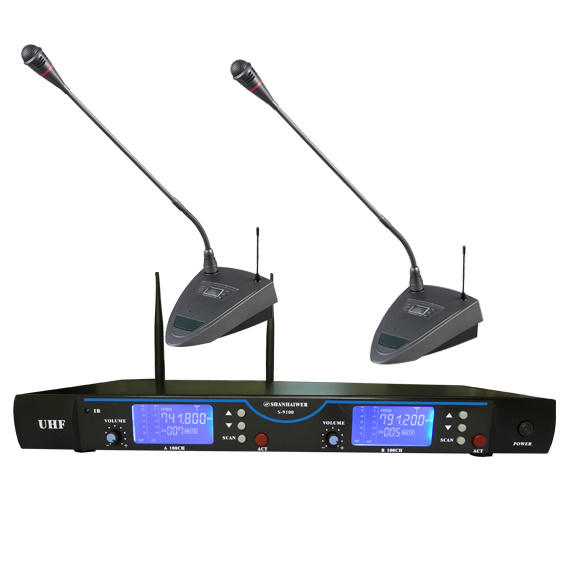

Product Description
Features:
1. UHF band (740-790 MHz) frequency with 100 channels with PLL synthesized control.
2. "ACT" (Automatic Channel Targeting) channel of set-up technology, only you put the transmitter aim to the ACT LED on the receiver, it can be automaticly search the channel. "ACT"
3. Two microphone channels with individual volume controls
4. Two Independent XLR Balanced Outputs
5. One 1/2" phone jack mixed output and one XLR jack mixed output
6. LCD display panel on transmitters and receiver show RF/AF and Channel.
7. Rugged 1RU metal receiver chassis.
8. Still make an uproar adopt direct Frequently, winner, noise triple Inspection
9. Transmitter may be used mutually
10. Transmitter has statement indicating function and mute button
11. Operating range up to 100meters
12. DC 12V adaptor supplys power(Adaptor with CE certificate).
Specification
1. Frequency Range: UHF 740-790MHz
2. Modulation Mode: FM
3. Available Band Width: 50MHz.
4. Channel: 2X100
5. Frequency stability: ± 0.005%
6. Audio Dynamic Range: >105dB
7. Max. Deviation: ± 45kHz
8. Total Harmonic Distortion: ≤ 0.5%
9. Frequency Response: 60Hz-18kHz(± 3dB)
10. Spurious Emission: >105 dB
11. Maximum Distance: 100m.
12. Operating Temperature: -10° C_+40° C
Receiver
1. Power supply: DC 12V/ 850mA
2. Power consumption: 3W
3. Sensitivity: 12dBµ V (80DBS/N )
4. Audio output level: Mix: 0~200MV, Separate, 0~400mV
5. Dimension: 420 x 210 x45mm(L. W. H).
6. Weight: 1748g.
Transmitter
1. Output power: High: 30mW; Low: 3mW.
2. Battery: 3V(1.5V AA× 2)
3.3. Battery Life: High: >10 hours; Low: >15 hours
Standard features
1. Receive: 1PC
2. Meet ing Transmitter: 2PC
3. Receiv ant: 2PC
4. Transmitter ant: 2PC
5.1.5V AA battery: 4PC
6. Audio cable: 1PC
7. Manual: 1 PC
8. Color box: 1PC
Packaging
1. G. W(Kgs)/CTN: Meeting(22.1kg)
2. CTN SIZE(L. W. H): 56X32X56cm
3. PCS/CTN: 5PCS.
