| Markets: |
North America,South America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Sound Field Force: |
Pressure Type |
| Directivity: |
Uni-direction |
| Signal Transmission: |
Wireless |
| Transducer Principle: |
Semiconductor Microphone |

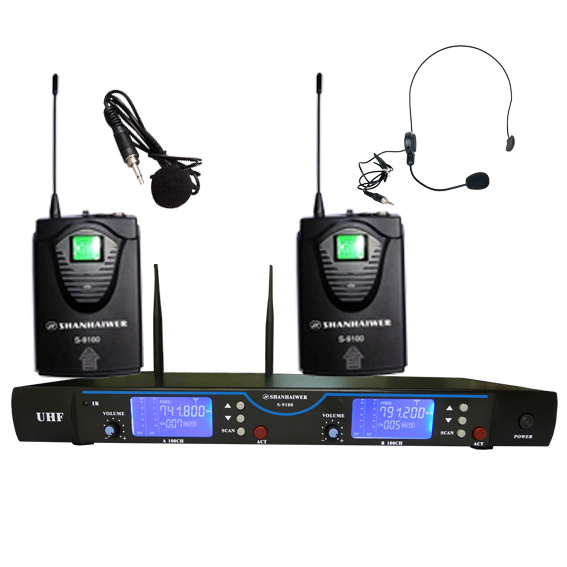

Product Description
1. UHF band (740-790 MHz) frequency with 100 channels with PLL synthesized control.
2. "ACT" (Automatic Channel Targeting) channel set-up technology, only you put the transmitter aim to the ACT LED on the receiver, it can be automatic searched the channel. "ACT"
3. Two microphone channels with individual volume controls
4. Two Independent XLR Balanced Outputs
5. One 1/2" phone jack mixed output and one XLR jack mixed output
6. LCD display panel on transmitters and receiver show RF/AF and Channel.
7. Rugged 1RU metal receiver chassis.
8. Still make an uproar adopt direct Frequently, winner, noise triple Inspection
9. Transmitter may be used mutually
10. Transmitter has statement indicating function and mute button
11. Operating range up to 100m
12. DC 12V adaptor supply power(Adaptor with CE certificate).
Specification
1. Frequency Range: UHF 740-790MHz
2. Modulation Mode: FM
3. Available Band Width: 50MHz
4. Channel: 2X100
5. Frequency stability: ± 0.005%
6. Audio Dynamic range: >105dB
7. Max. Deviation: ± 45kHz
8. Total Harmonic Distortion: ≤ 0.5%
9. Frequency response: 40Hz-16kHz(± 3dB)
10. Spurious Emission: >105 dB
11. Maximum Distance: 100m
12. Operating Temperature: -10° C_+40° C
Receiver
1. Power supply: DC 12V/ 850mA
2. Power consumption: 3W
3. Sensitivity: 12dBµ V (80DBS/N )
4. Audio output level: Mix: 0~200MV, Separate, 0~400mV
5. Dimension: 420 x 210 x45mm(L. W. H).
6. Weight: 1748g
Transmitter
1. Output power: High: 30mW; Low: 3mW
2. Battery: 3V(1.5V AA× 2)
3. 3. Battery Life: High: >10 hours; Low: >15 hours
Standard features
1. Receive: 1PC
2. Handheld Transmitter or waist Transmitter: 2PC
3. Receive ant: 2PC
4. 1.5V AA battery: 4PC
5. Audio cable: 1PC
6. Manual: 1 PC
7. Color box: 1PC
Packaging
1. G. W(Kgs)/CTN: Plastic hand-held(16.35kg); Metal hand-held(16.48kg)Waist(16.6kg), meeting(17.65kg)
2. CTN SIZE(L. W. H): 56X32X56cm
3. PCS/CTN: 5PCS
Chuang Da Digital Sound Factory Co., Ltd. is located at High-new Industrial Park of Jiangmen City, which is a hub for famous 5 towns in the Pearl River Delta of Guangdong Province, China. Jiangmen is a famous overseas Chinese hometown and the very first aeroplane designer in China, Mr. Feng Ru was just born here. Jiangmen nowadays has become a predominant microphone manufacturing base in the nation and it boasts easy transportation means as Guangzhou, Hong Kong, and Macao are all in the neighborhood.
From initiating, the company was focused on R&D, manufacturing, and distributing for microphone, audio equipment, Electronic and electrotechnical products, LED lamp ornaments, electric hardware. As a Hi-tech company, with concept of pioneering & innovation, the company has turned from a simple electronics manufacturer to a modern company with advanced precise inspection instruments to control the production line. We are looking forward to cooperation with OEM and all guests from all circles around the world are welcome.
